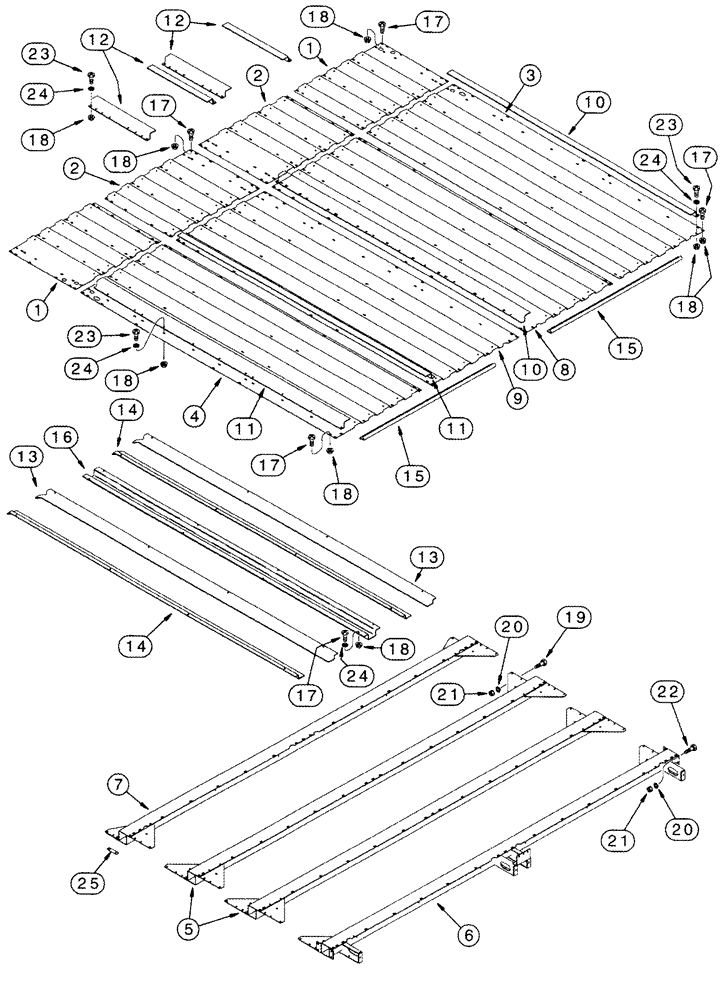

Запчасти Case IH 2555 (09D-13) - BASKET, FLOOR (16) - BASKET

REF

INSTRUCTION

Basket, Complete, Includes 1 - 25

1шт.

1

1260260C1

PANEL

Outer, Short

2шт.

2

1260274C1

PANEL

Inner, Short

2шт.

3

1260269C2

PANEL

Inner, Front

1шт.

4

1260270C2

PANEL

Inner, Rear

1шт.

5

248439A1

SUPPORT

Center

2шт.

6

248441A1

SUPPORT

Right Hand

1шт.

7

248440A1

SUPPORT

Left Hand

1шт.

8

1262484C2

PANEL

Inner, Center, Front

1шт.

9

1262485C2

PANEL

Inner, Center, Rear

1шт.

10

1270076C1

GUIDE

Front

2шт.

11

1270077C1

GUIDE

Rear

2шт.

12

1270078C1

GUIDE

Short

4шт.

13

1339112C1

ANGLE

Lower Front

2шт.

14

1339113C1

ANGLE

Lower Rear

2шт.

15

1278298C1

GUIDE

2шт.

16

1278058C1

SUPPORT

Center

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

24

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

25

247602A1

SPACER

4шт.
