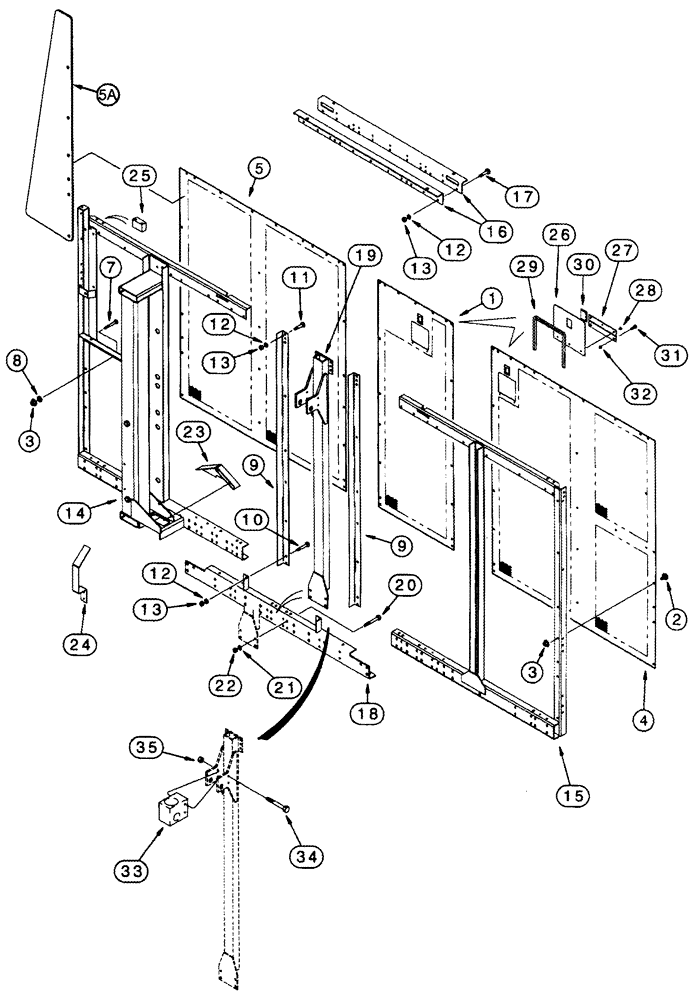

Запчасти Case IH 2555 (09D-11) - BASKET, REAR (16) - BASKET

REF

INSTRUCTION

Basket, Complete, Includes 1 - 35

1шт.

1

244597A2

COVER

Screen, Center

1шт.

2

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

244595A2

COVER

Screen, Left Hand

1шт.

5

244596A3

COVER

Screen, Right Hand

1шт.

5a

316379A1

FLAP

Basket Door, Side

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

Not Illustrated

1шт.

6a

488837C1

SPRING NUT

5/16, Not Illustrated

1шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

9

1260162C1

SUPPORT

2шт.

10

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

231818A5

END

Left Hand

1шт.

15

231820A4

END

Right Hand

1шт.

16

231823A3

ANGLE BAR

Tie

2шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

18

1260318C3

CONDUIT

Tie

1шт.

19

246970A3

SUPPORT

Basket Lift

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

1988661C1

GUARD

Rear, If Used

1шт.

24

1984211C1

GUIDE

Basket Door, Lower Inner

1шт.

REF

INSTRUCTION

Basket, Continued From Previous Page

1шт.

25

222680A2

GUIDE

Basket Door, Upper Corner

8шт.

1982665C2

COVER ASSY

Access, Inc. 26 - 29

2шт.

26

1982666C2

COVER

1шт.

27

1982668C1

HINGE

1шт.

28

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

3шт.

29

1994969C1

SEALING STRIP

450 mm (17-3/4 in), Cut From 1994968C1

1шт.

30

1982673C1

LATCH

Cover

2шт.

31

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

33

196534A3

GUIDE

Lift Cylinder

1шт.

34

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

2шт.

35

231-4116

NUT,3/8"-16, GB

2шт.
