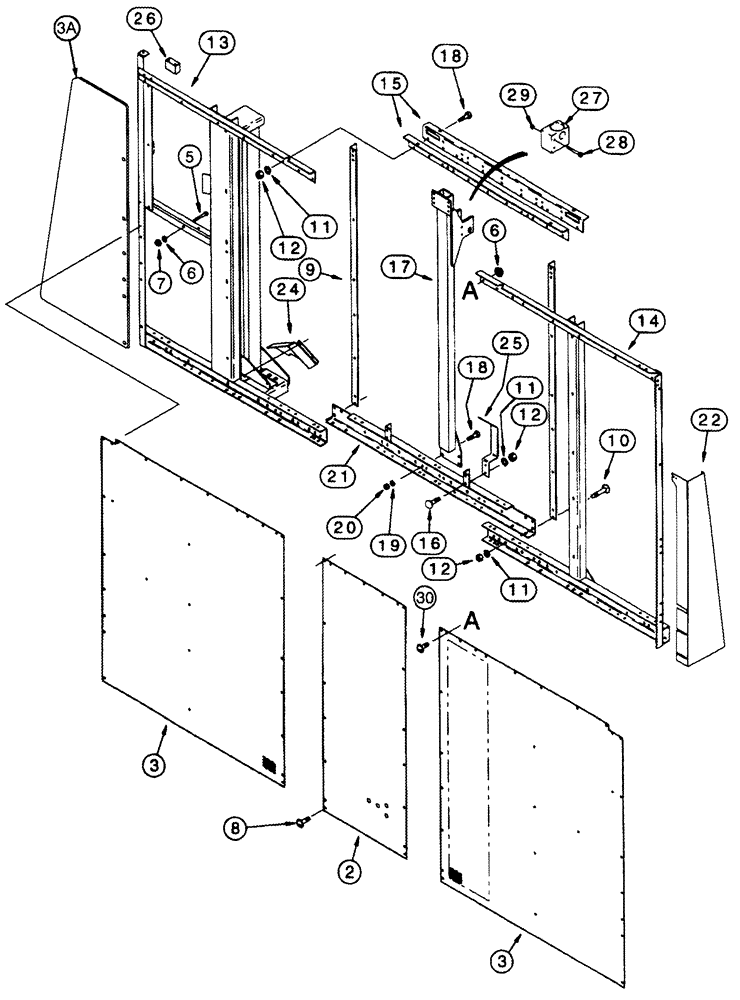

Запчасти Case IH 2555 (09D-10) - BASKET, FRONT (16) - BASKET

REF

INSTRUCTION

Basket, Complete, Includes 2 - 29

1шт.

2

244600A2

COVER

Screen, Center

1шт.

3

244599A3

COVER

Screen

2шт.

3a

335005A1

FLAP

Basket Door, Front

1шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4, Not Illustrated

1шт.

4a

488837C1

SPRING NUT

5/16, Not Illustrated

1шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

9

1260162C1

SUPPORT

Screen Mounting Bracket

2шт.

10

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

231817A6

END

Left Hand

1шт.

14

231819A4

END

Right Hand

1шт.

15

231823A3

ANGLE BAR

Tie

2шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

17

246970A3

SUPPORT

Basket Lift

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

1260318C3

CONDUIT

Tie

1шт.

22

1990335C2

GUARD

Right Hand Front, If Used

1шт.

24

1988634C1

GUARD

Front, If Used

1шт.

REF

INSTRUCTION

Basket, Complete, Includes 2 - 29

1шт.

25

1984211C1

GUIDE

Basket Door

1шт.

26

222680A2

GUIDE

Basket Door, Upper Inner

2шт.

27

196534A3

GUIDE

Lift Cylinder

1шт.

28

426-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

2шт.

29

231-4116

NUT,3/8"-16, GB

2шт.

30

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.
