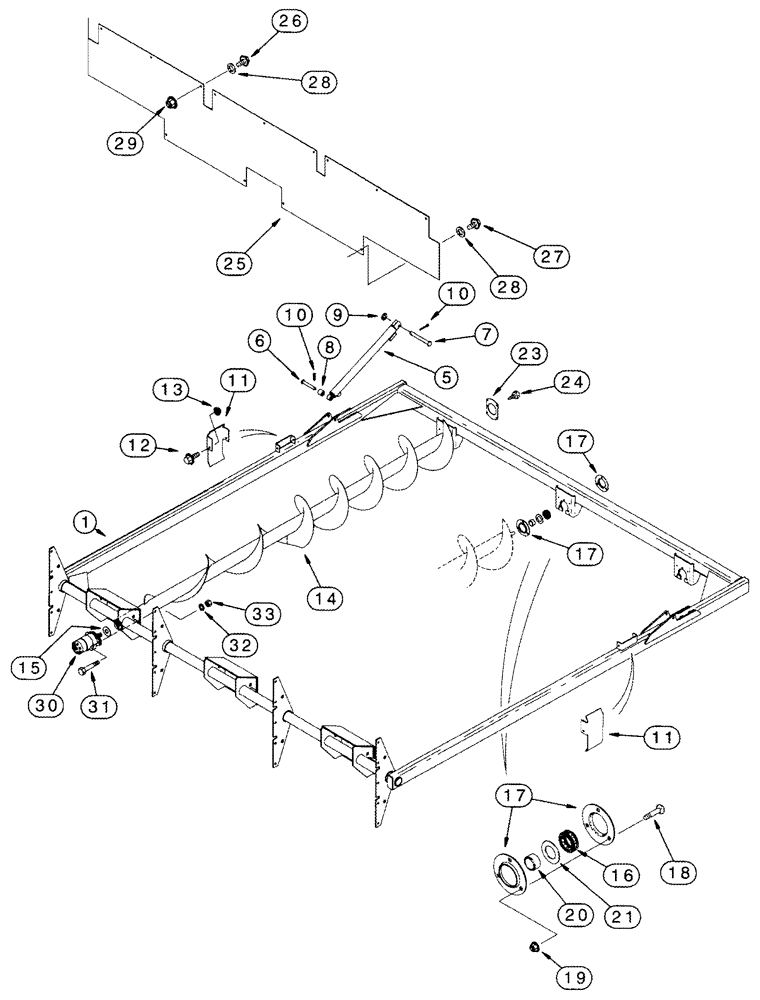

Запчасти Case IH 2555 (09D-08) - BASKET COMPACTOR AND AUGER (16) - BASKET

1

223348A3

CHASSIS

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

16шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

4

425-108

NUT,1/2" - 13, Gr 5

16шт.

5

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

Basket Compactor, See Page(s) 8-101, REF 1

2шт.

6

1338702C2

CLEVIS PIN,15.87mm OD x 94.5mm L

Cylinder Mounting, At Frame

2шт.

7

1338701C2

CLEVIS PIN,15.87mm OD x 63mm L

Cylinder Mounting, At Basket

2шт.

8

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

5/8 ID x 7/8

2шт.

9

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

10

432-1216

COTTER PIN,3/16" x 1"

4шт.

11

242077A1

GUIDE

Frame

2шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

222174A1

AUGER

3шт.

15

190327A1

WASHER

Auger Front

6шт.

16

211587C91

BALL BEARING,1.586" ID x 62 mm OD x 24 mm

3шт.

17

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

Bearing

6шт.

18

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 x 1; 2

9шт.

19

231-5146

FLANGE NUT,3/8"-16

9шт.

20

1999073C1

SPACER

3шт.

21

495-81028

WASHER,21/32" x 1 1/2" x .240"

3шт.

22

232-41110

NUT,5/8"-11, GC

3шт.

23

224402A1

LARGE PLATE

PLATE, LARGE , Front

3шт.

24

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5/16 st x 3/4

12шт.

25

224487A1

RUBBER SEAL

Auger Motor, At Rear of Basket

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

28

495-21044

WASHER,3/8"

14шт.

29

231-5146

FLANGE NUT,3/8"-16

10шт.

30

236708A1

MOTOR, HYDRAULIC

Auger Drive, See Page(s) 8-103, REF 26

3шт.

395263A1R

REMAN-HYD MOTOR

2555 BEFORE S/N JJC0249499; Reman for new PN 236708A1

3шт.

395263A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

33

425-108

NUT,1/2" - 13, Gr 5

6шт.

12

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

26

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

10шт.
