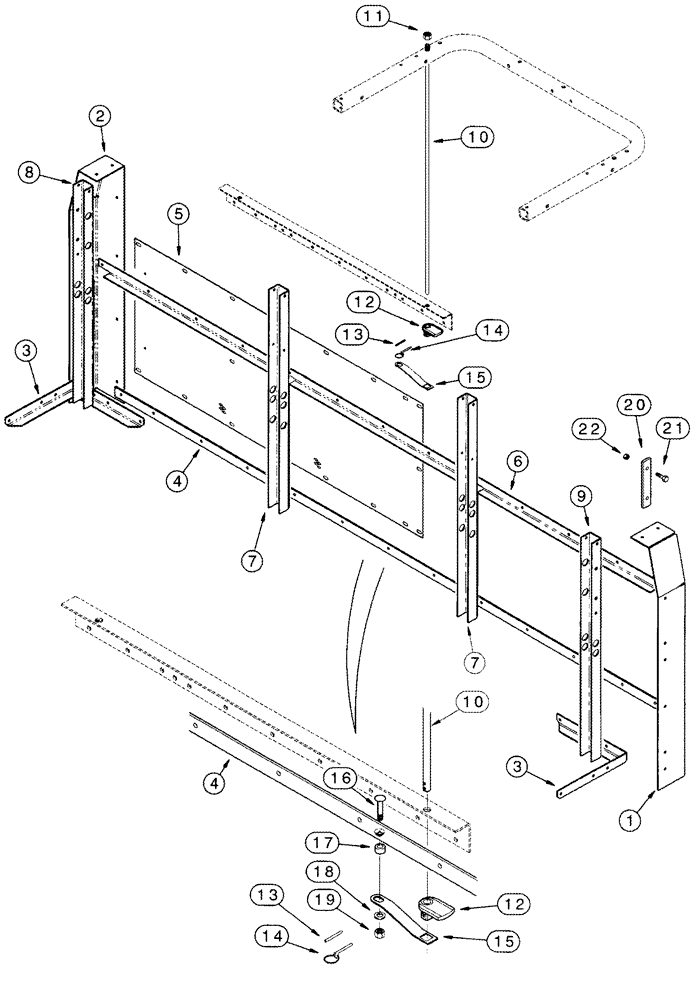

Запчасти Case IH 2555 (09D-02) - LID BASKET (16) - BASKET

Front Wall

1шт.

1

198850A2

COVER

Corner Post, Right Hand Front

1шт.

2

198851A2

COVER

Corner Post, Left Hand Front

1шт.

3

239327A1

BRACE

Basket Corner, Lower

2шт.

4

246437A1

ANGLE

Basket Top Lower Lid

1шт.

5

245062A4

SHEET

Front

2шт.

6

220417A5

ANGLE

Center Tie

1шт.

7

244791A3

CHANNEL

Vertical Front, Center

2шт.

8

244792A3

CHANNEL

Vertical Front, Left Hand

1шт.

9

244793A3

CHANNEL

Vertical Front, Right Hand

1шт.

10

220606A3

ROD

Basket Top Guide

2шт.

11

231-41110

LOCK NUT,5/8"-11, GB

2шт.

12

243203A1

PLATE

Basket Top Lock

2шт.

13

438-11616

LOCK PIN,1/4" x 1", Slotted

1/4" x 1", Slotted

2шт.

14

A33497

LINCH PIN,4.76mm OD Pin

2шт.

15

243131A2

PLATE

Basket Lock Keeper

2шт.

16

420-2624

PLOW BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2; 8

2шт.

17

313458A1

SPACER

2шт.

18

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

2шт.

20

197055A1

BAR

Basket Cylinder Mount Filler

2шт.

21

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

22

232-4118

NUT,1/2"-13, GC

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

1шт.

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3/8 x 1-1/4

1шт.

231-5146

FLANGE NUT,3/8"-16

1шт.

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

13/32 x 1 x 11/64

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.
