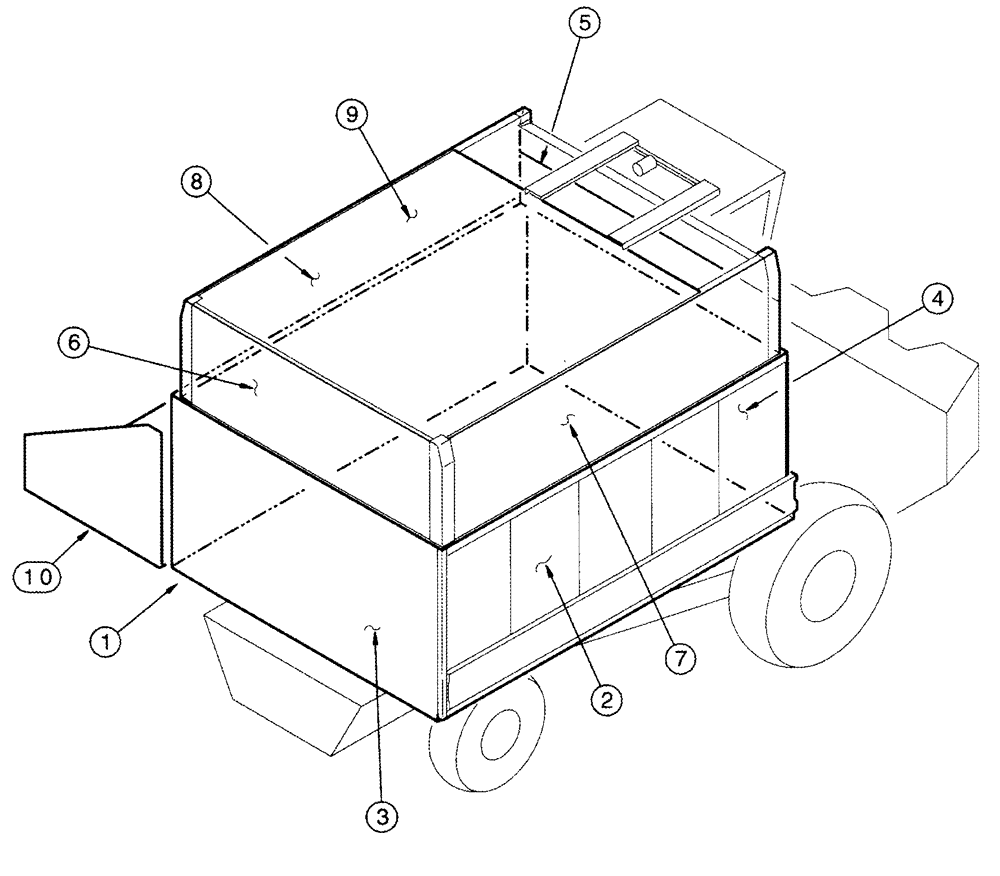

Запчасти Case IH 2555 (09D-01) - MAJOR BASKET ASSEMBLIES (16) - BASKET

387919A1

BASKET ASSY

Consists Of 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Basket, Floor, See Page(s) 9D-33

1шт.

2

NSS

NOT SOLD SEPARAT

Basket, Right Hand Side, See Page(s) 9D-31

1шт.

3

NSS

NOT SOLD SEPARAT

Basket, Rear, See Page(s) 9D-27, 9D-29

1шт.

4

NSS

NOT SOLD SEPARAT

Basket, Front, See Page(s) 9D-25

1шт.

NSS

NOT SOLD SEPARAT

Panel Assy, Consists Of 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Front Wall, See Page(s) 9D-5

1шт.

6

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Rear Wall, See Page(s) 9D-7

1шт.

7

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Right Hand Wall, See Page(s) 9D-9, 9D-11

1шт.

8

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Left Hand Wall, See Page(s) 9D-13, 9D-15

1шт.

9

NSS

NOT SOLD SEPARAT

Panel, Basket Lid, Top, See Page(s) 9D-17, 9D-19

1шт.

10

NSS

NOT SOLD SEPARAT

Door Assy, Basket, See Page(s) 9D-35 - 9D-43

1шт.
