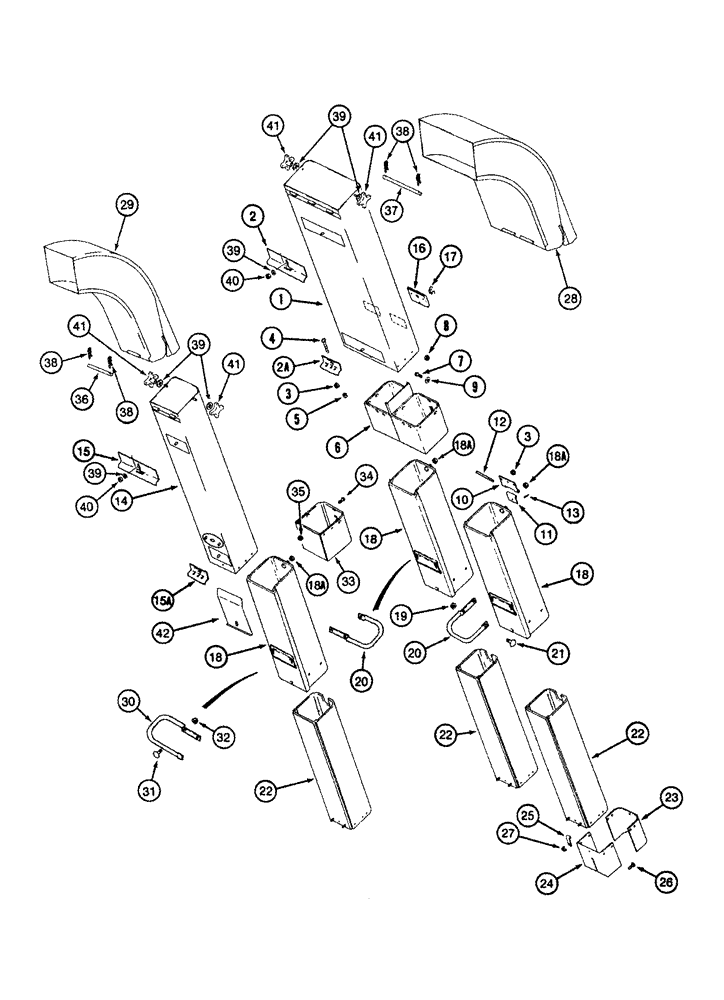

Запчасти Case IH 2555 (09C-15) - CONVEYOR CHUTES (15) - HANDLING SYSTEM

Outer

1шт.

1

199601A4

CHUTE

Double, Upper

2шт.

2

127588A1

CLAMP

Upper

2шт.

2a

127589A1

CLAMP

Lower

2шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

4

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

8шт.

5

230-4114

NUT,1/4"-20, GA

1/4

8шт.

6

1349872C3

DIVIDER

Double Chute

2шт.

7

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

11/32 x 3/4 x 1/16

1шт.

10

1349843C1

HINGE

Female, Upper

12шт.

11

1270014C1

HINGE

Male

12шт.

12

1349860C1

PIN,7.94mm OD x 129mm L

Hinge

12шт.

13

432-816

COTTER PIN,1/8" x 1"

12шт.

14

199598A4

CHUTE

Single, Upper

2шт.

15

127588A1

CLAMP

Upper

2шт.

15a

127589A1

CLAMP

Lower

2шт.

16

1983180C1

COVER

Duct Access, 8 Used on 4 Row Wide

10шт.

17

126177

WING NUT

1/4, 8 Used on 4 Row Wide

10шт.

18

1984139C3

CHUTE

Female, Outer

6шт.

18a

231-4116

NUT,3/8"-16, GB

3/8

6шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

20

123567A1

SUPPORT

Air Hose

4шт.

20

196609A1

BRACKET

Used On Machines With Dual Wheels, Air Hose

4шт.

Outer

1шт.

21

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

12шт.

22

1349803C1

CHUTE

Male, Lower

6шт.

23

131427A2

SHEET

Lower Front

6шт.

24

131428A2

SHEET

Lower Rear

6шт.

25

1984343C1

HOOK

8 Used on 4 Row Wide

10шт.

26

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

8 Used on 4 Row Wide

10шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8 Used on 4 Row Wide

10шт.

28

242378A2

HOOD

Outer, Double

2шт.

29

242372A2

COWL

Outer, Single

2шт.

30

123569A1

SUPPORT

Air Hose, Lower

2шт.

31

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

131425A2

SHEET

Upper

2шт.

34

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

14шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

36

233320A2

PIN,7.94mm OD x 194.5mm L

Used With Single Conveyor Chute and Hood

1шт.

37

233321A2

PIN,7.94mm OD x 366.5mm L

Used With Double Conveyor Chute and Hood

1шт.

38

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

2 used per Hinge Pin

1шт.

39

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

2 Used Per Chute and Hood

1шт.

40

425-105

NUT,5/16"-18, G5

2 used per chute

1шт.

41

254610A1

KNOB

2 Used Per Hood

1шт.

42

320943A1

DEFLECTOR

6шт.
