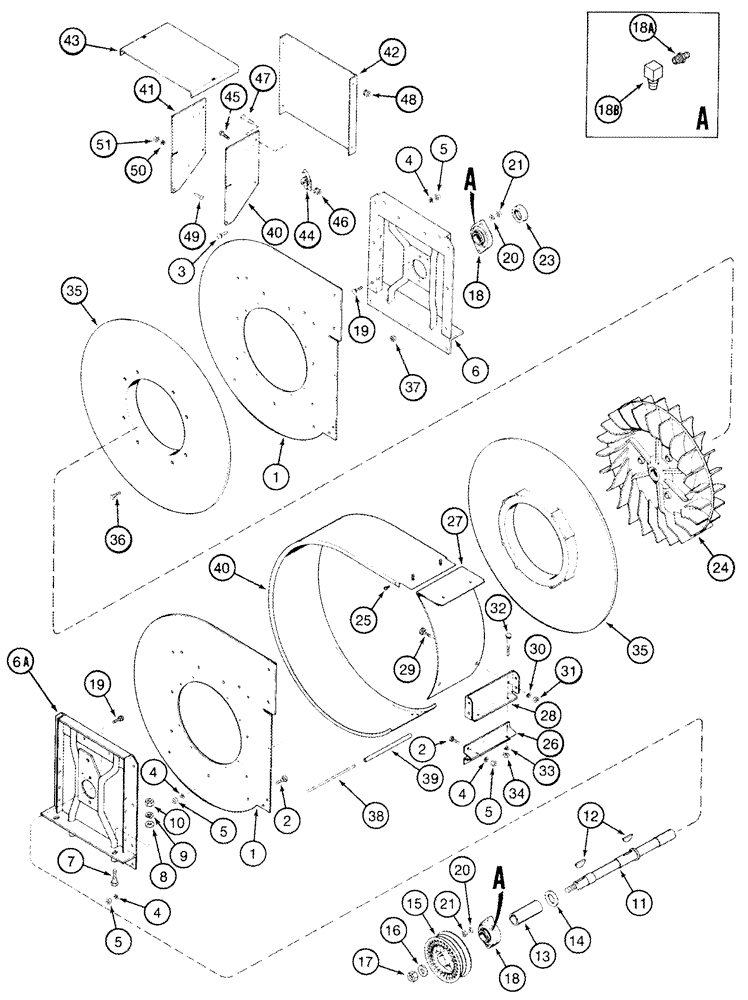

Запчасти Case IH 2555 (09C-10) - FRONT FAN (15) - HANDLING SYSTEM

1345030C2

FAN

Front, Inc. 1 - 40

1шт.

1

1260067C1

PLATE

Side

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4

10шт.

3

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

20шт.

4

492-11025

LOCK WASHER,1/4"

32шт.

5

425-104

NUT,1/4"-20, Cl 5

32шт.

6

1260120C4

HOUSING

Rear

1шт.

6a

1338329C2

HOUSING

Fan, Front

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

495-11053

WASHER,1/2", SAE

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

1260070C4

SHAFT

Fan Drive, Front

1шт.

12

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

2шт.

13

1260073C2

SPACER

1шт.

14

495-81214

WASHER,1.41" ID x 2.25" OD x 0.06" Thk

1-13/32 x 2-1/4 x 3/64

1шт.

15

1338322C1

PULLEY

1шт.

16

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

15/16 x 1-3/4 x 1/8

1шт.

17

131-476

SPECIAL NUT,7/8"-14

7/8 NF

1шт.

18

1260257C1

FLANGED BEARING,34.93mm ID

Inc. 18A, 18B

2шт.

18a

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18b

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

2шт.

19

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8 NC X 1-1/2 in

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

4шт.

23

517645R11

COLLAR

1шт.

24

1260010C1

FAN

Rotor

1шт.

25

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

M8 x 3/8

2шт.

26

204414C1

SUPPORT

Tie Bracket

1шт.

27

204416C1

BAFFLE

1шт.

28

204415C1

SUPPORT

Bolt Anchor

1шт.

29

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

30

492-11031

LOCK WASHER,5/16"

6шт.

31

425-105

NUT,5/16"-18, G5

6шт.

32

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

1345030C2

FAN

Front, Continued From Previous Page

1шт.

35

207515C1

BAFFLE

2шт.

36

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

37

232-4115

LOCK NUT,5/16"-18, GC

16шт.

38

215709C1

STUD

1шт.

39

215020C1

PIPE

Fan Housing

1шт.

40

221533C1

COVER

Outer

1шт.

41

1990480C1

COVER

Inlet Side

2шт.

42

1990482C1

COVER

Inlet Front

1шт.

43

1990481C1

COVER

Inlet Top

1шт.

44

1333780C1

LATCH

2шт.

45

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

4шт.

46

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

47

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

48

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

49

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

50

492-11031

LOCK WASHER,5/16"

4шт.

51

425-105

NUT,5/16"-18, G5

4шт.
