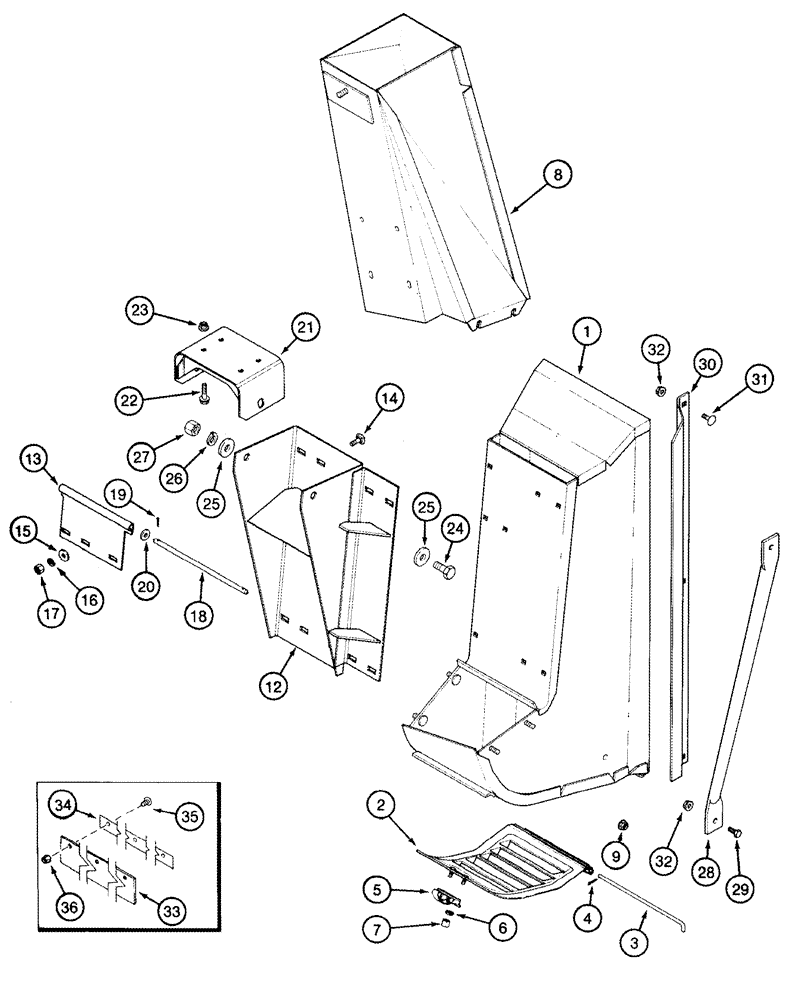

Запчасти Case IH 2555 (09C-06) - DRUM OUTLETS REAR (15) - HANDLING SYSTEM
№
Артикул
Название
Примечание
Количество
5 Row Narrow, Drum No. 4
1шт.
1
1984083C5
HOUSING
Rear Outlet
1шт.
2
119753A1
TRAP DOOR
Access, Rear Outlet, 4 Louvers
1шт.
3
1984110C2
PIN,6.25mm OD
Hinge
1шт.
4
432-612
COTTER PIN,3/32" x 3/4"
1шт.
5
1333780C1
LATCH
Hinge, Access Door
1шт.
5a
490-1108
SCREW,Cross Pan Hd, #10-32 x 1/2"
Not Illustrated
2шт.
6
492-11010
LOCK WASHER,#10
2шт.
6a
495-31022
WASHER,#10
4шт.
8
1984090C3
HOUSING
Outlet, Rear Drum, No. 4
1шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
12
1984168C4
SUPPORT
Support, Rear
1шт.
13
1984151C2
HINGE
Rear Door Support
1шт.
14
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
6шт.
15
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
6шт.
17
425-105
NUT,5/16"-18, G5
6шт.
18
1984153C1
STEM
Outlet Support
1шт.
19
32-812
COTTER PIN,1/8" x 3/4"
2шт.
20
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
2шт.
21
1990466C2
SUPPORT
Rear Outlet Adjustment
1шт.
Note: Quantity listed is per drum.
1шт.
Nota: La cantidad listada corresponde a cada tambor.
1шт.
Nota: Quantidade contida num tambor.
1шт.
5 Row Narrow, Drum No. 4
1шт.
22
409-7520
BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl
5/16 x 1-1/4
4шт.
23
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
24
413-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
2шт.
25
495-11053
WASHER,1/2", SAE
4шт.
26
392-21050
LOCK WASHER,1/2"
1/2"
2шт.
27
425-108
NUT,1/2" - 13, Gr 5
2шт.
28
1984349C1
SUPPORT
Door Support
1шт.
29
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
30
1984212C1
DEFLECTOR
Trash Post
1шт.
31
434-58
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5
3шт.
32
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
5шт.
33
1546051C2
SEALING STRIP
Outlet
1шт.
34
1546224C1
LARGE PLATE
PLATE, LARGE , Backup, Outlet Seal
1шт.
35
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5шт.
36
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
Note: Quantity listed is per drum.
5шт.
