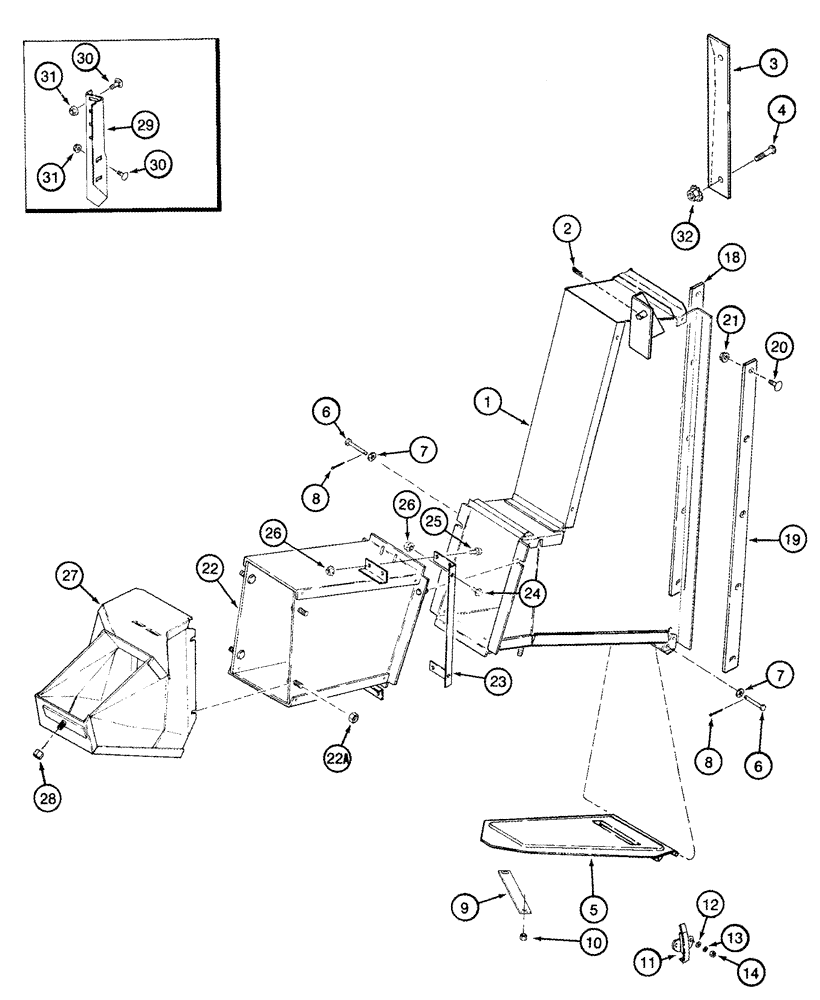

Запчасти Case IH 2555 (09C-05) - DRUM OUTLETS FRONT (15) - HANDLING SYSTEM

5 Row Wide, Drum No. 3

1шт.

1

131070A1

SHEET

Front Outlet

1шт.

2

586591R1

COTTER PIN

1/8

1шт.

3

114925A1

LARGE PLATE

PLATE, LARGE , Outlet Latch

1шт.

4

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

5

132940A1

TRAP DOOR

Access

1шт.

6

439-1440

HEADED PIN,1/4" x 2 1/2"

2шт.

7

495-11028

WASHER,1/4", SAE

1шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

9

1349890C2

LATCH

Outlet Door

1шт.

10

231-4115

NUT,5/16"-18, GB

1шт.

11

1333780C1

LATCH

Hinge, Access Door

1шт.

12

495-31022

WASHER,#10

2шт.

13

492-11010

LOCK WASHER,#10

2шт.

14

225-14210

NUT,#10-32

2шт.

18

1546051C2

SEALING STRIP

Outlet

1шт.

19

1546224C1

LARGE PLATE

PLATE, LARGE , Backup, Outlet Seal

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

129595A2

EXTENSION

Outlet

1шт.

22a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

23

118909A1

SUPPORT

Extension

1шт.

24

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

27

1984042C2

HOUSING

Rear Section

1шт.

28

231-4116

NUT,3/8"-16, GB

1шт.

29

1546006C2

SUPPORT

Duct

1шт.

30

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Note: Quantity listed is per drum., Nota: La cantidad listada corresponde a cada tambor., Nota: Quantidade contida num tambor.

2шт.
