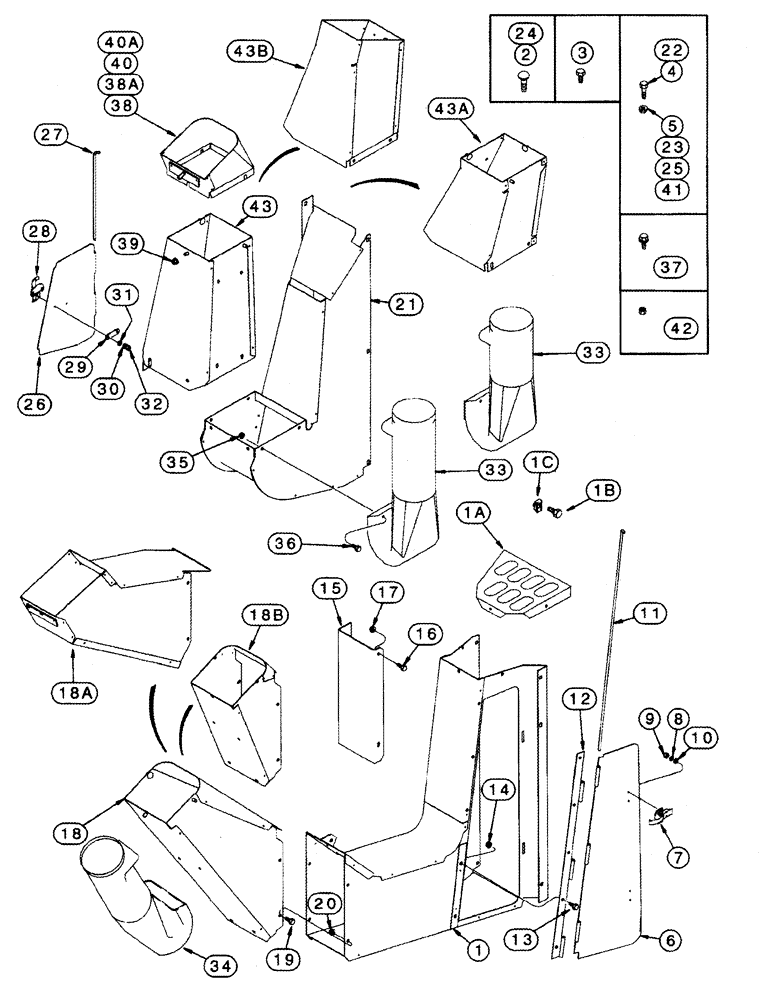

Запчасти Case IH 2555 (09C-03) - DRUM OUTLETS FRONT AND REAR JJC0157150- (15) - HANDLING SYSTEM

All 4 Row Wide Only, 4 Row Narrow No. 1 and 4

1шт.

5 Row Wide No. 1, 4 and 5, 5 Row Narrow No. 1 and 5

1шт.

1

280026A3

OUTLET

Drum Outlet, Front, 4 Row Wide, 5 Row Wide, No. 4 and 5, 5 Row Narrow, No. 5

1шт.

1a

292377A1

COWL

Drum Outlet, Top, If Equipped

1шт.

1b

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

If equipped

3шт.

1c

131-835

SPRING NUT,U, #10-24

If equipped

3шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

2шт.

4

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

6

291601A1

DOOR

Front Outlet, 4 Row Wide, 5 Row Wide, No. 4 and 5, 5 Row Narrow, No. 5

1шт.

7

1333780C1

LATCH

2шт.

8

492-11010

LOCK WASHER,#10

4шт.

9

225-14210

NUT,#10-32

4шт.

10

495-31022

WASHER,#10

4шт.

11

291605A1

PIN,6.35mm OD

Hinge, 4 Row Wide, 5 Row Wide, No. 5, 5 Row Narrow, No. 5

2шт.

Note: Quantity listed is per drum.

1шт.

Nota: La cantidad listada corresponde a cada tambor.

1шт.

Nota: Quantidade contida num tambor.

1шт.

All 4 Row Wide Only, 4 Row Narrow No. 1 and 4

1шт.

5 Row Wide No. 1, 4 and 5, 5 Row Narrow No. 1 and 5

1шт.

12

291604A1

HINGE

4 Row Wide, 5 Row Wide, No. 4 and 5, 5 Row Narrow

4шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

15

280641A1

CHANNEL

4 Row Wide, 5 Row Wide, No. 4 and 5, 5 Row Narrow, No. 5

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

281769A2

EXTENSION ASSY.

4 Row Wide, No. 1 and 4, 5 Row Wide, No. 4 and 5, 5 Row Narrow, No. 5, Replaces 281769A1

1шт.

18a

282872A1

EXTENSION ASSY.

4 Row Wide, No. 2

1шт.

18b

282308A3

EXTENSION ASSY.

4 Row Wide, No. 3, Replaces 282308A2

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

5шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

21

283744A2

DOOR

Drum Outlet, Rear, 4 Row Wide, 4 Row Narrow, No. 4, 5 Row Wide, No. 1 and 5, 5 Row Narrow, No. 5

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

Note: Quantity listed is per drum., Nota: La cantidad listada corresponde a cada tambor., Nota: Quantidade contida num tambor.

5шт.

All 4 Row Wide Only, 4 Row Narrow No. 1 and 4

1шт.

5 Row Wide No. 1, 4 and 5, 5 Row Narrow No. 1 and 5

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

26

295248A1

DOOR

Rear Outlet, 4 Row Wide, 4 Row Narrow, No. 4, 5 Row Wide, No. 1 and 5, 5 Row Narrow, No. 5

1шт.

27

283953A1

PIN,6.35mm OD

Hinge

1шт.

28

1333780C1

LATCH

1шт.

29

119069A1

PLATE

Latch, 4 Row Wide, 4 Row Narrow, No. 4, 5 Row Wide, No. 1 and 5, 5 Row Narrow, No. 5

1шт.

30

492-11010

LOCK WASHER,#10

2шт.

31

495-31022

WASHER,#10

2шт.

32

225-14210

NUT,#10-32

2шт.

33

283596A1

NOZZLE

Wide, 4 Row Wide, 4 Row NarrowNo. 4, 5 Row Wide, No. 1 and 5, 5 Row Narrow, No. 1 and 5, Serial Range: -JJA0249225

1шт.

33

324164A1

NOZZLE

4 Row Wide, No. 2 and 3, Start Serial: JJA0249225

1шт.

34

1984189C2

NOZZLE

Front

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

Note: Quantity listed is per drum

1шт.

Nota: La cantidad listada corresponde a cada tambor.

1шт.

Nota: Quantidade contida num tambor.

1шт.

All 4 Row Wide Only, 4 Row Narrow No. 1 and 4

1шт.

5 Row Wide No. 1, 4 and 5, 5 Row Narrow No. 1 and 5

1шт.

36

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

37

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

38

1545953C1

HOUSING

Angled, Rear, 4 Row Wide, No. 1

1шт.

38a

1990497C1

HOUSING

Straight, Rear, 4 Row Wide, No. 2 and 4

1шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

40

1546036C1

ADAPTER

Straight, Front, 4 Row Wide, No. 1 and 3

1шт.

40a

1546039C1

HOUSING

Angled, Front, 4 Row Wide, No. 4

1шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

42

231-4116

NUT,3/8"-16, GB

3/8

1шт.

43

283750A4

EXTENSION

Rear, 4 Row Wide, No. 1 and 4, 4 Row Narrow, No. 4, 5 Row Wide, No. 1 and 5, Replaces 283750A2

1шт.

43a

283755A3

EXTENSION

Rear, 4 Row Wide, No. 2, Replaces 283755A2

1шт.

43b

338756A1

CHUTE (DOWNWARD)

Rear, 4 Row Wide, No. 3, Replaces 283760A1

1шт.

Note: Quantity listed is per drum.

1шт.

Nota: La cantidad listada corresponde a cada tambor.

1шт.

Nota: Quantidade contida num tambor.

1шт.
