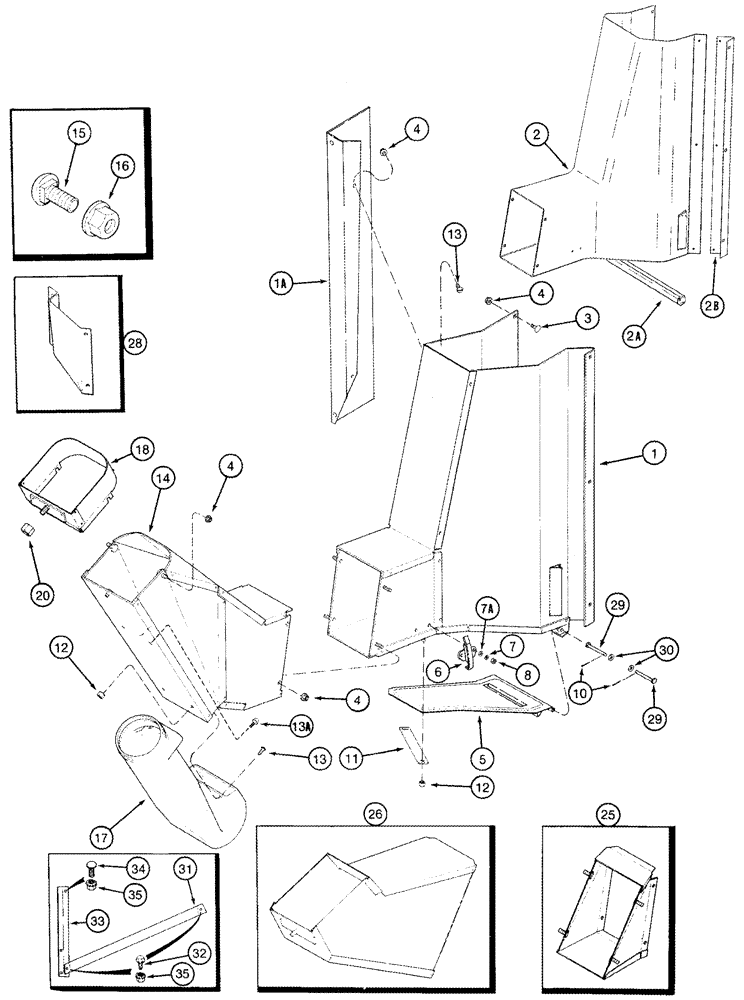

Запчасти Case IH 2555 (09C-01) - DRUM OUTLETS FRONT (15) - HANDLING SYSTEM

1

1349886C3

HOUSING

Drum Outlet, Front, Includes 1A, Used on All Except 5 Row Narrow (No. 2) -JJC0156944, Replaced By 193133A1, REF 2, See Note

1шт.

1a

NSS

NOT SOLD SEPARAT

Angle, Trash, Front Outlet

1шт.

2

193133A1

HOUSING

Drum Outlet, Plastic, Includes 2A, 2B, Used on All Except 5 Row Narrow (No. 2) JJC0156945-, If Used, See Note

1шт.

2a

221826A1

HINGE

Adapter

1шт.

2b

221819A1

ANGLE BAR

Adapter

1шт.

3

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

1349891C4

TRAP DOOR

Access, Outlet, With Two Short Pin Retainers, If Used

1шт.

6

1333780C1

LATCH

Hinge, Access Door

1шт.

7

492-11010

LOCK WASHER,#10

2шт.

7a

495-31022

WASHER,#10

2шт.

8

225-14210

NUT,#10-32

2шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

Note: Quantity listed is per drum., Nota: La cantidad listada corresponde a cada tambor., Nota: Quantidade contida num tambor.

2шт.

Note: For additional front drum outlet arrangements, see page 9C-13 - 9C-19.

1шт.

Nota: Para ajustes de la salida del tambor delantero adicional véase la página 9C- 13 - 9C-19.

1шт.

Nota: Para arranjos diferentes das saídas do tambor dianteiro, veja as páginas 9C- 13 a 9C-19.

1шт.

11

1349890C2

LATCH

Outlet Door

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

13a

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

14

1349927C2

HOUSING

Front Outlet, 4 Row Wide, No. 1 and 4, -JJC0157149

1шт.

14

1349927C2

HOUSING

Front Outlet, 5 Row Narrow, No. 1 and 4, 5 Row Narrow, No. 5, All Production

1шт.

14a

1349962C2

HOUSING

Front Outlet, 5 Row Narrow, No. 3, All Production, Not Illustrated

1шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

1984189C2

NOZZLE

Front Outlet, Long

1-2шт.

18

1546036C1

ADAPTER

Front Outlet Extension, 4 Row Wide, No. 1 and 3, 5 Row Narrow, No. 1 and 4

1шт.

18a

1546039C1

HOUSING

Front Outlet Extension, 4 Row Wide, No. 4, 5 Row Narrow, No. 5, Not Illustrated

1шт.

20

231-4116

NUT,3/8"-16, GB

1шт.

25

1988707C2

GUARD

Front Outlet, 4 Row Wide, No. 2 and 3

1шт.

Note: Quantity listed is per drum.

1шт.

Nota: La cantidad listada corresponde a cada tambor.

1шт.

Nota: Quantidade contida num tambor.

1шт.

26

1988802C2

GUARD

Front Outlet, 4 Row Wide, No. 2

1шт.

26a

1988712C2

EXTENSION

Front Outlet, 4 Row Wide, No. 3, Not Illustrated

1шт.

28

1988717C1

SUPPORT

Outlet Mounting, 4 Row Wide, No. 2 and 3

1шт.

29

439-1440

HEADED PIN,1/4" x 2 1/2"

2шт.

30

495-11028

WASHER,1/4", SAE

1шт.

31

1546257C1

SUPPORT

Outlet, 4 Row Wide, No. 2, Front

1шт.

31

1546259C1

SUPPORT

Outlet, 4 Row Wide, No. 3, Front

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

33

1546255C3

ANGLE BAR

Outlet Support, 4 Row Wide, No. 2, Front

1шт.

33

1546258C1

ANGLE BAR

Outlet Support, 4 Row Wide, No. 3, Front

1шт.

34

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Note: Quantity listed is per drum.

6шт.
