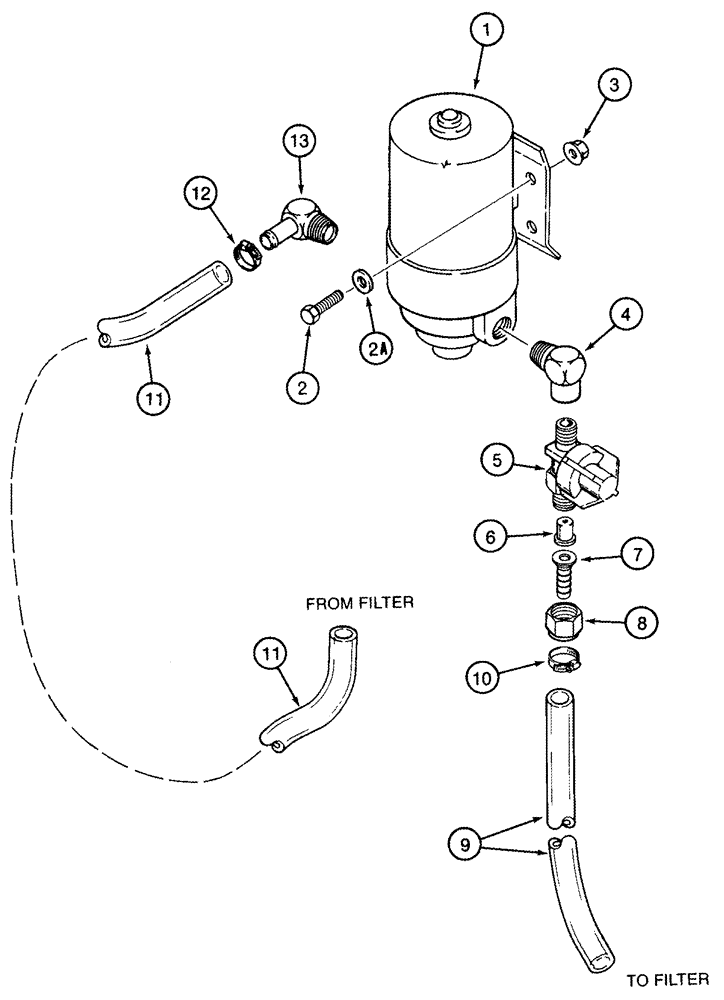

Запчасти Case IH 2555 (09B-05) - WATER PUMP, MOUNTING AND LINES (14) - WATER SYSTEM

1

1338877C1

PUMP, WATER

No Serviceable Components

1шт.

2

463-11016

SCREW,Hex Hd, #10-24 x 1"

4шт.

2a

495-31022

WASHER,#10

4шт.

3

86625057

NUT,#10-24, GB

4шт.

4

217-1027

ELBOW,3/8" - 18 Male x 1/4" - 18 Female

1шт.

5

1339011C1

CHECK VALVE

10 psi

1шт.

6

1339108C1

VALVE POPPET

1шт.

7

1339130C1

FITTING

Special

1шт.

8

1339129C1

NUT

1шт.

9

1338160C2

HOSE

Cut From 1338159CX, Water Pump to Water Filter, See Page(s) 9B-7, 9B-9, See Page(s) 9B-11, REF 1

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

11

1338880C2

HOSE

Cut From 665181R1, Water Filter to Water Pump, See Page(s) 9B-7, 9B-9, See Page(s) 9B-11, REF 1

1шт.

12

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

13

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.
