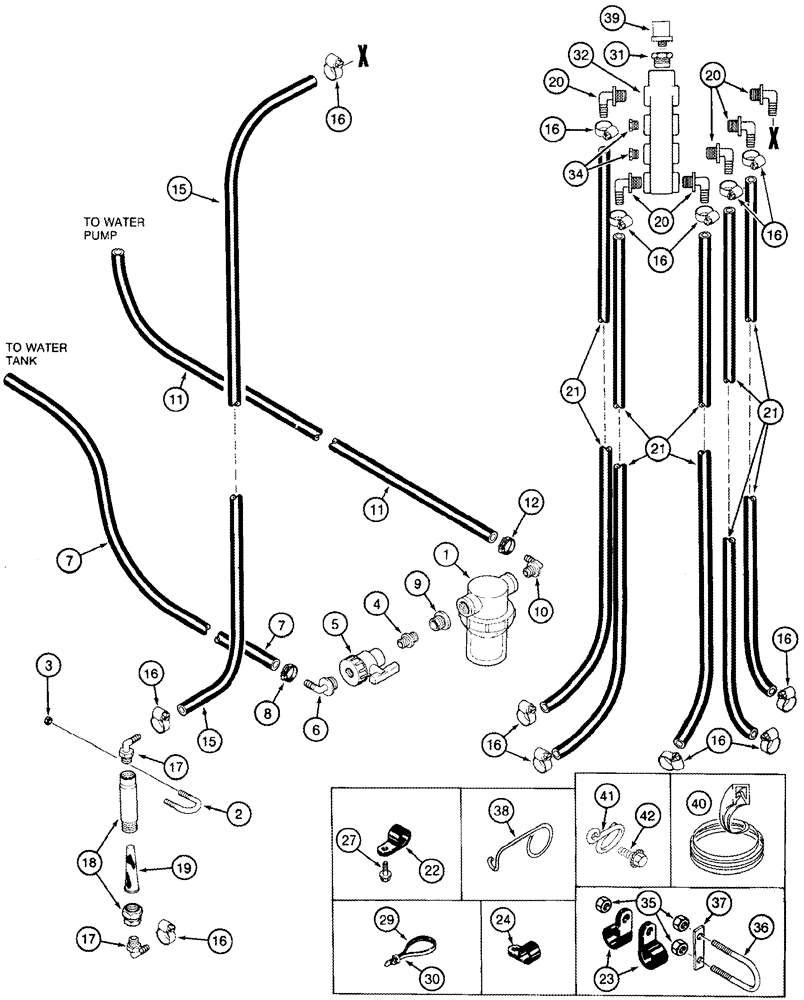

Запчасти Case IH 2555 (09B-03) - WATER LINES (14) - WATER SYSTEM

1

87006C92

FILTER

See Page(s) 9B-11, REF 1

1шт.

2

1338145C1

U-BOLT,3/8" - 16 x 41.15mm W x 41.30mm L

3/8

1шт.

3

231-4116

NUT,3/8"-16, GB

2шт.

4

1345155C1

ADAPTER

3/4 PT x 3/4, Straight

1шт.

5

1345067C1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

1шт.

6

1329210C1

ELBOW

1шт.

7

1329265C3

HOSE,12.70mm ID x 2540mm L

Cut From 665181R1, Water Tank to Shutoff Valve

1шт.

8

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

2шт.

9

1345154C1

FITTING

1 x 3/4

1шт.

10

1345153C1

90 ELBOW

1 x 1/2

1шт.

11

1338880C2

HOSE

Cut From 665181R1, Shutoff Filter to Water Pump, See Note

1шт.

12

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

15

1338768C2

HOSE

508 mm (20 in), Cut From 1338159CX, Inline Filter to Manifold Valve

1шт.

16

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

14-16шт.

17

1339135C1

ELBOW

3/4 PT x 3/8

2шт.

18

1339134C1

FILTER

Inline

1шт.

19

1339256C1

FILTER STRAINER

1шт.

20

1546018C1

ELBOW

5-6шт.

21

1546022C1

HOSE

Cut From 1338159CX, Manifold, Serial Range: Valve-Drum

4-5шт.

Note: See page 9B-13 for water pump mounting and lines.

1шт.

Nota: véase la página 9B-13 para mayor información sobre las líneas y la instalación de la bomba de agua.

1шт.

Nota: Veja a página 9B-13 para informações sobre a montagem da bomba de água e as linhas.

1шт.

22

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2-3шт.

23

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

8-10шт.

24

1301387C2

CLIP

1шт.

27

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

2-3шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

31

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1шт.

32

1546015C1

MANIFOLD

Water

1шт.

33

1546371C1

PROTECTOR

Guard, Not Illustrated

4-5шт.

34

111491A1

PLUG

3-4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

14шт.

36

1546030C1

U-BOLT,3/8" - 16 x 47.60mm W x 44.50mm L

BOLT "U"

4шт.

37

1546029C1

LARGE PLATE

PLATE, LARGE

4шт.

38

120903A1

SUPPORT

Long

2шт.

39

141062A1

SENSOR

Water Manifold, See Page(s) 4-43, REF 41

1шт.

40

121574A1

SEAL PROTECTION

Black, 254 mm (10 in), Cut From 1330108CX

1шт.

41

189300A1

BRACKET

Short

4шт.

42

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

4шт.
