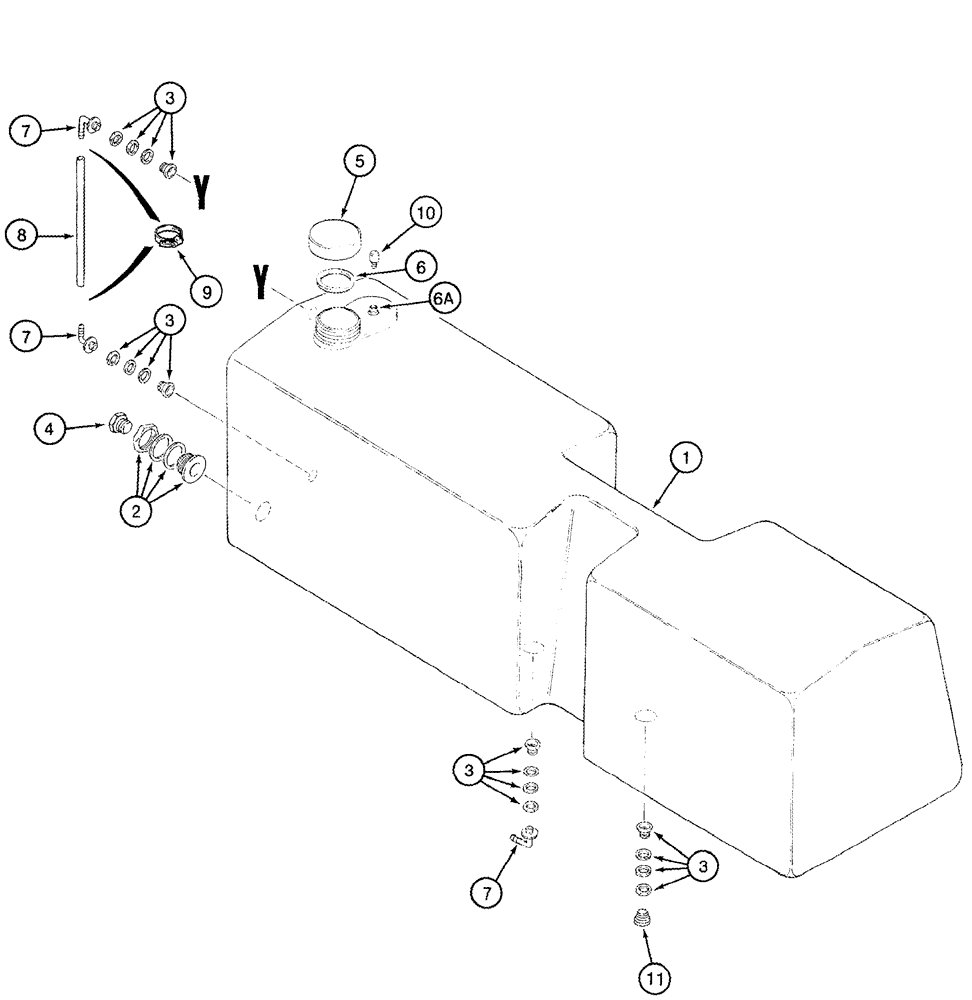

Запчасти Case IH 2555 (09B-01) - WATER TANK (14) - WATER SYSTEM

1

121402A1

TANK

385 gal, Includes 2 - 6A

1шт.

2

1254377C1

FITTING

1-1/4 PT, Nylon, 4 Piece, Special

1шт.

3

1345186C1

FITTING

3/4 PT, Nylon, 4 Piece

4шт.

4

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

1-1/4 PT, Nylon, Special

1шт.

5

1345185C1

CAP

Includes 6

1шт.

6

1345175C1

GASKET,115.1mm ID x 131.1mm OD x 3.8mm Thk

1шт.

6a

221858C91

FITTING

Brass

1шт.

7

1329210C1

ELBOW

1/2 stem x 3/4 PT

3шт.

8

1545978C3

HOSE

686 mm (27 in), Cut From 665181R1

1шт.

9

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32, Adjustable

2шт.

10

1971726C1

BREATHER,1/4" - 18

1шт.

11

217-440

PLUG,3/4" - 14 NPT

3/4 PT, Plugs Unused Hole in Bottom of Tank

1шт.
