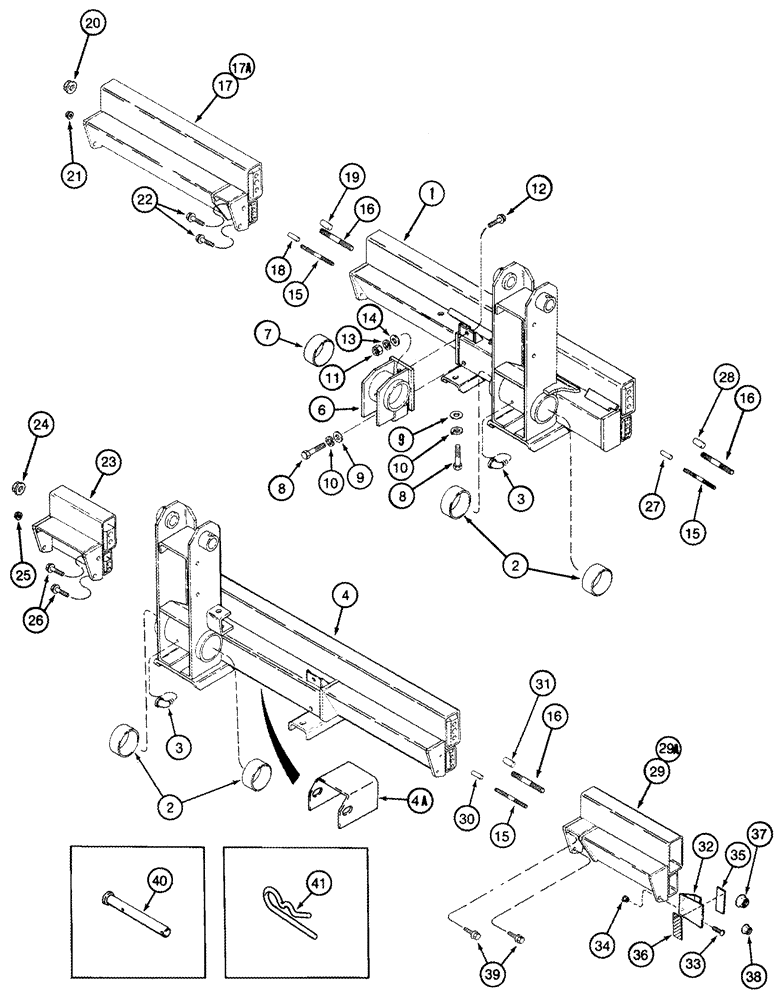

Запчасти Case IH 2555 (09A-46) - TOOLBARS AND EXTENSIONS (13) - PICKING SYSTEM

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

5 Row Wide or Narrow

1шт.

1

116218A1

BAR ASSY.

Main Toolbar, Left Hand, See Page(s) 9A-179, Includes 2

1шт.

2

115792A1

BUSHING

Not Illustrated

2шт.

3

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

5шт.

4

116220A2

BAR ASSY.

Main Toolbar, Right Hand, See Page(s) 9A-179, Includes 4A and 5

1шт.

4a

1984348C2

SUPPORT

Rear Door

1шт.

5

115792A1

BUSHING

Not Illustrated

2шт.

6

1983056C6

SUPPORT

Includes 7

2шт.

7

115792A1

BUSHING

4шт.

8

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

429-108

NUT,1/2"-13, G8

1/2; 8

2шт.

12

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

1/2 x 1-1/2

2шт.

13

492-11062

BEARING WASHER,5/8"

4шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

15

1546294C1

STUD

See Page(s) 9A-179

5шт.

16

1546293C1

STUD

See Page(s) 9A-179

5шт.

17

1546291C1

EXTENSION

Left Hand, With Dowels, 4 Row Wide or 5 Row Narrow Models, Includes 18, 19, See Page(s) 9A-179

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

5 Row Wide or Narrow

1шт.

17a

119255A1

EXTENSION

Left Hand, With Dowels, 5 Row Wide Models, Includes 18, 19

1шт.

18

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

19

37-11632

DOWEL,1" x 2"

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

21

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

22

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

23

1546301C1

EXTENSION

See Page(s) 9A-179

1шт.

24

232-53112

FLANGE NUT,Flg, 3/4"-10

1шт.

25

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

26

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

27

37-11236

DOWEL,3/4" x 2 1/4"

See Page(s) 9A-179

1шт.

28

37-11632

DOWEL,1" x 2"

See Page(s) 9A-179

1шт.

29

1546292C1

EXTENSION

Right Hand, With Dowels, 4 Row Wide or 5 Row Narrow Models, Includes 30, 31, See Page(s) 9A-179

1шт.

29a

119260A1

EXTENSION

Right Hand, With Dowels, 5 Row Wide Models, Includes 30, 31

1шт.

30

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

31

37-11632

DOWEL,1" x 2"

1шт.

32

1994997C1

BRACKET

Reflector Toolbar

2шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

1284374C1

REFLECTOR,Reflector Red

Red

2шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

5 Row Wide or Narrow

1шт.

36

1284365C2

REFLECTOR

Amber

2шт.

37

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

38

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

39

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

40

118485A1

PIN,12.7mm OD x 150.75mm L

Support Hold-Down, See Kit Below

1шт.

41

586591R1

COTTER PIN

1/8, See Kit Below

1шт.

Toolbar Kits

1шт.

118604A1

PACKAGE

Right Hand, 4 Row Wide, Includes 4, 23, 27, 28, 29, 40, 41 (1), Includes 15, 16 (3), See Page(s) 9A-175, 9A-177, 9A-179

1шт.

118605A1

PACKAGE

Left Hand, 4 Row Wide, Includes 1, 17 (1), Includes 15, 16 (2), See Page(s) 9A-175

1шт.

118606A1

PACKAGE

Right Hand, 5 Row Narrow, Includes 4, 29 (1), Includes 15, 16 (2), See Page(s) 9A-175, 9A-177

1шт.

118607A1

PACKAGE

Left Hand, 5 Row Narrow, Includes 1, 17, 23, 27, 28, 40, 41 (1), Includes 15, 16 (3), See Page(s) 9A-175, 9A-177, 9A-179

1шт.
