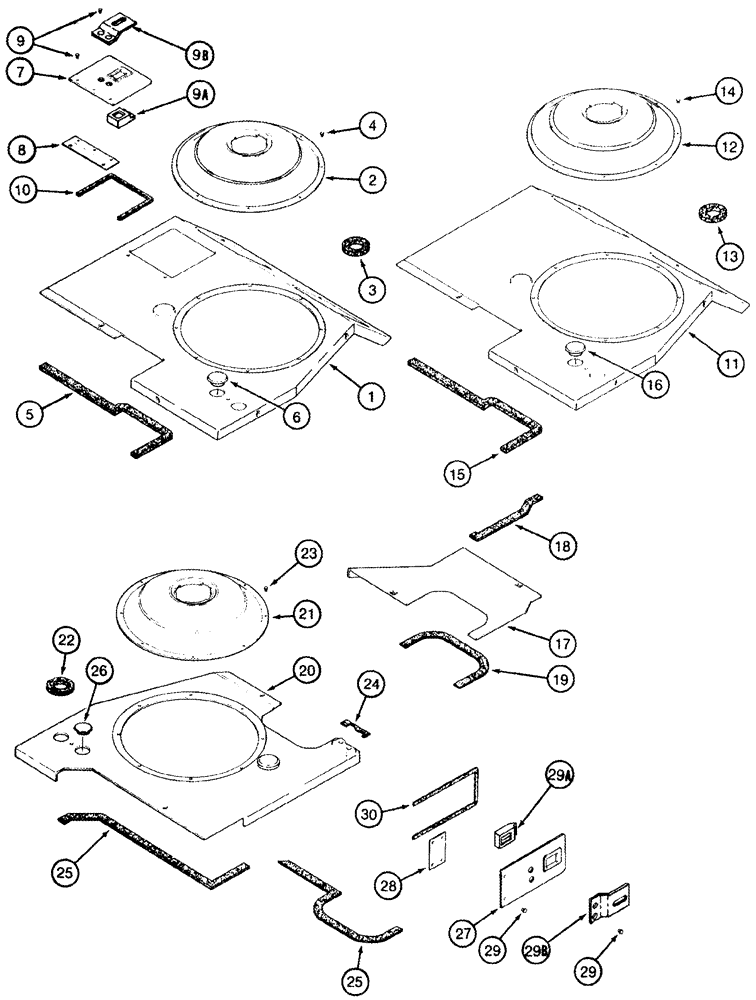

Запчасти Case IH 2555 (09A-45) - DRUM COVERS JJC0157150- (13) - PICKING SYSTEM

1982724C1

COVER ASSY

Upper, Front, With Opening For Operator Presence System, Inc. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Cover, Top Front

1шт.

2

1982649C1

COVER

Drum Rotor

1шт.

3

1990287C1

GASKET

1шт.

4

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

5

NSS

NOT SOLD SEPARAT

540 mm (21-1/4 in), Seal, Cut From 195917C1

1шт.

6

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top Cover

2шт.

283731A1

COVER ASSY

Access, Consists Of 7 - 10

1шт.

7

283732A1

COVER ASSY

Access, Large

1шт.

8

1982668C1

HINGE

Access Cover

1шт.

9

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

5шт.

9a

1982673C1

LATCH

Cover

1шт.

9b

280444A1

CATCH PLATE

Latch

1шт.

10

1994969C1

SEALING STRIP

450 mm (17-3/4 in), Cut From 1994968C1

1шт.

1982627C1

COVER ASSY

Upper, Front, Right Hand, Includes 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

Cover, Top Front

1шт.

1982627C1

COVER ASSY

Upper, Front, Right Hand, Includes 11 - 15, Continued From Previous Page

1шт.

12

1982649C1

COVER

Drum Rotor

1шт.

13

1990287C1

GASKET

1шт.

14

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

15

NSS

NOT SOLD SEPARAT

540 mm (21-1/4 in), Seal, Cut From 195917C1

1шт.

16

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top Cover

1шт.

1990261C2

COVER ASSY

Top, Center, Inc. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Cover, Top, Center

1шт.

18

NSS

NOT SOLD SEPARAT

262 mm (10-5/16 in), Seal, Cut From 195917C1

1шт.

19

NSS

NOT SOLD SEPARAT

390 mm (15-3/8 in), Seal, Cut From 195917C1

1шт.

1982764C2

COVER ASSY

Top, Rear, Inc. 20 - 25

1шт.

20

NSS

NOT SOLD SEPARAT

Cover, Top Rear

1шт.

21

1982649C1

COVER

Drum Rotor

1шт.

22

1990287C1

GASKET

1шт.

23

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

8шт.

24

NSS

NOT SOLD SEPARAT

80 mm (3-3/16 in), Seal, Cut From 187874C1

1шт.

25

NSS

NOT SOLD SEPARAT

600 mm (23-5/8 in), Seal, Cut From 195917C1

2шт.

26

353-414

PLUG,Dome, 1.375" Hole, Nylon

Top Cover

1шт.

283733A1

COVER ASSY

Access, Consists Of 27 - 30

1шт.

27

283734A1

COVER

Access, Small

1шт.

28

1982672C1

HINGE

Access Cover

1шт.

29

151-218

RIVET,Tr Hd, 3/16" x .281", Alum.

4шт.

29a

1982673C1

LATCH

Cover

1шт.

29b

280444A1

CATCH PLATE

Latch

1шт.

30

1994970C1

SEALING STRIP

512 mm (20-1/8 in), Cut From 1994968C1

1шт.
