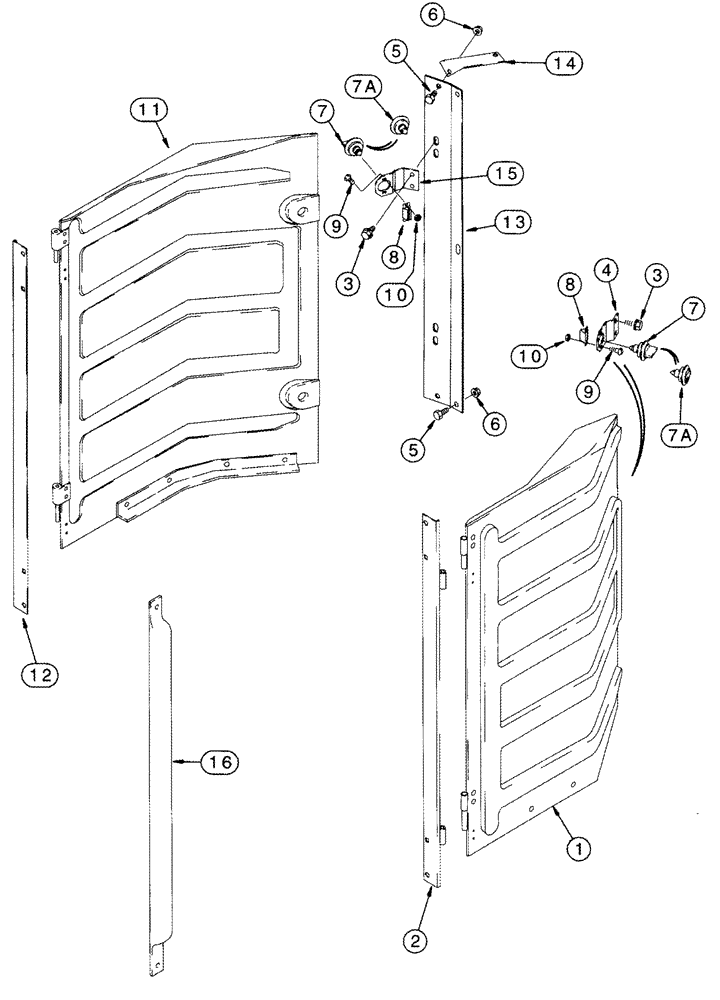

Запчасти Case IH 2555 (09A-42) - FRONT AND REAR DOORS JJC0157150- (13) - PICKING SYSTEM

1

282110A4

DOOR

Front, Rotor Cover

1шт.

2

281793A2

HINGE

Door, Front, Replaces 281793A1

2шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

4

259536A1

LATCH

Front

2шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

7

292503A1

LATCH

Slam, Standard, If Equipped

4шт.

7a

292505A1

LATCH

Slam, Tool Operated, If Equipped

4шт.

8

292504A1

CASE

Slam Latch

4шт.

9

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

8шт.

10

225-14210

NUT,#10-32

8шт.

11

282112A3

DOOR

Rear, Rotor Cover

1шт.

12

281794A1

HINGE

Door, Rear

1шт.

13

1546428C1

BRACKET

Plate Support

1шт.

14

1546426C1

BRACKET

1шт.

15

259537A1

LATCH

Rear

2шт.

16

281795A1

HINGE

Doffer Post

2шт.
