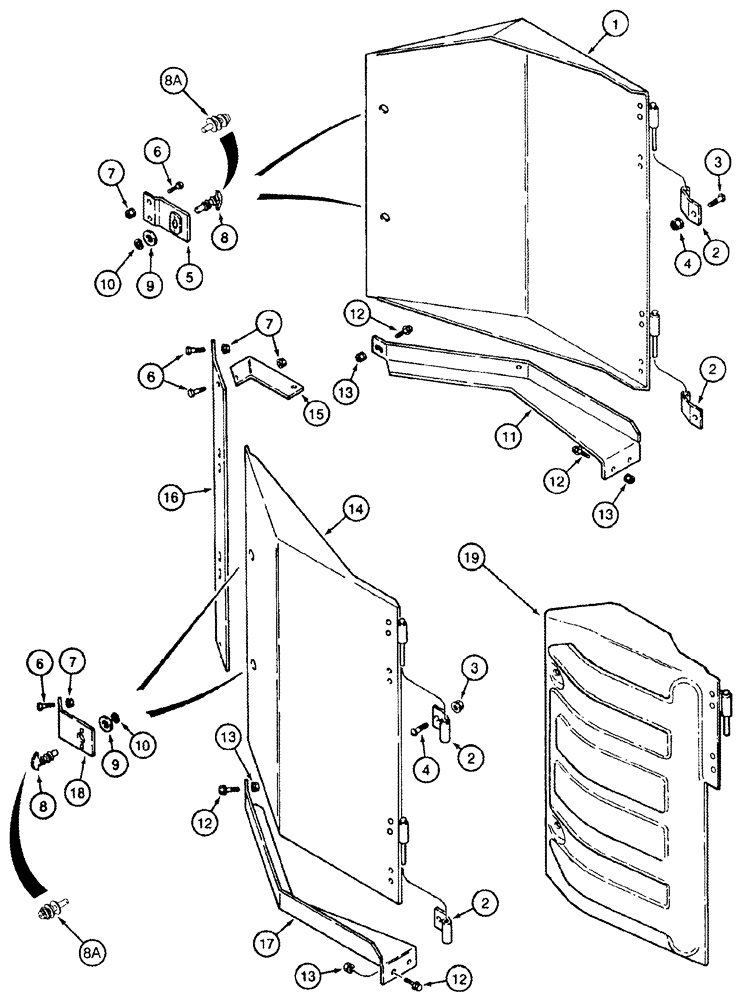

Запчасти Case IH 2555 (09A-41) - FRONT AND REAR DOORS -JJC0157149 (13) - PICKING SYSTEM

1

118129A3

DOOR

Plastic, Front

1шт.

2

1546411C1

HINGE

Door, Front

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

4шт.

5

1546413C1

LATCH

Front

2шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Door Latch

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

8

1326408C2

STUD,25.4mm OD x 52.3mm L

Fastener, If Equipped

4шт.

8a

325149A1

STUD

Fastener, If Equipped

4шт.

9

495-81023

WASHER,17/32" x 1 1/4" x .030"

6 Per Fastener, If Used

24шт.

10

1326407C1

RETAINER

Stud Fastener, If Used

4шт.

11

1990320C2

ANGLE BAR

Front

1шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

14

118126A1

DOOR

Plastic, Rear

1шт.

15

1546428C1

BRACKET

Plate Support

1шт.

16

1546426C1

BRACKET

1шт.

17

117998A1

SUPPORT

Rear Door, Lower

1шт.

18

1546425C1

LATCH

Rear

2шт.

19

182022A3

DOOR

Plastic, Rear, Drum No. 3, 5 Row Narrow

1шт.
