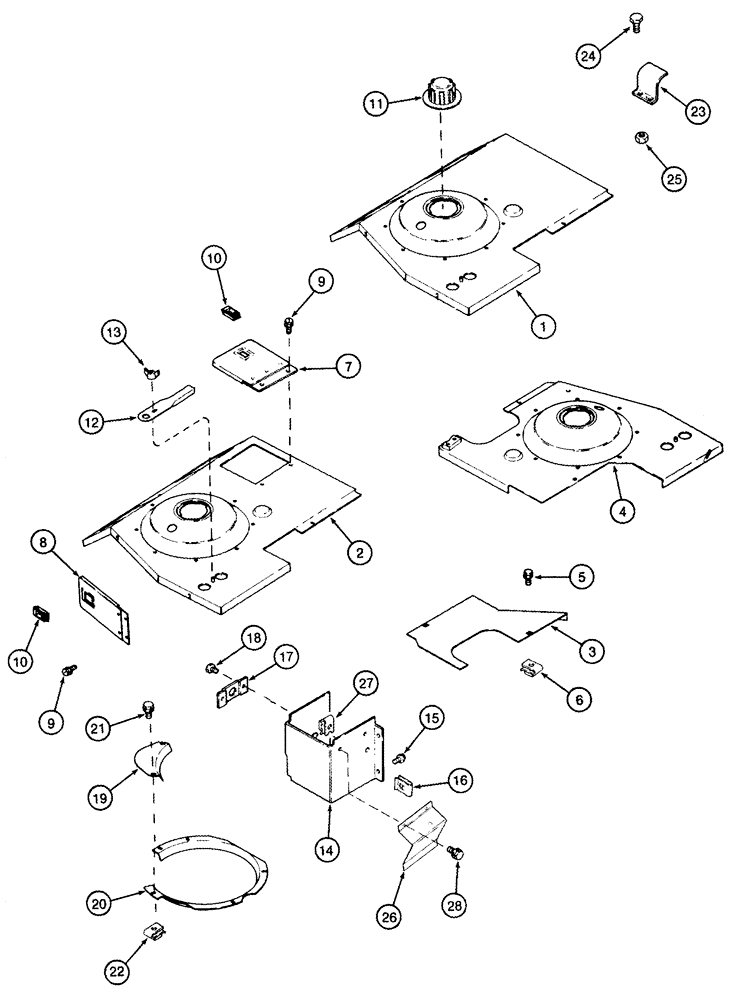

Запчасти Case IH 2555 (09A-39) - COVERS -JJC0157149 (13) - PICKING SYSTEM

1

1982627C1

COVER ASSY

Upper, Front, See Note

1шт.

2

1982724C1

COVER ASSY

Upper, Front, Operator Presence System, See Note

1шт.

3

1990261C2

COVER ASSY

Top, Center, See Note

1шт.

4

1982764C2

COVER ASSY

Top, Rear, See Note

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

19шт.

6

104329C1

NUT

1/4

19шт.

7

1982665C2

COVER ASSY

Access, Large, See Note

1шт.

8

1982669C2

COVER ASSY

Access, Small, See Note

2шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

10

1982673C1

LATCH

Cover

1шт.

11

1982787C2

PLUG

Rotor

2шт.

Note: See pages 9A-163, 9A-165 and 9A-167 for serviceable components.

1шт.

Nota: véase las páginas 9A-163, 9A-165 y 9A-167 para mayor información sobre componentes a los que se les debe hacer mantenimiento.

1шт.

Nota: Veja os componentes com manutenção nas páginas 9A-163, 9A-165 e 9A- 167.

1шт.

12

1982894C2

LOCKING PLATE

Doffer Adjustment

2шт.

13

126177

WING NUT

1/4

2шт.

14

1982729C2

CHANNEL

Tether Storage

1шт.

15

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

91795C1

SUPPORT

Transducer Mounting

1шт.

18

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

1шт.

19

1982858C1

COVER

Access, Picker Bar

2шт.

20

1988726C1

RING

Rotor Guard, Left Hand

1шт.

20

1988727C1

RING

Rotor Guard, Right Hand

1шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

14шт.

22

104329C1

NUT

1/4

14шт.

23

1983176C2

BRACKET

Rotor Wrench

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

26

1982841C1

SUPPORT

Switch Panel

1шт.

27

104329C1

NUT

1/4

2шт.

28

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.
