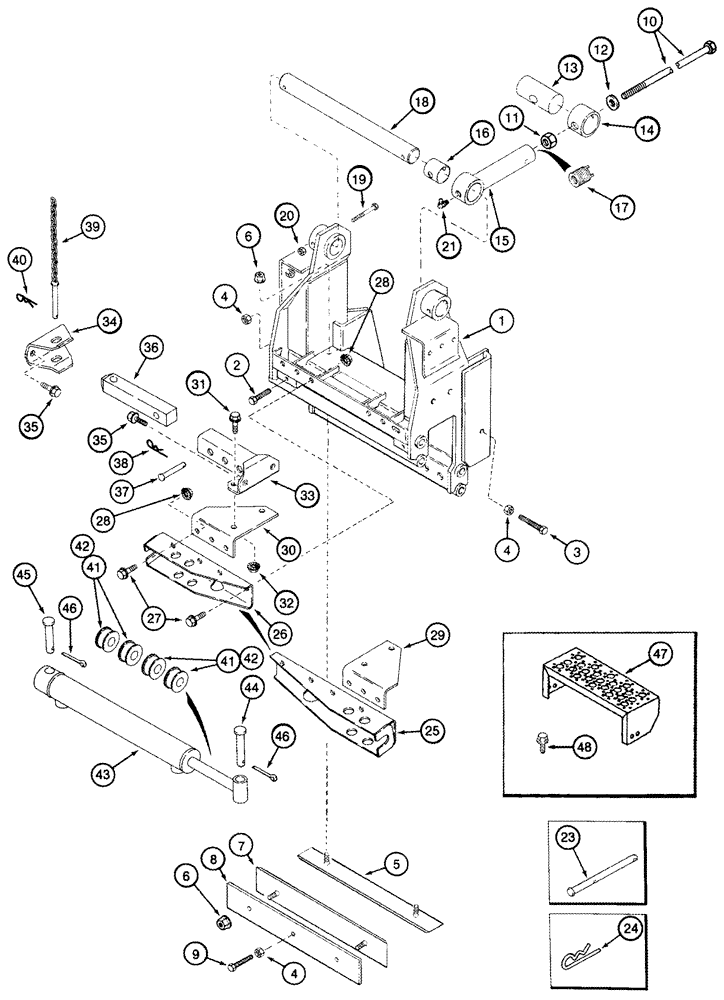

Запчасти Case IH 2555 (09A-33) - DRUM SUPPORT ASSY (13) - PICKING SYSTEM

With Welded Support

1шт.

5 Row Narrow

1шт.

1

1984367C5

SUPPORT ASSY.

5шт.

2

114782A1

BOLT

31шт.

3

114781A1

BOLT

9шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

50шт.

5

1984383C2

WEAR STRIP

Guide Bar Top

5шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

30шт.

7

1984382C3

WEAR STRIP

Front And Rear

10шт.

8

1984381C3

BAR

Protection Strip Support

10шт.

9

113-531

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

10шт.

10

1349841C2

ROD

Front Radius

5шт.

11

429-1012

NUT,3/4"-10, G8

5шт.

12

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

5шт.

13

1982868C1

PIN,50.8mm OD x 110mm L

5шт.

14

1982869C1

SPACER

5шт.

15

1349842C2

END

Radius Rod, Includes 16, 17

5шт.

16

617924R1

BUSHING,41.3mm ID x 44.45mm OD x 44.7mm L

1шт.

17

1994998C1

INSERT

1шт.

18

1983059C2

PIN,41.27mm OD x 445mm L

Front Radius Rod

5шт.

19

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

10шт.

20

231-1446

NUT,3/8" - 16, Gr 5

10шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

5шт.

23

118485A1

PIN,12.7mm OD x 150.75mm L

Support Hold-Down

1шт.

24

586591R1

COTTER PIN

1/8

1шт.

25

129949A2

CONDUIT

Cylinder, Left Hand

1шт.

26

129950A2

CONDUIT

Cylinder, Right Hand

1шт.

With Welded Support

1шт.

5 Row Narrow

1шт.

27

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

28

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

29

129356A1

SUPPORT

Left Hand

1шт.

30

129357A1

SUPPORT

Right Hand

1шт.

31

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

32

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

33

128503A1

SUPPORT

Cylinder Bracket

2шт.

34

128507A1

BRACKET

Cylinder Lock

2шт.

35

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

36

129241A2

BAR

Spacer

2шт.

37

439-11040

HEADED PIN,5/8" x 2", G2

5/8 x 2-1/2; 2

2шт.

38

136-166

COTTER PIN,Int, 9/32" x .120"

9/32 x 2

2шт.

39

137882A1

PIN

Cylinder Lock, Includes Chain

2шт.

40

136-166

COTTER PIN,Int, 9/32" x .120"

9/32 x 2

2шт.

41

137910A1

STOP

Cylinder Stroke Control, 32 inch Row

4шт.

42

137906A1

STOP

Cylinder Stroke Control, 32 inch Row, If Used

4шт.

43

1542544C1

CYLINDER ASSY.

Drum Spread, See Page(s) 8-123

2шт.

44

439-11664

HEADED PIN,1" x 4"

1 x 4; 2

2шт.

45

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

1 x 3-1/2; 2

2шт.

46

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

47

175709A2

STEP

1шт.

48

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

4шт.
