Запчасти Case IH 2555 (09A-32) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM

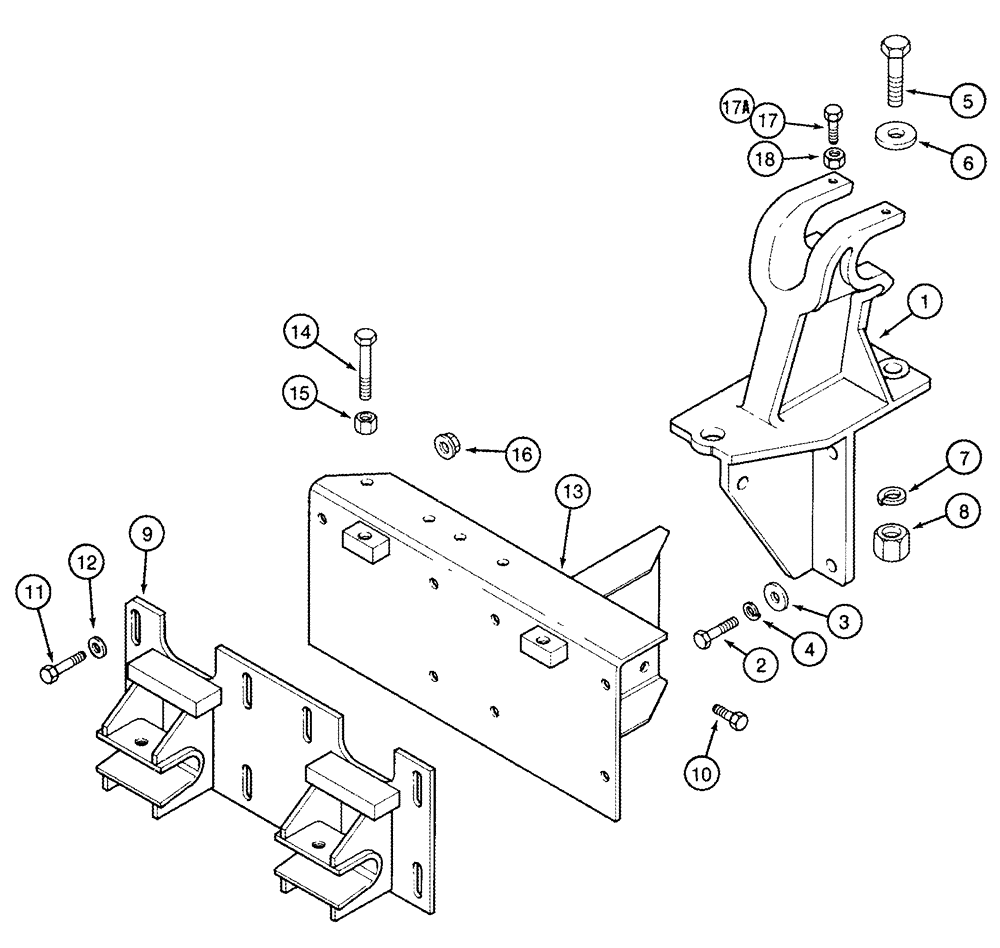

Схема запчастей Case IH 2555 - (09A-32) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM
4
17
3
10
12
6
14
5
7
13
11
18
1
16
2
15
8
9
17a

Артикул

Название

Примечание

Количество

1

1982457C3

SUPPORT

Radius Rod, Right Hand

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

3

495-11053

WASHER,1/2", SAE

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

1984413C3

SUPPORT

Pivot

1шт.

10

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

12

496-41041

WASHER,13/32" x 1 1/8" x .134"

9шт.

13

1984410C3

SUPPORT

Drum Support

1шт.

14

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

2шт.

16

231-5146

FLANGE NUT,3/8"-16

4шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If Used

2шт.

17a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Replaces Items 17 and 18 on Some Models

2шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

If Used

2шт.

Note: Quantity listed is per drum.

1шт.

Nota: La cantidad listada corresponde a cada tambor.

1шт.

Nota: Quantidade contida num tambor.

1шт.

Выбрано товаров: 22
