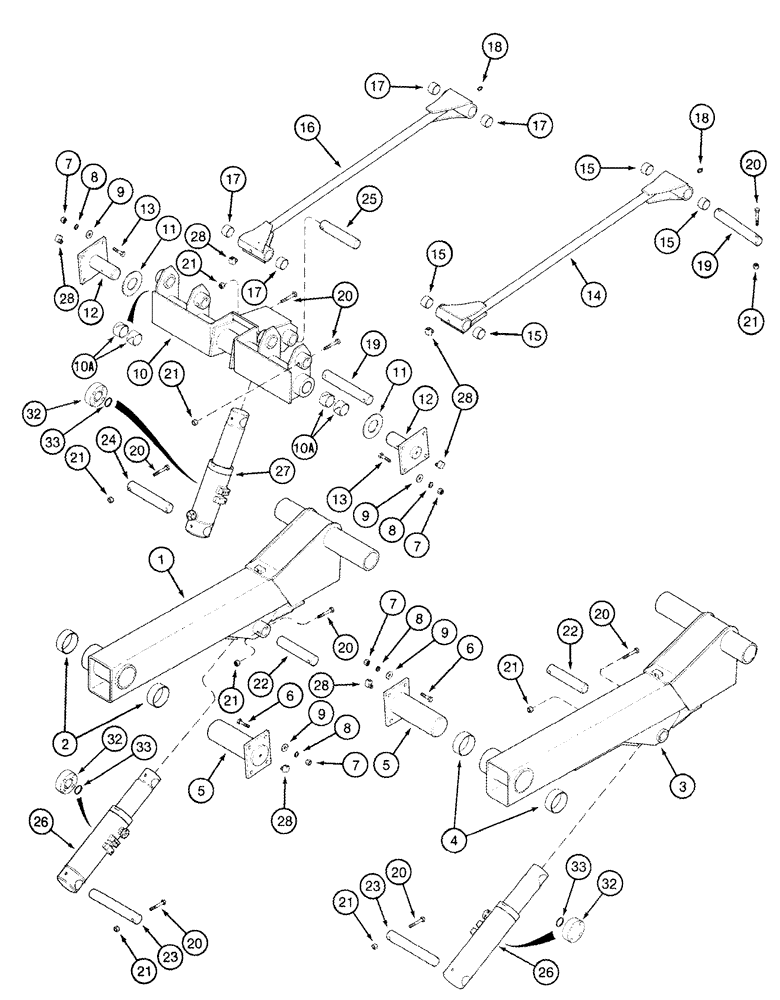

Запчасти Case IH 2555 (09A-30) - DRUM LIFT ARMS (13) - PICKING SYSTEM

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

1

1983036C5

ARM

Left Hand, Includes 2

1шт.

2

115792A1

BUSHING

2шт.

3

1983037C5

ARM

Right Hand, Includes 4

1шт.

4

115792A1

BUSHING

2шт.

5

1983050C2

PIN

2шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

329-108

NUT,1/2"-13, G8

16шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

1982981C2

PIVOT

Kickback, Inc. 10A

1шт.

10a

669644R1

BUSHING

4шт.

11

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2-3/8 x 4-3/4 x 7/32

2шт.

12

1983044C1

PIN

Kickback Pivot

2шт.

13

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

14

1982964C1

ROD

Rear Radius, Right Hand, Includes 15

1шт.

15

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

16

1983171C1

ROD

Rear Radius, Left Hand, Includes 17

1шт.

17

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4 Row Narrow, 5 Row Narrow and 5 Row Wide

1шт.

4 Row Wide - Prior To P.I.N. JJC0157150

1шт.

19

1982990C1

PIN

4шт.

20

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4

14шт.

21

231-4138

LOCK NUT,1/2"-13, GB

14шт.

22

1983053C1

PIN

Lift Cylinder, Upper

2шт.

23

1983054C1

PIN

Lift Cylinder, Lower

2шт.

24

1982991C1

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C1

PIN

Kickback Cylinder, Upper

1шт.

26

107784A1

CYLINDER ASSY.

98 ID x 272 mm strk, Drum Lift, See Page(s) 8-77

2шт.

27

107785A1

CYLINDER ASSY.

102 ID x 185 mm strk, Drum Tilt, See Page(s) 8-121

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

29

295528A1

SWITCH

Proximity, Drum Lift, Drum Tilt, See Page(s) 4-37, 4-41, Not Illustrated

3шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Not Illustrated

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

1/4 x 1, Not Illustrated

4шт.

32

112291A1

COVER

Switch Port

3шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.
