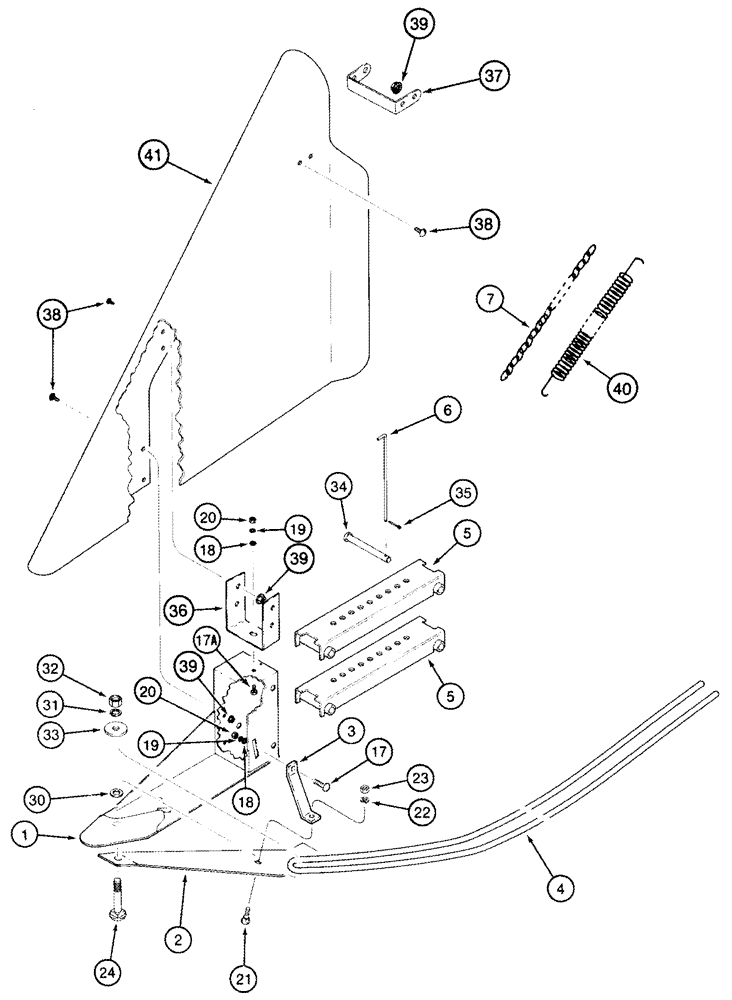

Запчасти Case IH 2555 (09A-27) - PLANT LIFTER (13) - PICKING SYSTEM

Right Hand

1шт.

138968A1

ASSEMBLY

Inc. 1 - 35

1шт.

1

216960C3

SHOE

1шт.

2

216970C4

PLATE

Skid

1шт.

2

326119A1

PLATE

Skid, Without Hard Face

1шт.

3

216972C2

SUPPORT

Skid

1шт.

4

1345016C1

ROD

1шт.

5

220229C6

SUPPORT

2шт.

6

674820R1

PIN,4.76mm OD

Shoe

2шт.

7

87421C1

CHAIN,496mm L

Lift

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

17a

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

19

492-11031

LOCK WASHER,5/16"

2шт.

20

425-105

NUT,5/16"-18, G5

2шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4

1шт.

30

495-81021

WASHER,17/32" x 1" x .120"

17/32 x 1 x 7/64

3шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

1шт.

33

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

17/32 x 1-3/4 x 11/64

1шт.

34

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1/2 x 4-1/4; 2

4шт.

35

432-48

COTTER PIN,1/16" x 1/2"

2шт.

36

126350A1

SUPPORT

Support, Center

1шт.

37

126349A3

SUPPORT

Lifter Body, Upper

1шт.

38

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

5/16 x 3/4 in

10шт.

39

231-1445

NUT,5/16"-18, GB

10шт.

40

292927A1

SPRING

Replaces 655919R1

1шт.

41

126347A2

GUIDE

Plastic, Lifter, Not Included With the Lifting Device, Order Separately

1шт.
