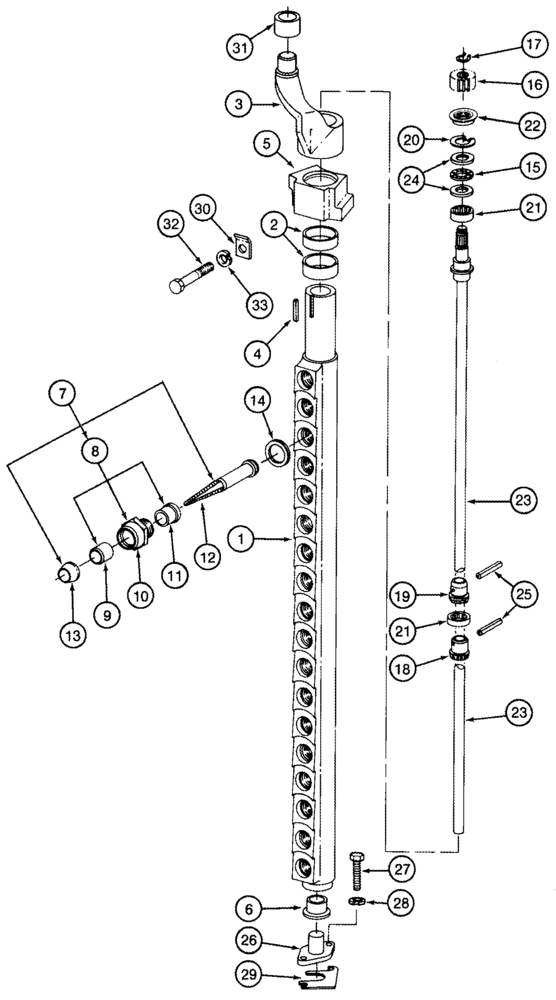

Запчасти Case IH 2555 (09A-22) - PICKER BARS AND SPINDLES (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
x
-JJC024378
1шт.
x
1982391C2
BAR ASSY.
Right Hand, Consists Of 1 - 25
12шт.
x
1982390C2
BAR ASSY.
Left Hand, Consists Of 1 - 25, Not Illustrated
12шт.
1
1982393C1
BAR
Right Hand
1шт.
1a
1982392C1
BAR
Left Hand, Not Illustrated
1шт.
2
223634C1
SLEEVE,41.93mm ID x 43.98mm OD x 21.5mm L
2шт.
3
216505C3
ARM
Right Hand
1шт.
3a
216504C3
ARM
Left Hand, Not Illustrated
1шт.
4
Q5024
KEY,3/16" Sq x 1", Par
1шт.
5
1982394C2
BEARING,48.97 mm ID x 39 mm
1шт.
x
238-6132
O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro
2шт.
6
669815R3
BUSHING,19.16mm ID x 28.78mm OD x 20.62mm L
1шт.
7
251396A1
SPINDLE
030 Chrome, Right Hand, Includes 8 - 13
18шт.
7a
251397A1
SPINDLE
030 Chrome, Left Hand, Includes 8 - 13, Not Illustrated
18шт.
8
1994866C1
RING ASSY.
Right Hand, Includes 9 - 11
1шт.
8a
1994865C1
RING ASSY.
Left Hand, Includes 9 - 11, Not Illustrated
1шт.
9
1994863C1
BUSHING,12.72mm ID x 15.27mm OD x 19mm L
1шт.
10
NSS
NOT SOLD SEPARAT
Holder, Right Hand
1шт.
10a
NSS
NOT SOLD SEPARAT
Holder, Left Hand, Not Illustrated
1шт.
11
1994864C1
BUSHING,12.72mm ID x 21mm OD x 15mm L
1шт.
x
-JJC024378
1шт.
x
1982391C2
BAR ASSY.
Consists Of 1 - 25
12шт.
x
1982390C2
BAR ASSY.
Consists Of 1 - 25, Not Illustrated
12шт.
12
216547C2
FINGER
030 Chrome, Right Hand
1шт.
12a
216546C2
SPINDLE
030 Chrome, Left Hand, Not Illustrated
1шт.
13
216554C1
SHIELD
1шт.
14
674980R2
SHIM,25.77mm ID x 31.75mm OD x 0.31mm Thk
(0.012")
1шт.
14
11264R
SHIM,25.77mm ID x 31.75mm OD x 0.2mm Thk
(0.008")
1шт.
14
1994989C1
SPACER
0,15 mm (0,006 in)
1шт.
14
202099C1
SPACER
0,10 mm (0,004 in)
1шт.
15
372070R91
BEARING ASSY,15.93mm ID x 28.32mm OD x 1.98mm W
1шт.
16
216584C3
GEAR
Spindle Drive Shaft
1шт.
17
100-1150
SNAP RING,#50, Ext
1шт.
18
10053RA
GEAR
Long
5шт.
19
10054RA
GEAR
Short
13шт.
20
100-21112
SNAP RING,1.125", Int, #112
1шт.
21
3139062R91
BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W
6шт.
22
1982364C1
SEAL,28.73mm ID x 36mm OD x 4.78mm Thk
1шт.
23
216578C3
SHAFT
1шт.
24
216581C1
THRUST WASHER,15.93mm ID x 28.32mm OD x 2.41mm Thk
2шт.
25
38-1916
LOCK PIN,3.56mm OD x 25.4mm L, Coiled
9/64" x 1", Slotted
18шт.
26
214910C2
PIVOT
24шт.
27
114-105
BOLT,Hex, 5/16" - 24 x 5/8", Gr 5
48шт.
28
92-11031
LOCK WASHER,5/16"
48шт.
29
1338189C1
SHIM,0.05mm Thk
0,05 mm (0,002 in)
1шт.
29
669817R1
SHIM,0.08mm Thk
0,08 mm (0,003 in)
1шт.
29
669818R1
SHIM,0.18mm Thk
0,13 mm (0,005 in)
1шт.
29
669819R1
SHIM,0.18mm Thk
0,18 mm (0,007 in)
1шт.
29
669820R1
SHIM,0.25mm Thk
0,25 mm (0,010 in)
1шт.
30
1994935C1
LARGE PLATE
PLATE, LARGE , Journal Bearing
24шт.
31
86948C1
ROLLER,34.93mm OD x 20mm L
24шт.
32
426-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
24шт.
33
492-11038
LOCK WASHER,3/8"
24шт.
x
JJC0249378-
1шт.
x
362085A1
BAR ASSY.
Right Hand, Inc. 1 - 25
12шт.
x
362084A1
BAR ASSY.
Left Hand, Inc. 1 - 25, Not Illustrated
12шт.
1
1982393C1
BAR
Right Hand
1шт.
1a
1982392C1
BAR
Left Hand, Not Illustrated
1шт.
2
223634C1
SLEEVE,41.93mm ID x 43.98mm OD x 21.5mm L
2шт.
3
216505C3
ARM
Right Hand
1шт.
3a
216504C3
ARM
Left Hand, Not Illustrated
1шт.
4
Q5024
KEY,3/16" Sq x 1", Par
1шт.
5
1982394C2
BEARING,48.97 mm ID x 39 mm
1шт.
x
238-6132
O-RING,0.103" Thk x 1.737" ID, -132, Cl 6, 90 Duro
2шт.
6
669815R3
BUSHING,19.16mm ID x 28.78mm OD x 20.62mm L
1шт.
7
364348A1B
SPINDLE
Complete Assembly
18шт.
7
364348A1
MANDREL
0,090 Chrome, Right Hand, Inc. 8 - 13
18шт.
Subbed To Components
1шт.
7
364883A1
SPINDLE
0,050 Chrome, Right Hand, Inc. 8 - 13
18шт.
7a
364347A1
SPINDLE
0,090 Chrome, Left Hand, Inc. 8 - 13
18шт.
7a
364882A1
SPINDLE
0,050 Chrome, Left Hand, Inc. 8 - 13
18шт.
8
364768A1
HOLDER
Right Hand, Inc. 9 - 11
1шт.
8a
364767A1
HYD CONNECTOR
Left Hand, Inc. 9 - 11
1шт.
9
1994863C1
BUSHING,12.72mm ID x 15.27mm OD x 19mm L
1шт.
10
NSS
NOT SOLD SEPARAT
Holder, Right Hand
1шт.
10a
NSS
NOT SOLD SEPARAT
Holder, Left Hand
1шт.
11
1994864C1
BUSHING,12.72mm ID x 21mm OD x 15mm L
1шт.
x
JJC024378-
1шт.
x
362085A1
BAR ASSY.
Inc. 1 - 25
12шт.
x
362084A1
BAR ASSY.
Inc. 1 - 25, Not Illustrated
12шт.
12
346042A1
SPINDLE
0,090 Chrome, Right Hand
1шт.
12
346040A1
SPINDLE
0,050 Chrome, Right Hand
1шт.
12a
346041A1
SPINDLE
0,090 Chrome, Left Hand
1шт.
12b
346039A1
SPINDLE
0,050 Chrome, Left Hand
1шт.
13
364607A1
SHIELD
1шт.
14
674980R2
SHIM,25.77mm ID x 31.75mm OD x 0.31mm Thk
(0.012")
1шт.
14
11264R
SHIM,25.77mm ID x 31.75mm OD x 0.2mm Thk
(0.008")
1шт.
14
1994989C1
SPACER
0,15 mm (0,006 in)
1шт.
14
202099C1
SPACER
0,10 mm (0,004 in)
1шт.
15
372070R91
BEARING ASSY,15.93mm ID x 28.32mm OD x 1.98mm W
1шт.
16
216584C3
GEAR
Spindle Drive Shaft
1шт.
17
100-1150
SNAP RING,#50, Ext
1шт.
18
10053RA
GEAR
Long
5шт.
19
10054RA
GEAR
Short
13шт.
20
100-21112
SNAP RING,1.125", Int, #112
1шт.
21
3139062R91
BEARING, NEEDLE,Needle, 22.21mm ID x 31.88mm OD x 9.53mm W
6шт.
22
1982364C1
SEAL,28.73mm ID x 36mm OD x 4.78mm Thk
1шт.
23
216578C3
SHAFT
1шт.
24
216581C1
THRUST WASHER,15.93mm ID x 28.32mm OD x 2.41mm Thk
2шт.
25
38-1916
LOCK PIN,3.56mm OD x 25.4mm L, Coiled
9/64" x 1", Slotted
18шт.
26
214910C2
PIVOT
24шт.
27
114-105
BOLT,Hex, 5/16" - 24 x 5/8", Gr 5
48шт.
28
92-11031
LOCK WASHER,5/16"
48шт.
29
1338189C1
SHIM,0.05mm Thk
0,05 mm (0,002 in)
1шт.
29
669817R1
SHIM,0.08mm Thk
0,08 mm (0,003 in)
1шт.
29
669818R1
SHIM,0.18mm Thk
0,13 mm (0,005 in)
1шт.
29
669819R1
SHIM,0.18mm Thk
0,18 mm (0,007 in)
1шт.
29
669820R1
SHIM,0.25mm Thk
0,25 mm (0,010 in)
1шт.
30
1994935C1
LARGE PLATE
PLATE, LARGE , Journal Bearing
24шт.
31
86948C1
ROLLER,34.93mm OD x 20mm L
24шт.
32
426-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
24шт.
33
492-11038
LOCK WASHER,3/8"
24шт.
