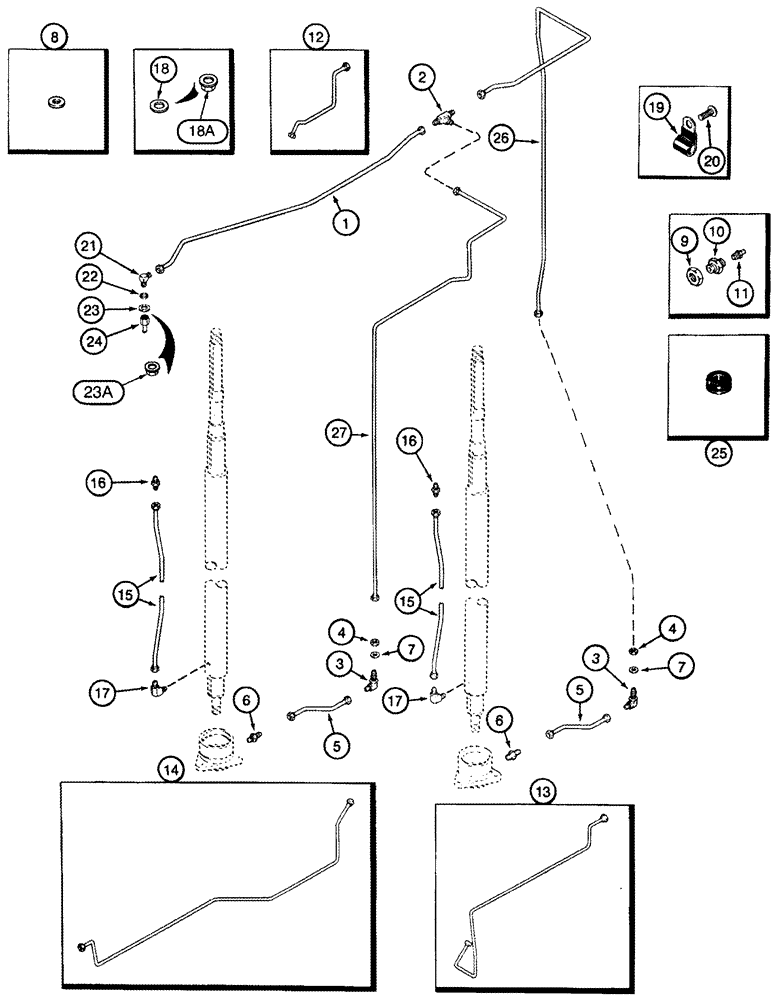

Запчасти Case IH 2555 (09A-21) - DRUM GREASE SYSTEM (13) - PICKING SYSTEM
№
Артикул
Название
Примечание
Количество
1
1984333C1
HYD TUBE
Rotor Grease Supply, Right Hand
1шт.
2
218-593
TEE,9/16"-18, 37 Degree
1шт.
3
218-693
ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree
2шт.
4
218-1254
LOCK NUT,Blkhd, 9/16"-18
2шт.
5
1546332C2
TUBE,0.375" OD, 176.08 mm Length
Grease, Lower Rear
2шт.
6
122595A1
ADAPTER
Special
2шт.
7
495-81170
WASHER,0.59" ID x 0.94" OD x 0.02" Thk
19/32 x 5/16 x 1/64
2шт.
8
495-11059
WASHER,9/16"
19/32 x 1-5/32 x 3/32
1шт.
9
F53473
LOCK NUT,1/8-27 NPSM
3шт.
10
1990056C1
FITTING
7/16 x 1/8 PT, Straight
3шт.
11
219-8
LUBE NIPPLE,1/4" - 28 NPTF
3шт.
12
1988702C1
HYD TUBE
Gear, Upper Front, Right Hand
1шт.
13
1988704C1
HYD TUBE
Gear, Lower Front, Right Hand
1шт.
14
1988706C2
HYD TUBE
Gear, Upper Rear
1шт.
15
1984408C1
HYD TUBE,0.375" OD
Rotor Grease
2шт.
17
218-483
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
2шт.
18
1988718C1
SPACER
Grease Inlet, Replaced By 218-1254, REF 18A
1шт.
18a
218-1254
LOCK NUT,Blkhd, 9/16"-18
Grease Inlet
1шт.
19
515-2148
CLAMP,3/16", Insul, 1/4" Bolt
2шт.
20
276-1478
SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"
Note: Quantity listed is per drum.
2шт.
21
218-483
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
1шт.
22
1988718C1
SPACER
Replaced By 218-1254, REF 23A
1шт.
23
495-11059
WASHER,9/16"
19/32 x 1-5/32 x 3/32, Replaced By 218-1254, REF 23A
1шт.
23a
218-1254
LOCK NUT,Blkhd, 9/16"-18
1шт.
24
217-180
FITTING,3/8" Hose Barb x 1/4" Female NPTF
Straight
1шт.
25
198823C1
GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk
Rubber
2шт.
26
113687A1
HYD TUBE
Rotor, Front Lubrication Supply
1шт.
27
113682A1
HYD TUBE,0.375" OD, 927, 352 mm Length
Rotor, Rear Lubrication Supply
1шт.
Note: Quantity listed is per drum.
1шт.
Nota: La cantidad listada corresponde a cada tambor.
1шт.
Nota: Quantidade contida num tambor.
1шт.
Выбрано товаров: 32
