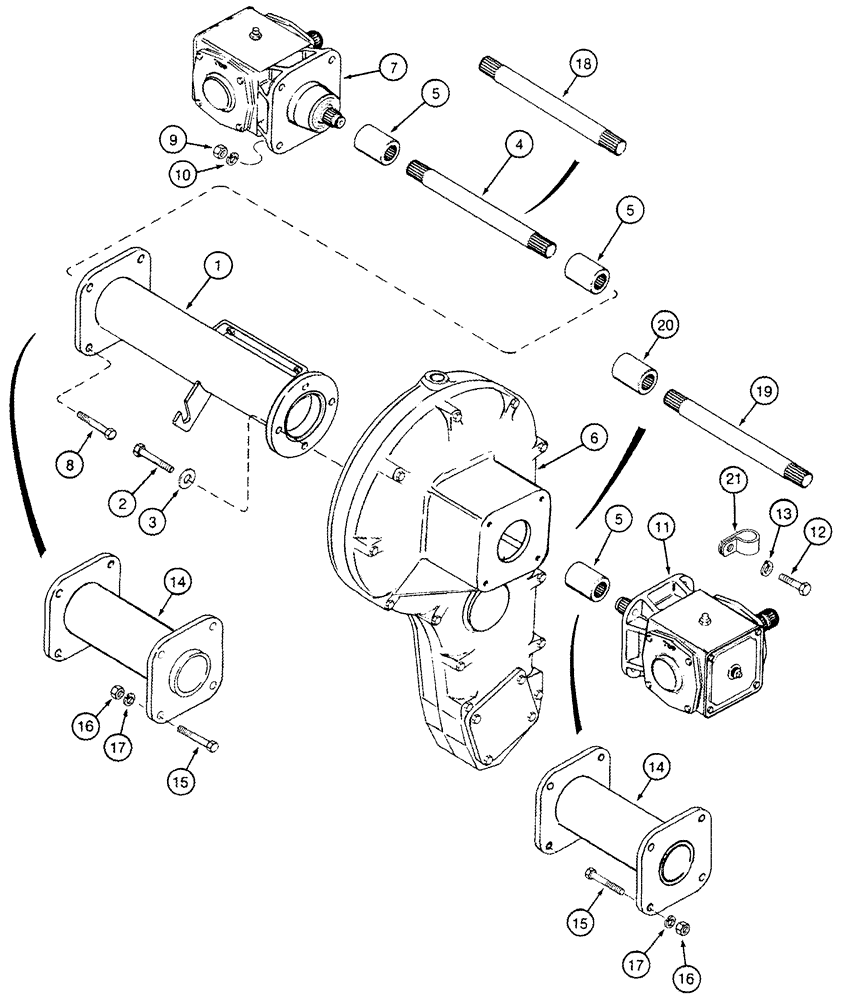

Запчасти Case IH 2555 (09A-17) - DRUM DRIVE (13) - PICKING SYSTEM

*

Gearbox Couplers and Support

1шт.

1

1342663C3

SUPPORT

Bevel Box

1шт.

2

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

3

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

1342674C3

SHAFT

Drum Drive Coupler, Not Used on 5 Row Wide Models, Use Items 18-20 for 5 Row Wide Models

1шт.

5

1342672C2

COUPLING

Shaft

3шт.

6

119860A3

DRIVE ASSY.

Drum, See Page(s) 9A-5, 9A-7

1шт.

6

119860A3R

REMAN-GEARBOX

2555 CASE IH COTTON EXPRESS COTTON PICKER (BEFORE S/N JJC0249499), Drum

1шт.

6

119860A3C

CORE-GEARBOX

Return Number

1шт.

7

1988646C2

GEARBOX ASSY

Drum Drive - Left Hand, See Page(s) 9A-55, 9A-57

1шт.

338161A2R

REMAN-GEARBOX

2555 (BEFORE S/N JJC0249499), Reman for New PN 1988646C2

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

1988647C2

GEARBOX ASSY

Drum Drive - Right Hand, - JJC0249298, See Page(s) 9A-59, 9A-61

1шт.

11

1988647C4

GEARBOX ASSY

Drum Drive - Right Hand, JJC0249298-, See Page(s) 9A-63B, 9A-63D

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

*

Gearbox Couplers and Support

1шт.

*

Additional Parts for Five Row Wide Models

1шт.

14

113086A2

EXTENSION

Bevel Box

2шт.

15

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

16

425-108

NUT,1/2" - 13, Gr 5

8шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

18

113084A2

SHAFT

Drum Drive Coupler, Left Hand

1шт.

19

113085A2

SHAFT

Drum Drive Coupler, Right Hand

1шт.

20

1342672C2

COUPLING

Shaft

1шт.

21

240450A2

CLAMP

1шт.
