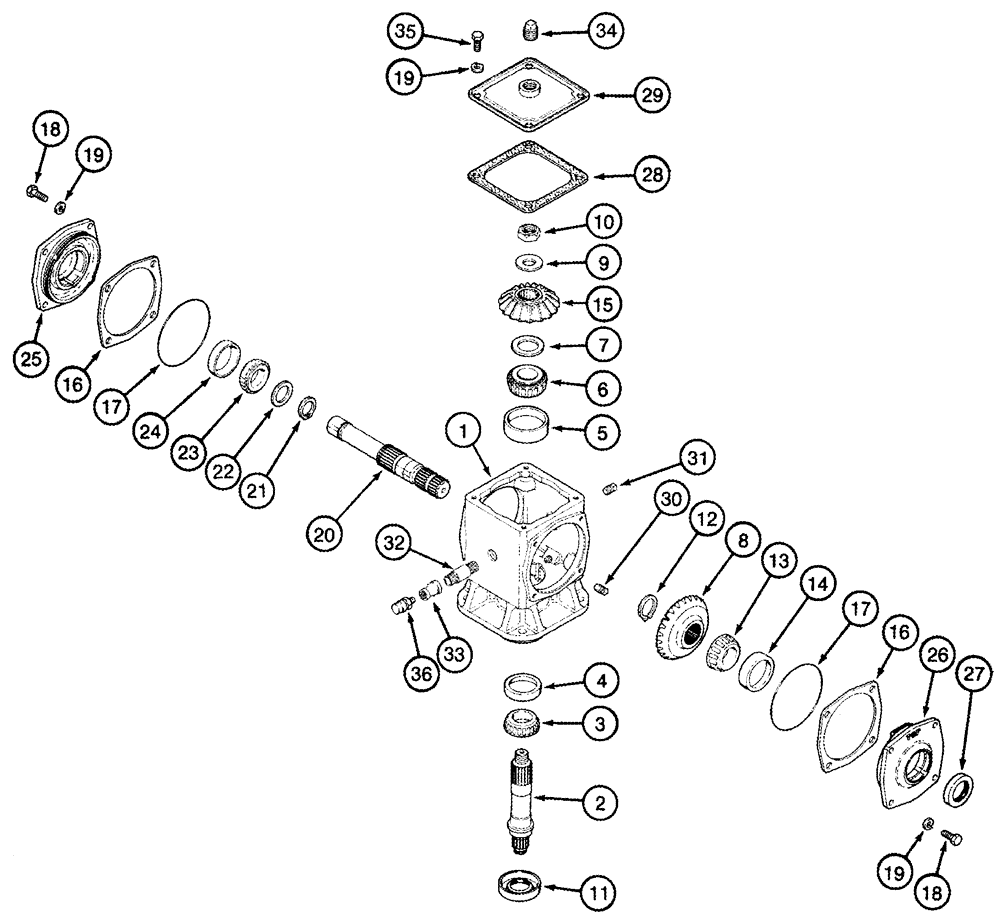

Запчасти Case IH 2555 (09A-14) - GEARBOX (13) - PICKING SYSTEM

Drum Drive - Left Hand

1шт.

1988646C2

GEARBOX ASSY

Consists Of 1 - 36

1шт.

338161A2R

REMAN-GEARBOX

2555 (BEFORE S/N JJC0249499), Reman for New PN 1988646C2

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

1

1982406C2

HOUSING

1шт.

2

1982402C1

SHAFT

Output, Vertical

1шт.

3

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

1шт.

4

536054R1

BEARING CUP,60mm OD x 11.94mm W

1шт.

5

165964R1

BEARING CUP

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1шт.

86814C1

SHIM KIT

Consists Of 7

1шт.

7

NSS

NOT SOLD SEPARAT

3,80 mm (0,150 in), Shim, 1 In Kit

1шт.

7

NSS

NOT SOLD SEPARAT

3,50 mm (0,138 in), Shim, 1 In Kit

1шт.

7

NSS

NOT SOLD SEPARAT

3,20 mm (0,125 in), Shim, 1 In Kit

1шт.

7

NSS

NOT SOLD SEPARAT

0,80 mm (0,003 in), Shim, 4 in Kit

1шт.

8

223843C1

PINION

1шт.

9

1982956C1

WASHER

1шт.

10

185216C1

LOCK NUT

7/8 NF

1шт.

11

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

Vertical Shaft

1шт.

12

100-16137

SNAP RING,#137. Ext

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

14

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

15

223844C1

PINION

1шт.

86815C1

SHIM KIT

Consists Of 16

2шт.

16

NSS

NOT SOLD SEPARAT

0,080 mm (0,003 in), Shim, 2 In Kit

1шт.

16

NSS

NOT SOLD SEPARAT

0,130 mm (0,005 in), Shim, 2 In Kit

1шт.

16

NSS

NOT SOLD SEPARAT

0,180 mm (0,007 in), Shim, 2 In Kit

1шт.

16

NSS

NOT SOLD SEPARAT

0,30 mm (0,011 in), Shim, 2 In Kit

1шт.

16

NSS

NOT SOLD SEPARAT

0,51 mm (0,020 in), Shim, 1 In Kit

1шт.

Drum Drive - Left Hand

1шт.

1988646C2

GEARBOX ASSY

Consists Of 1 - 36, Continued From Previous Page

1шт.

17

304214A1

O-RING

4-1/2 ID x 3/32

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

19

492-11038

LOCK WASHER,3/8"

12шт.

20

1286312C2

SHAFT

261 mm (10-1/4), Drum Drive Cross

1шт.

21

100-16125

SNAP RING,#125, Ext

1шт.

22

223866C1

WASHER

32 x 45 x 2,5

1шт.

23

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

1-1/4 ID

1шт.

24

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

2-7/16 OD

1шт.

25

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

Bearing, Closed

1шт.

26

1286295C1

BEARING CAP

Bearing, Shaft End

1шт.

27

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

Cross Shaft

1шт.

28

86822C2

GASKET,1.58mm Thk

1шт.

29

223857C1

COVER

Housing

1шт.

30

86819C1

PLUG

1/4 PT, Magnetic

1шт.

31

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

32

221-190

PIPE,Nipple, 1/2" NPT x 2"

1/2 PT x 2, Straight

1шт.

33

221-1347

FITTING

1/2 x 1/8

1шт.

34

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1/8 PT x 1, Includes Felt Washer

1шт.
