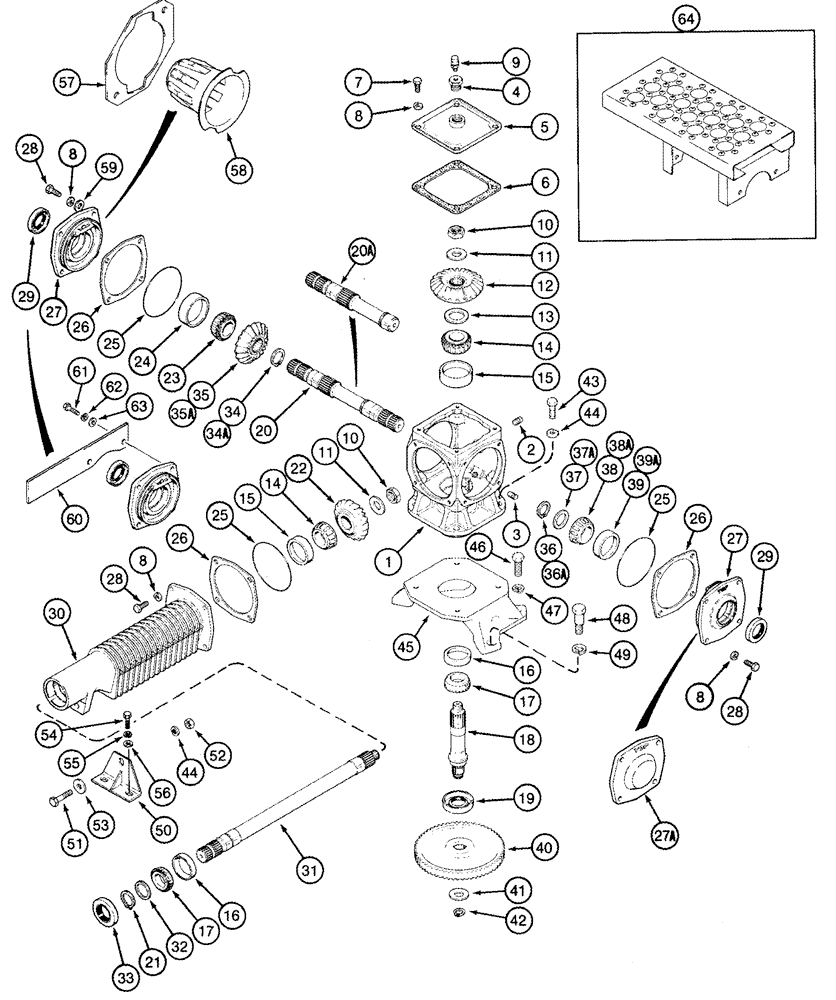

Запчасти Case IH 2555 (09A-12) - GEARBOX (13) - PICKING SYSTEM

Drum Number 2 (4 Row Wide)

1шт.

Drum Number 1 (4 Row Narrow)

1шт.

Drum Number 2 (5 Row Narrow and 5 Row Wide)

1шт.

1984295C2

GEARBOX ASSY

Drum Drive, 4 Row Narrow, No. 1, 5 Row Narrow and 5 Row Wide, No. 2, Consists Of 1 - 39A

1шт.

127437A1

GEARBOX ASSY

Drum Drive, 4 Row Wide, No. 2, Consists Of 1 - 39A

1шт.

1

1982405C3

HOUSING

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

86819C1

PLUG

Magnetic

1шт.

4

28796R1

ORIFICE

Straight

1шт.

5

223857C1

COVER

Housing

1шт.

6

86822C2

GASKET,1.58mm Thk

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

16шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Includes Felt Washer

1шт.

10

185216C1

LOCK NUT

7/8 NF

2шт.

11

1982956C1

WASHER

2шт.

12

1546152C1

PINION

Output Shaft

1шт.

86814C1

SHIM KIT

Consists Of 13

1шт.

13

NSS

NOT SOLD SEPARAT

3,80 mm (0,150 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

3,50 mm (0,138 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

3,20 mm (0,125 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

0,80 mm (0,003 in), Shim, 4 in Kit

1шт.

Drum Number 2 (4 Row Wide)

1шт.

Drum Number 1 (4 Row Narrow)

1шт.

Drum Number 2 (5 Row Narrow and 5 Row Wide)

1шт.

1984295C2

GEARBOX ASSY

Drum Drive, Continued From Previous Page

1шт.

127437A1

GEARBOX ASSY

Drum Drive, Continued From Previous Page

1шт.

14

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

2шт.

15

165964R1

BEARING CUP

2шт.

16

536054R1

BEARING CUP,60mm OD x 11.94mm W

2шт.

17

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

18

1982402C1

SHAFT

Output, Gearbox

1шт.

19

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

1шт.

20

1982398C1

SHAFT

339 mm (13-3/8), Included With 1984295C2

1шт.

20a

1286312C2

SHAFT

261 mm (10-1/4), Included With 127437A1

1шт.

21

103-16137

SNAP RING,#137. Ext

1шт.

22

1546151C1

PINION

19T, Input and Cross Shaft

1шт.

23

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

1шт.

25

304214A1

O-RING

4-1/2 ID x 3/32

3шт.

86815C1

SHIM KIT

Consists Of 26

3шт.

26

NSS

NOT SOLD SEPARAT

0,80 mm (0,003 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,130 mm (0,005 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,180 mm (0,007 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,30 mm (0,011 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,51 mm (0,020 in), Shim, 1 In Kit

1шт.

Drum Number 2 (4 Row Wide)

1шт.

Drum Number 1 (4 Row Narrow)

1шт.

Drum Number 2 (5 Row Narrow and 5 Row Wide)

1шт.

1984295C2

GEARBOX ASSY

Drum Drive, Consists Of 1 - 39A, Continued From Previous Page

1шт.

127437A1

GEARBOX ASSY

Drum Drive, Consists Of 1 - 39A, Continued From Previous Page

1шт.

27

1546154C1

BEARING CAP,57.15 mm ID x 125.374 mm OD x 21 mm

Bearing, Open, Used With 1982398C1, Both Ends, See Page(s) 9A-45, REF 20, Used With 1286312C2, Splined End Only, See Page(s) 9A-45, REF 20A

2шт.

27a

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

Bearing, Closed, Used With 1286312C2, Non-Splined End, See Page(s) 9A-45, REF 20A

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10-12шт.

29

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

1-2шт.

30

1990286C1

HOUSING

Shaft and Bearing

1шт.

31

1982407C2

SHAFT

Input

1шт.

32

199883C1

WASHER,35.08mm ID x 44.93mm OD x 2.51mm Thk

1шт.

33

1990324C1

SEAL,34.88mm ID x 66.73mm OD x 8mm Thk

Input Shaft

1шт.

34

100-16150

SNAP RING,#150, Ext

Used with 1982398C1, see page(s) 9A-45, ref 20

1шт.

Drum Number 2 (4 Row Wide)

1шт.

Drum Number 1 (4 Row Narrow)

1шт.

Drum Number 2 (5 Row Narrow and 5 Row Wide)

1шт.

1984295C2

GEARBOX ASSY

Drum Drive, Continued From Previous Page

1шт.

127437A1

GEARBOX ASSY

Drum Drive, Continued From Previous Page

1шт.

34a

100-16125

SNAP RING,#125, Ext

Used with 1286312C2, see page(s) 9A-45, ref 20A

1шт.

35

1546153C1

PINION

Used With 1982398C!, See Page(s) 9A-45, REF 20

1шт.

35a

1546151C1

PINION

Used With 1286312C2, See Page(s) 9A-45, REF 20A

1шт.

36

103-16137

SNAP RING,#137. Ext

1шт.

37

199883C1

WASHER,35.08mm ID x 44.93mm OD x 2.51mm Thk

Used With 1982398C1, 1286312C2, See Page(s) 9A-45; REF 20, 20A

1шт.

37a

223866C1

WASHER

Used as a Spacer, Used With 1286312C2, See Page(s) 9A-45, REF 20A

1шт.

38

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Used With 1982398C1, See Page(s) 9A-45, REF 20

1шт.

38a

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

Used With 1286312C2, See Page(s) 9A-45, REF 20A

1шт.

39

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Used with 1982398C1, See Page(s) 9A-45, Ref 20

1шт.

39a

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

Used With 1286312C2, See Page(s) 9A-45, REF 20A

1шт.

Drum Number 2 (4 Row Wide)

1шт.

Drum Number 1 (4 Row Narrow)

1шт.

Drum Number 2 (5 Row Narrow and 5 Row Wide)

1шт.

40

1982400C1

PINION

1шт.

41

1982956C1

WASHER

1шт.

42

100-1687

SNAP RING,#87, Ext

1шт.

43

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

44

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

45

1982422C1

SUPPORT

1шт.

46

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

47

492-11062

BEARING WASHER,5/8"

2шт.

48

1982634C2

BOLT

2шт.

49

892-11020

LOCK WASHER,M20

2шт.

50

1990337C1

SUPPORT

1шт.

51

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

52

425-108

NUT,1/2" - 13, Gr 5

1шт.

53

495-21056

WASHER,1/2"

1шт.

54

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

55

492-11038

LOCK WASHER,3/8"

2шт.

56

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

57

1988839C1

LARGE PLATE

PLATE, LARGE , Shield Cover, If Used

1шт.

58

1278685C1

COVER

Shield, If Used

1шт.

59

495-21044

WASHER,3/8"

If Used

2шт.

60

194312A1

LARGE PLATE

PLATE, LARGE , Stop, Drum Number 2 (4 Row Wide)

1шт.

61

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

62

492-11038

LOCK WASHER,3/8"

2шт.

63

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

64

184301A1

STEP

Drum Number 2 (4 Row and 5 Row Narrow)

2шт.
