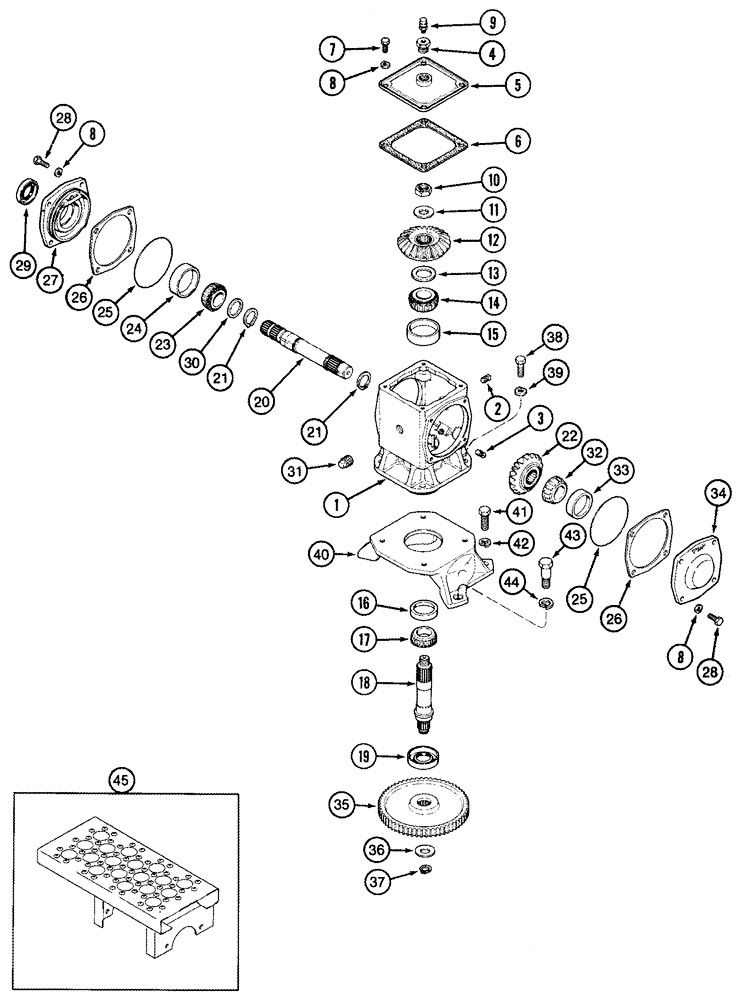

Запчасти Case IH 2555 (09A-10) - GEARBOX (13) - PICKING SYSTEM

Drum Number 1 (4 Row Wide)

1шт.

Drum Number 1 (5 Row Wide)

1шт.

Drum Number 4 (4 Row Wide)

1шт.

Drum Number 5 (5 Row Narrow)

1шт.

Drum Number 1 (5 Row Narrow)

1шт.

1984298C2

GEARBOX ASSY

Drum Drive, Consists Of 1 - 34

1шт.

1

1982406C2

HOUSING

Drum Drive Gearbox

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

86819C1

PLUG

Magnetic

1шт.

4

28796R1

ORIFICE

Straight

1шт.

5

223857C1

COVER

Housing

1шт.

6

86822C2

GASKET,1.58mm Thk

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

16шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

Includes Felt Washer

1шт.

10

185216C1

LOCK NUT

7/8 NF

1шт.

11

1982956C1

WASHER

1шт.

12

223843C1

PINION

Output Shaft

1шт.

86814C1

SHIM KIT

Consists Of 13

1шт.

13

NSS

NOT SOLD SEPARAT

3,80 mm (0,150 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

3,50 mm (0,138 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

3,20 mm (0,125 in), Shim, 1 In Kit

1шт.

13

NSS

NOT SOLD SEPARAT

0,80 mm (0,003 in), Shim, 4 in Kit

1шт.

Drum Number 1 (4 Row Wide)

1шт.

Drum Number 1 (5 Row Wide)

1шт.

Drum Number 4 (4 Row Wide)

1шт.

Drum Number 5 (5 Row Narrow)

1шт.

Drum Number 1 (5 Row Narrow)

1шт.

1984298C2

GEARBOX ASSY

Drum Drive, Consists Of 1 - 34, Continued From Previous Page

1шт.

14

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1шт.

15

165964R1

BEARING CUP

1шт.

16

536054R1

BEARING CUP,60mm OD x 11.94mm W

1шт.

17

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

1шт.

18

1982402C1

SHAFT

Output, Gearbox

1шт.

19

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

Output Shaft

1шт.

20

1339293C1

SHAFT

Drum Drive

1шт.

21

103-16137

SNAP RING,#137. Ext

2шт.

22

223844C1

PINION

19T, Input and Cross Shaft

1шт.

23

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1-3/8 ID

1шт.

24

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2-1/2 OD

1шт.

25

304214A1

O-RING

4-1/2 ID x 3/32

2шт.

86815C1

SHIM KIT

Consists Of 26

2шт.

26

NSS

NOT SOLD SEPARAT

0,080 mm (0,003 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,130 mm (0,005 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,180 mm (0,007 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,30 mm (0,011 in), Shim, 2 In Kit

1шт.

26

NSS

NOT SOLD SEPARAT

0,51 mm (0,020 in), Shim, 1 In Kit

1шт.

Drum Number 1 (4 Row Wide)

1шт.

Drum Number 1 (5 Row Wide)

1шт.

Drum Number 4 (4 Row Wide)

1шт.

Drum Number 5 (5 Row Narrow)

1шт.

Drum Number 1 (5 Row Narrow)

1шт.

1984298C2

GEARBOX ASSY

Drum Drive, Consists Of 1 - 34, Continued From Previous Page

1шт.

27

1286295C1

BEARING CAP

Bearing, Open

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

29

1990325C1

SEAL,34.85mm ID x 57.25mm OD x 8mm Thk

1шт.

30

199883C1

WASHER,35.08mm ID x 44.93mm OD x 2.51mm Thk

1шт.

31

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

32

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

1шт.

33

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

1шт.

34

1286294C1

BEARING CAP,55 mm ID x 125.374 mm OD x 21, 15 mm

Bearing, Closed

1шт.

35

1982400C1

PINION

1шт.

36

1982956C1

WASHER

1шт.

37

100-1687

SNAP RING,#87, Ext

1шт.

38

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

40

1982422C1

SUPPORT

1шт.

41

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

42

492-11062

BEARING WASHER,5/8"

2шт.

43

1982634C2

BOLT

2шт.

44

892-11020

LOCK WASHER,M20

2шт.

45

184301A1

STEP

Drum No. 1 (4 Row)

2шт.
