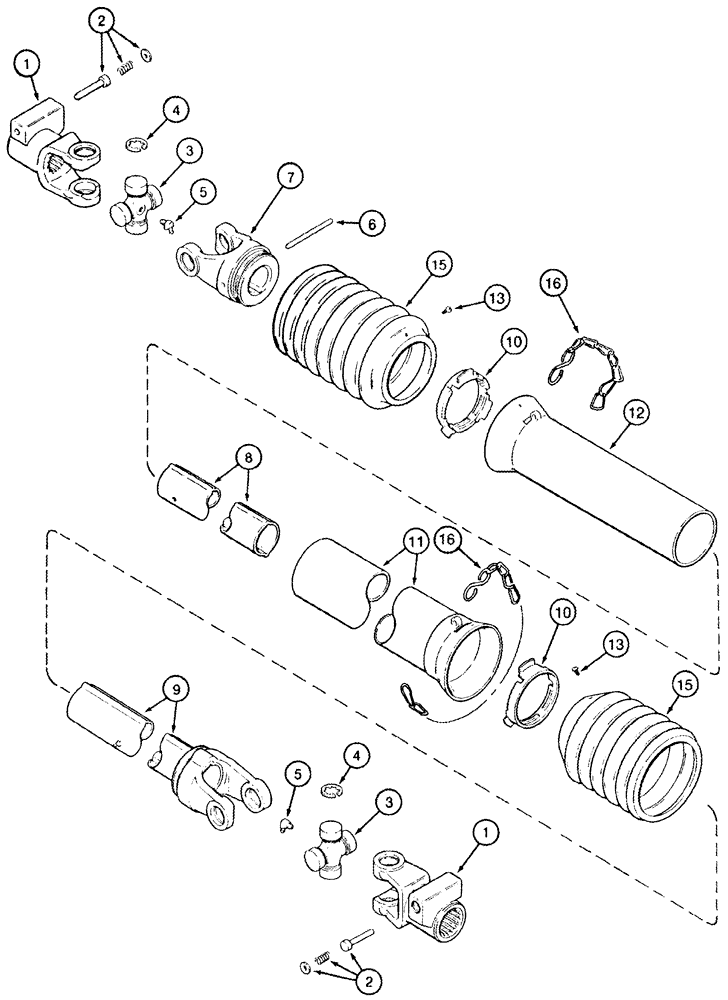

Запчасти Case IH 2555 (09A-09) - DRIVE SHAFT CROSS DRUM JJC0157150- (13) - PICKING SYSTEM

5 Row Wide

1шт.

1984234C3

SHAFT ASSY.

Consists Of 1 - 16

3шт.

1

293059A1

YOKE

Cross Shaft Splined

2шт.

2

1281458C1

KIT

Pin

2шт.

1281444C1

KIT

Universal Joint, Consists Of 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

67-1/2 deg, Fitting, Grease

1шт.

6

738-11070

LOCK PIN,M10 x 70, Slotted

2шт.

7

1281445C1

YOKE

UNIVERSAL JOINT YOKE , Inner Shaft

1шт.

8

293060A1

TUBE,34.5 mm OD, 375 mm Length

Inner Profile

1шт.

9

293061A1

TUBE,41 mm OD, 360 mm Length

Outer Profile

1шт.

10

1326493C1

YOKE

UNIVERSAL JOINT YOKE , Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Not Illustrated

1шт.

293063A1

PACKAGE

Cross Shaft Shield, Consists Of 11 - 16

1шт.

11

1281450C1

RING

Bearing

2шт.

12

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

13

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Cone Shield

2шт.

14a

NSS

NOT SOLD SEPARAT

Decal, Warning, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Shield, Cone, 8 Rib

2шт.

16

293062A1

CHAIN (CE)

Tie Down

2шт.
