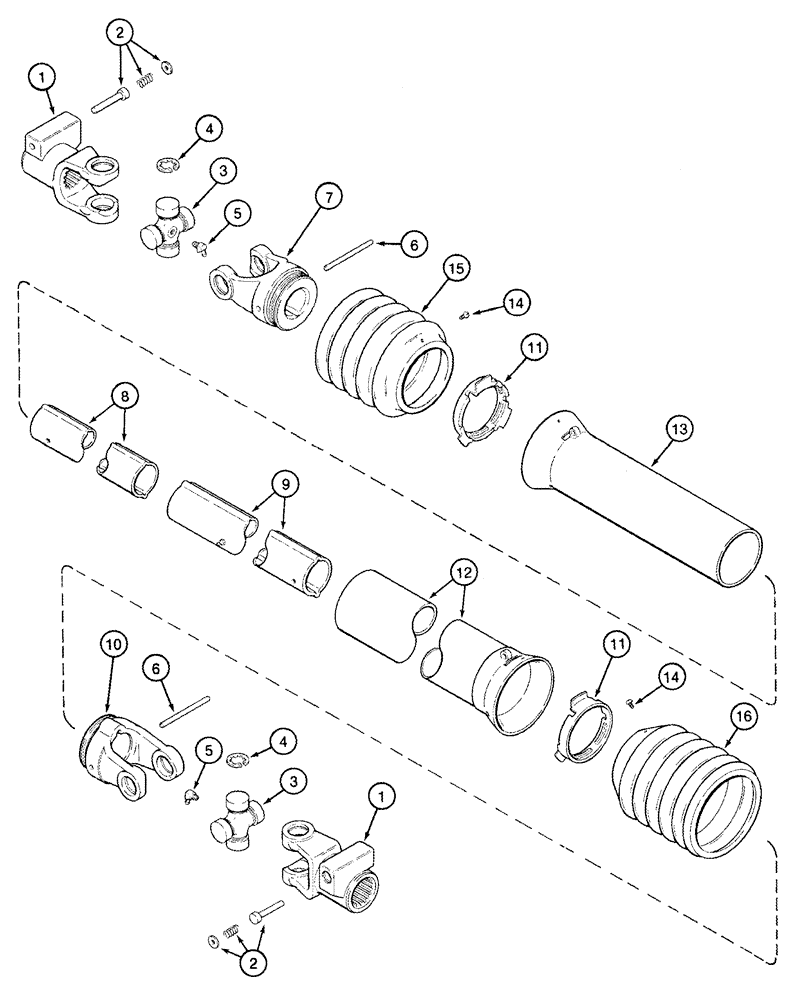

Запчасти Case IH 2555 (09A-08) - DRIVE SHAFT CROSS DRUM -JJC0157149 (13) - PICKING SYSTEM

5 Row Wide

1шт.

1984234C2

SHAFT

Consists Of 1 - 16

3шт.

1

1984240C1

COUPLING

Cross Shaft Splined

2шт.

2

1281458C1

KIT

Pin

2шт.

1984235C1

SPIDER ASSY.

Consists Of 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

67-1/2 deg, Fitting, Grease

1шт.

6

838-1865

LOCK PIN,M8 x 65 Slotted

2шт.

7

1984241C1

COUPLING

Inner Shaft

1шт.

8

1984243C1

TUBE,34.5 mm OD

Inner Profile

1шт.

9

1988779C1

TUBE,41 mm OD, 375 mm Length

Outer Profile

1шт.

10

1984242C1

COUPLING

Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Not Illustrated

1шт.

1984257C1

PACKAGE

Cross Shaft Shield, Consists Of 11 - 16

1шт.

11

1281450C1

RING

2шт.

12

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

13

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Cone Shield

2шт.

14a

NSS

NOT SOLD SEPARAT

Decal, Warning, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Shield, Cone, 5 Rib

1шт.

16

NSS

NOT SOLD SEPARAT

Shield, Cone, 8 Rib

1шт.
