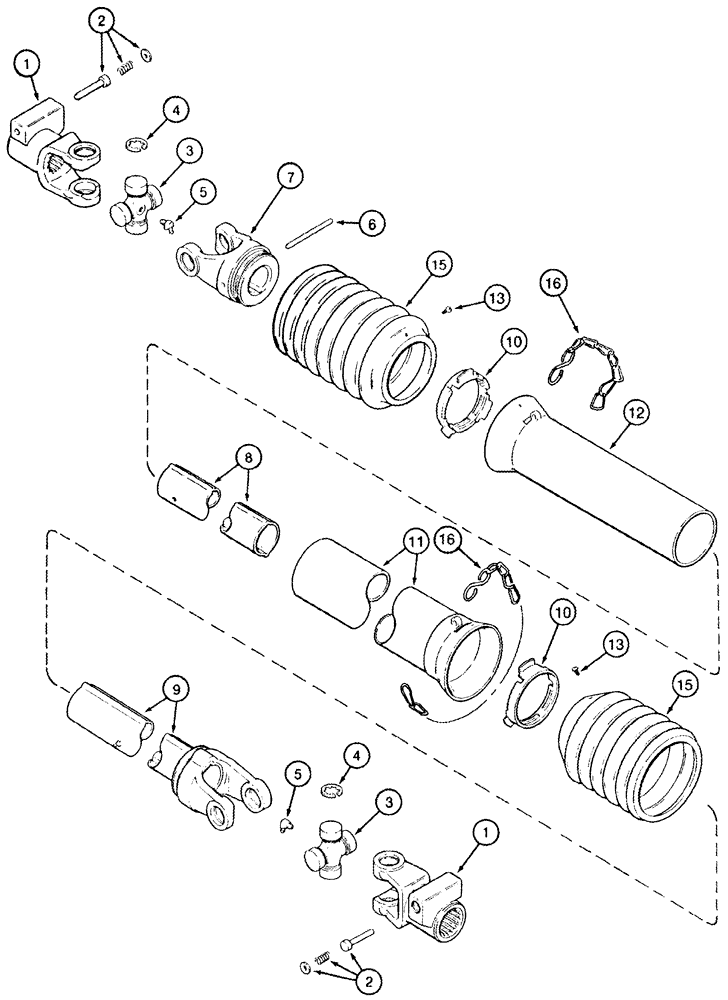

Запчасти Case IH 2555 (09A-07) - DRIVE SHAFT CROSS DRUM JJC0157150- (13) - PICKING SYSTEM

4 and 5 Row Narrow

1шт.

1545945C2

SHAFT

2 Used on 4 Row Narrow, 3 Used on 5 Row Narrow, Consists Of 1 - 15

2-3шт.

1

293059A1

YOKE

Cross Shaft Splined

2шт.

2

1281458C1

KIT

Pin

2шт.

1281444C1

KIT

Universal Joint, Consists Of 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

67-1/2 deg, Fitting, Grease

1шт.

6

738-11070

LOCK PIN,M10 x 70, Slotted

1шт.

7

1281445C1

YOKE

UNIVERSAL JOINT YOKE , Inner Shaft

1шт.

8

293064A1

TUBE,34.5 mm OD, 245 mm Length

Inner Profile

1шт.

9

293065A1

COUPLING

Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Not Illustrated

1шт.

293063A1

PACKAGE

Cross Shaft Shield, Consists Of 10 - 15

1шт.

10

1281450C1

RING

Bearing

2шт.

11

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

12

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Cone Shield

2шт.

14

NSS

NOT SOLD SEPARAT

Decal, Warning, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Shield, Cone, 8 Rib

2шт.

16

293062A1

CHAIN (CE)

Tie Down

2шт.
