Запчасти Case IH 2555 (09A-06) - DRIVE SHAFT CROSS DRUM -JJC0157149 (13) - PICKING SYSTEM

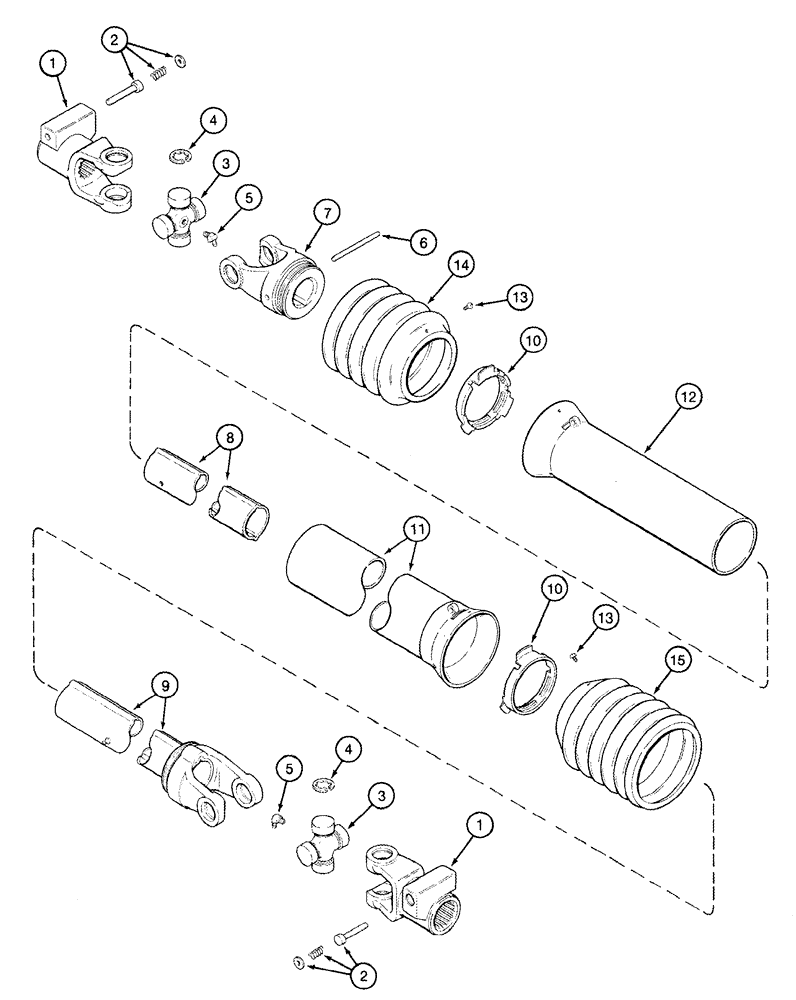

Схема запчастей Case IH 2555 - (09A-06) - DRIVE SHAFT CROSS DRUM -JJC0157149 (13) - PICKING SYSTEM
13
3
13
4
5
5
1
9
8
10
2
10
11
1
7
15
12
6
3
14
2
4

Артикул

Название

Примечание

Количество

4 and 5 Row Narrow

1шт.

1545945C1

SHAFT

2 Used on 4 Row Narrow, 3 Used on 5 Row Narrow, Consists Of 1 - 15, No Longer Available, Order 1545945C2, See Page(s) 9A-21

2-3шт.

1

1984240C1

COUPLING

Cross Shaft Splined

2шт.

2

1281458C1

KIT

Pin

2шт.

1984235C1

SPIDER ASSY.

Universal Joint, Consists Of 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

67-1/2 deg, Fitting, Grease

1шт.

6

838-1865

LOCK PIN,M8 x 65 Slotted

1шт.

7

1984241C1

COUPLING

Inner Shaft

1шт.

8

1545946C1

TUBE,250 mm Length

Inner Profile

1шт.

9

1545947C1

COUPLING

Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Not Illustrated

1шт.

4 and 5 Row Narrow

1шт.

1984257C1

PACKAGE

Cross Shaft Shield, Consists Of 10 - 15

1шт.

10

1281450C1

RING

Bearing

2шт.

11

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

12

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Cone Shield

2шт.

14a

NSS

NOT SOLD SEPARAT

Decal, Warning, Not Illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

Shield, Cone, 5 Rib

1шт.

15

NSS

NOT SOLD SEPARAT

Shield, Cone, 8 Rib

1шт.

Выбрано товаров: 22
