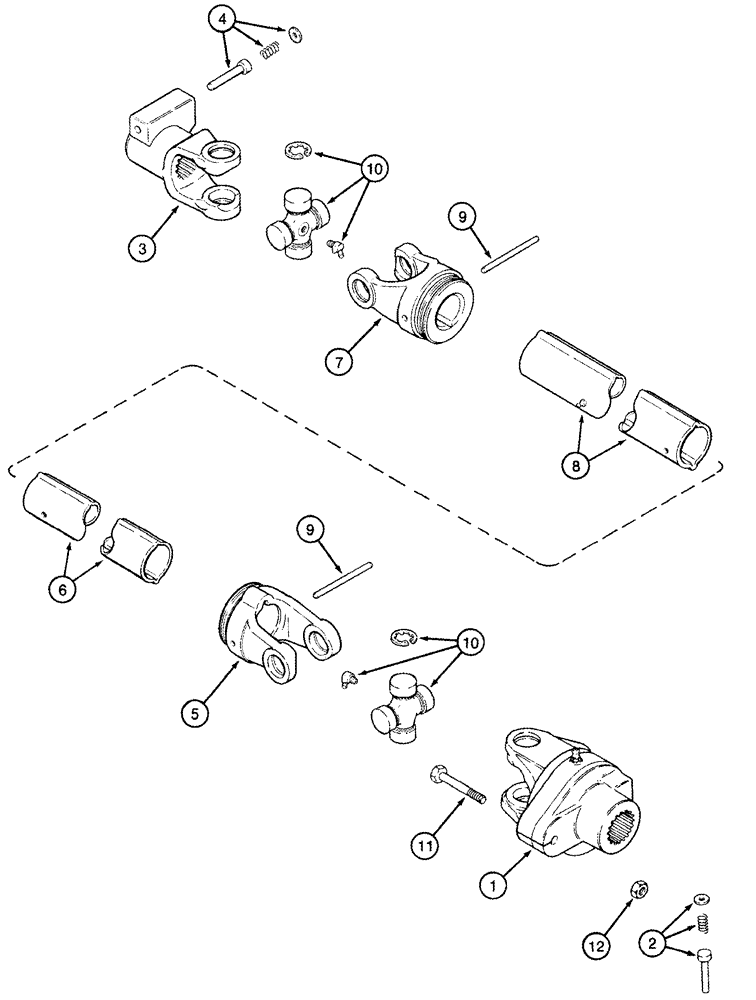

Запчасти Case IH 2555 (09A-03) - DRIVE SHAFT MAIN DRUM (13) - PICKING SYSTEM

5 Row Wide or Narrow - Left Hand

1шт.

Reverse/Non-Reverse Shaft

1шт.

1546317C1

SHAFT

Consists Of 1A - 10, Not Illustrated, For Right Hand Shaft Assy See Pages 9A-15, 9A-17

1шт.

1a

1546318C1

YOKE

UNIVERSAL JOINT YOKE , Shearbolt Clutch, Not Illustrated

1шт.

2

87547C1

KIT

Pin

2шт.

3

1984216C1

COUPLING

Drive Shaft, Splined, Includes 4

1шт.

4

1281458C1

KIT

Pin

2шт.

5

1984217C1

COUPLING

Inner Shaft

1шт.

6

1546319C1

TUBE,620 mm Length

Inner Profile

1шт.

7

1984218C1

COUPLING

Outer Shaft

1шт.

8

1546320C1

TUBE,595 mm Length

Outer Profile

1шт.

9

838-31090

PIN,10mm OD x 90mm L, Coiled

2шт.

10

700706779

SPIDER ASSY.

Universal Joint

2шт.

11

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

3шт.

12

230-4114

NUT,1/4"-20, GA

1/4

3шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Included With 1546317C1

1шт.

4 Row Wide - Left Hand and Right Hand

1шт.

5 Row Wide or Narrow - Right Hand

1шт.

Reverse/Non-Reverse Shaft

1шт.

1546321C1

SHAFT

4 Row Wide - Left Hand and Right Hand, Consists Of 1A - 10, Not Illustrated

2шт.

1546321C1

SHAFT

5 Row Wide or Narrow - Right Hand, Consists Of 1A - 10, Not Illustrated, For Left Hand Shaft Assy See Page 9A-11

1шт.

1a

1546322C1

YOKE

UNIVERSAL JOINT YOKE , Shearbolt Clutch

1шт.

2

87547C1

KIT

Pin

2шт.

3

1984222C1

YOKE

Drive Shaft, Splined, Includes 4

1шт.

4

1281458C1

KIT

Pin

2шт.

5

1984223C1

YOKE

Inner Shaft

1шт.

6

1546323C1

TUBE,640 mm Length

Inner Profile

1шт.

4 Row Wide - Left Hand and Right Hand

1шт.

5 Row Wide or Narrow - Right Hand

1шт.

Reverse/Non-Reverse Shaft

1шт.

1546321C1

SHAFT

4 Row Wide - Left Hand and Right Hand, 5 Row Wide or Narrow - Right Hand, Continued From Previous Page

3шт.

7

700709064

YOKE

Outer Shaft

1шт.

8

1546324C1

TUBE,615 mm Length

Outer Profile

1шт.

9

838-31080

PIN,M10 x 80, Coiled

2шт.

10

8804478

TOGGLE

Universal Joint

2шт.

11

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

3-6шт.

12

230-4114

NUT,1/4"-20, GA

1/4

3-6шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Included With 1546321C1

1шт.
