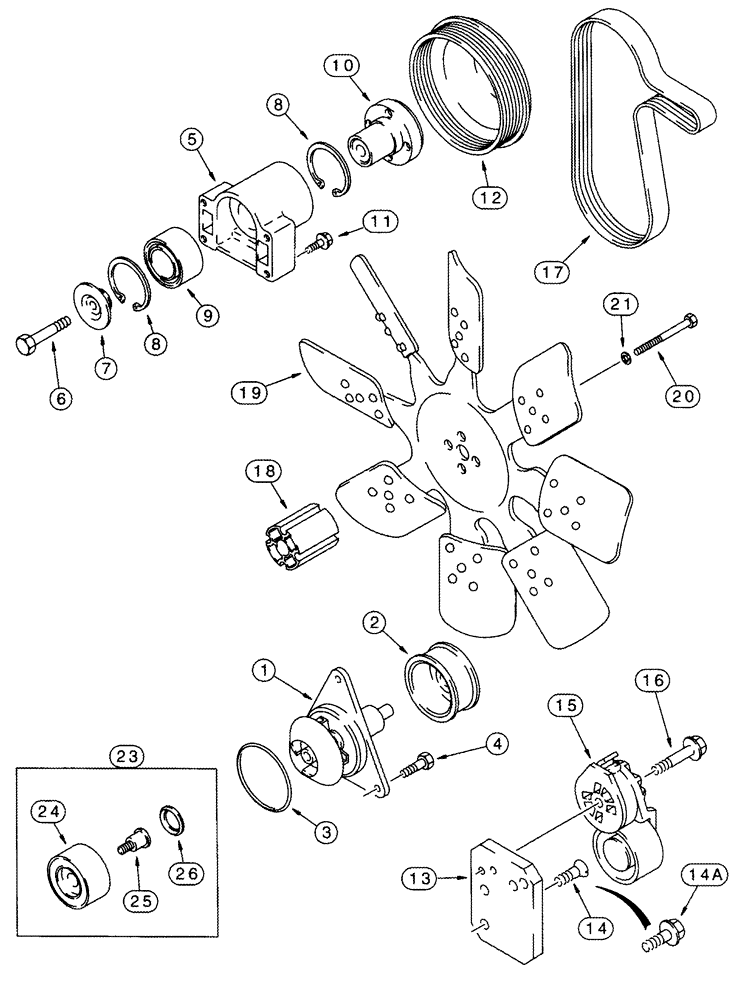

Запчасти Case IH 2555 (02-08) - WATER PUMP SYSTEM (01) - ENGINE

6TA-830 Emissions Certified Engine

1шт.

J806180

PUMP, WATER

Water Pump, Consists Of 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

2555 (BEFORE S/N JJC0249499), Reman for New P/N J806180

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

1шт.

4

J926125

BOLT,Hex, M8 x 28mm, Cl 8.8

M8 x 28

3шт.

5

J929458

SUPPORT

Includes 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

J925188

SUPPORT

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

14a

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

15

J934817

BELT TENSIONER

Replaces J918944

1шт.

16

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

M10 x 75

1шт.

17

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

1шт.

18

A184548

SPACER,Fan, 89/90mm Thk

90 mm

1шт.

19

1547933C1

FAN

1шт.

20

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

M10 x 125

4шт.

21

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11 x 21 x 2,5 mm

4шт.

23

A77817

KIT

Tensioner, Consists Of 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Pulley

1шт.

25

NSS

NOT SOLD SEPARAT

Bolt

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.
