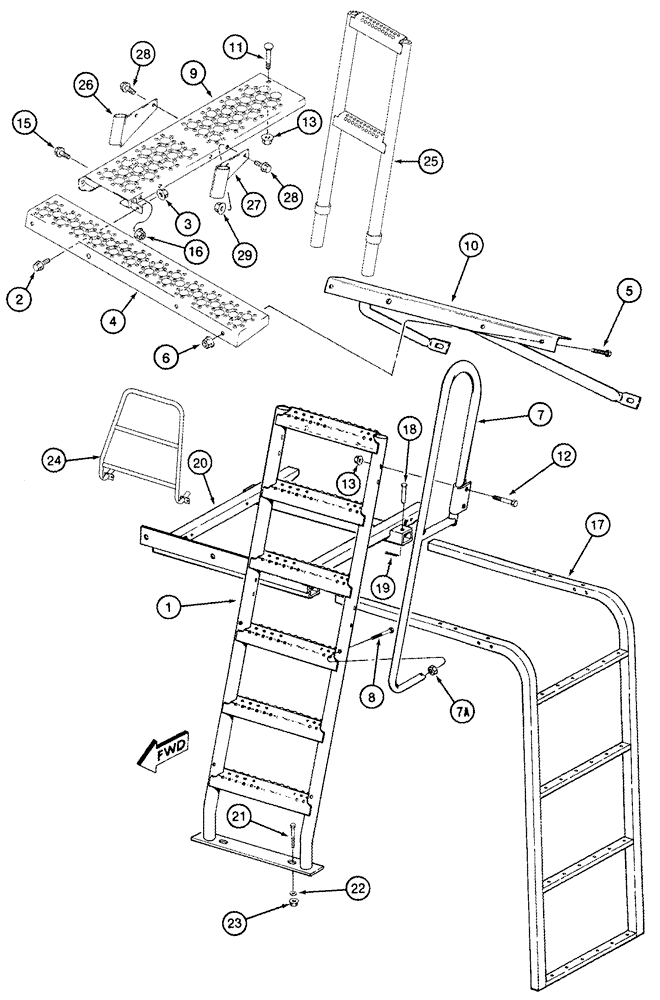

Запчасти Case IH 2555 (09F-18) - STEPS LADDERS -JJC0157149 (12) - CHASSIS

1

176339A2

LADDER

Basket

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

245139A1

STEP

Front, Basket Ladder

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

6

231-5146

FLANGE NUT,3/8"-16

3шт.

7

176344A1

RAMP

Ladder, Lower

1шт.

7a

140225A2

TUBE,17.4 mm Length

Handrail

1шт.

8

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

9

245187A1

STEP

Basket Ladder, Rear

1шт.

10

245140A1

SUPPORT

Basket Ladder, Upper

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

13

231-5146

FLANGE NUT,3/8"-16

6шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

1988663C3

LADDER

Access, Lower

1шт.

18

439-1848

HEADED PIN,1/2" x 3"

1/2 x 3; 2

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

1545968C2

SUPPORT

Ladder

1шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

1545972C3

GRAB RAIL

Platform

1шт.

25

245143A3

LADDER

Upper Basket

1шт.

26

232549A1

SUPPORT

Upper Basket Ladder, Left Hand

1шт.

27

232550A1

SUPPORT

Upper Basket Ladder, Right Hand

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.
