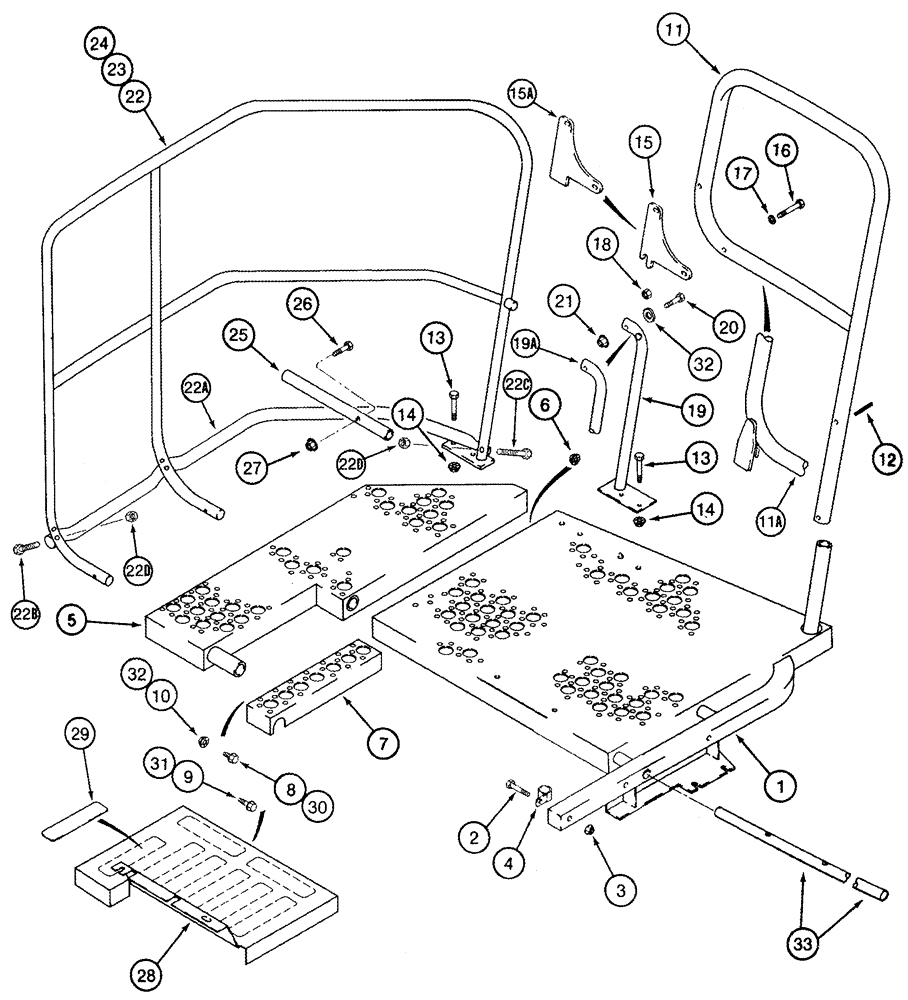

Запчасти Case IH 2555 (09F-15) - PLATFORM AND HANDRAILS (12) - CHASSIS

4 Row Wide

1шт.

4 Row Narrow and 5 Row Narrow

1шт.

1

130646A5

PLATFORM ASSY.

Cab, Left Hand Inner

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

4

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

5

130657A1

STEP

Cab, Left Hand Outer

1шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

144558A2

STEP

Extension, Rear Inner, 4 Row Wide and 5 Row Narrow

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

9

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

131139A2

GRAB RAIL

Inner Platform, Replaced By 258801A1, 11A

1шт.

11a

258801A1

TUBE,667, 297 mm Length

Inner Platform

1шт.

12

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

13

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

14

231-5146

FLANGE NUT,3/8"-16

4шт.

15

176360A2

LARGE PLATE

PLATE, LARGE , Inner Platform Handrail, Replaced By 280166A1, 15A

1шт.

15a

280166A1

SHEET

Inner Platform Handrail

1шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

If Equipped

2шт.

17

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), If equipped

2шт.

18

231-4115

NUT,5/16"-18, GB

If Equipped

2шт.

4 Row Wide

1шт.

4 Row Narrow and 5 Row Narrow

1шт.

19

176782A4

TUBE

Inner to Outer Handrail, Replaced By 283414A1, 19A

1шт.

19a

283414A1

GRAB RAIL

Inner to Outer Handrail

1шт.

20

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

.25 X 1.75 UNC GR5 YZD

1шт.

21

231-4144

NUT,1/4"-20, GB

1шт.

22

131141A3

GRAB RAIL

Outer Platform, No Longer Available, Order 131141A4

1шт.

22a

131141A4

GRAB RAIL

Outer Platform, Toe Guard

1шт.

22a

255750A1

GRAB RAIL

Platform, Toe Guard, If Equipped

1шт.

22b

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

Used with 255750A1

2шт.

22c

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Used with 255750A1

1шт.

22d

231-1445

NUT,5/16"-18, GB

Used with 255750A1

3шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

24

231-5146

FLANGE NUT,3/8"-16

2шт.

25

130654A2

SUPPORT TUBE,1.312" OD, 710 mm Length

Extension, Cab Platform, Left Hand

2шт.

26

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

193500A1

STEP

Platform Filler, 4 Row Narrow, Includes 29

1шт.

29

D55216

PAD,2" x 9"

2 x 9 in

8шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

144660A1

TUBE,33.34 mm OD, 2470 mm Length

Cab Platform, Inner

1шт.
