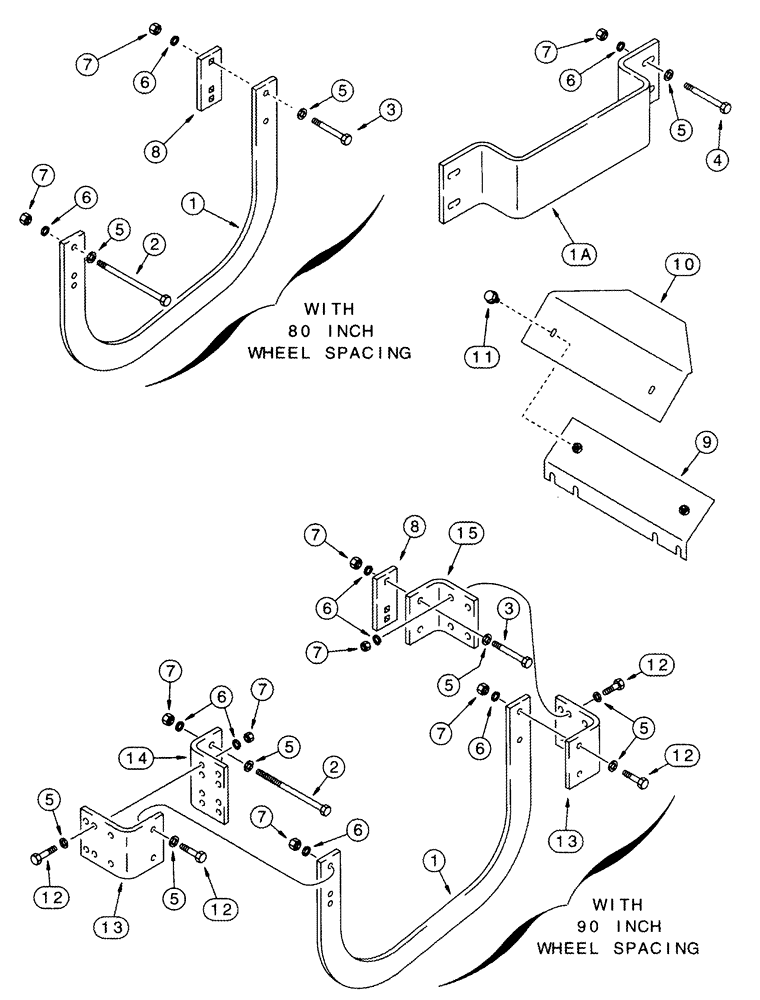

Запчасти Case IH 2555 (09F-13) - MUD SCRAPERS (12) - CHASSIS

1

1546386C2

SUPPORT

4 Row Wide, 5 Row Narrow

2шт.

1a

144557A1

SUPPORT

4 Row Narrow, 5 Row Narrow - Dual Ready

2шт.

2

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

.5 X 7 UNC GR5 YZD

4шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2 x 4-1/2, 4 Row Wide, 5 Row Narrow

4шт.

4

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5, 5 Row Narrow - Dual Ready

4шт.

5

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64, 8 Used on 4 Row Wide, 24 Used on 5 Row Narrow With 90 Inch Wheel Spacing

8-24шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

8-24шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8 used on 4 Row Wide, 24 used on 5 Row Narrow with 90 Inch wheel spacing

8-24шт.

8

215520C3

LARGE PLATE

PLATE, LARGE , Mud Blade, 5 Row Narrow

2шт.

9

123970A1

SUPPORT

Manifold Bulkhead Fitting, 80 Inch Wheel Spacing, 4 Row Wide

2шт.

10

123972A1

SHIELD

Manifold Bulkhead Fitting, 80 Inch Wheel Spacing, 4 Row Wide

2шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

80 Inch Wheel Spacing, 4 Row Wide

4шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5 Row Narrow with 90 Inch Wheel Spacing

16шт.

13

1990141C1

SUPPORT

Support, 5 Row Narrow With 90 Inch Wheel Spacing

4шт.

14

1990139C1

SUPPORT

Front Mount, 5 Row Narrow With 90 Inch Wheel Spacing

2шт.

15

1990140C1

SUPPORT

Rear Mount, 5 Row Narrow With 90 Inch Wheel Spacing

2шт.
