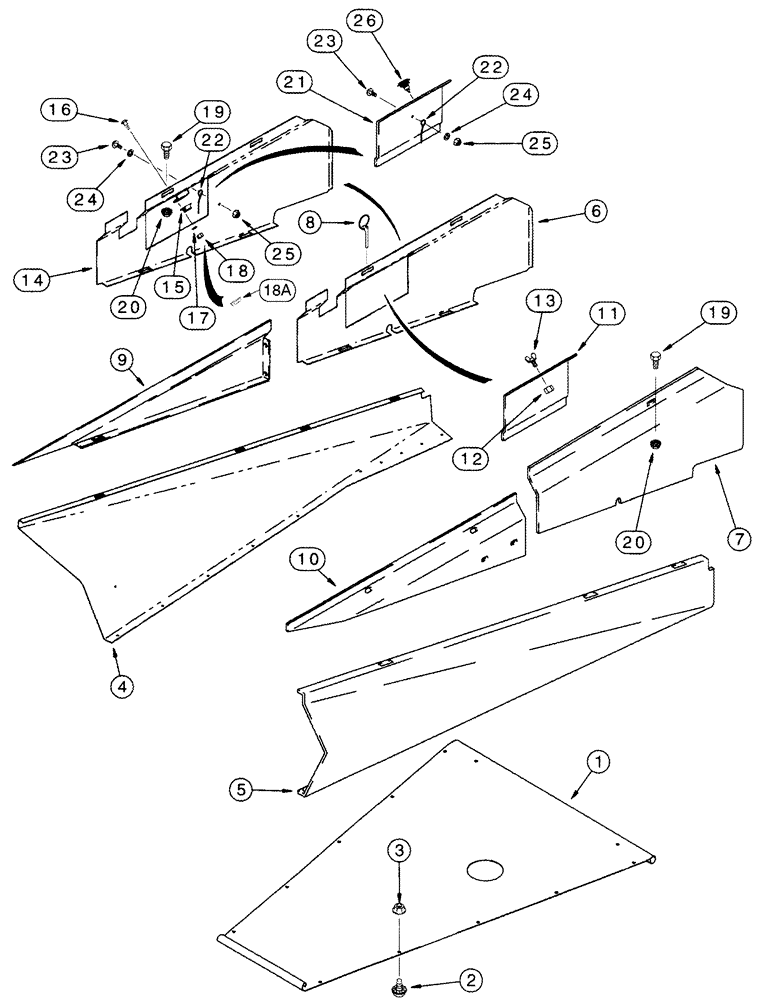

Запчасти Case IH 2555 (09F-12) - PLANT GUARD (12) - CHASSIS

Pan, Covers and Mud Shields

1шт.

All 4 and 5 Row Models

1шт.

1

181670A3

SHEET

Bottom, Belly Pan

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

3

231-5146

FLANGE NUT,3/8"-16

10шт.

4

181668A2

GUARD

Left Hand

1шт.

5

181669A2

GUARD

Right Hand

1шт.

6

144199A2

GUARD

Lower Front, Left Hand, Without Latch, If Used, Replaced By 283550A1, See Page(s) 9F-39, REF 14

1шт.

7

119136A2

GUARD

Lower Front, Right Hand

1шт.

8

A33497

LINCH PIN,4.76mm OD Pin

Klik

4шт.

9

144196A1

GUARD

Rear, Left Hand Side

1шт.

10

144197A1

GUARD

Rear, Right Hand Side

1шт.

11

119613A1

TRAP DOOR

Access, Water Filter, Without Latch, If Used

1шт.

12

488837C1

SPRING NUT

5/16, If Used

1шт.

13

183-123

THUMB SCREW

5/16 x 3/4, If Used

1шт.

Pan, Covers and Mud Shields

1шт.

All 4 and 5 Row Models

1шт.

Shield and Access Door With Latch

1шт.

14

283550A1

SHEET

Lower Front, Left Hand, With Latch

1шт.

15

292504A1

CASE

Slam Latch

1шт.

16

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

17

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

18

225-14210

NUT,#10-32

No Longer Used, Order 231-24409

2шт.

18a

231-24409

NUT,#10-32

Replaces 492-11010, 225-14210

4шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

21

283551A2

DOOR

Access, Water Filter, With Latch

1шт.

22

126840A1

CABLE

Anchor

1шт.

23

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

2шт.

24

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

5/16 x 7/8 x 1/16

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

292505A1

LATCH

Slam, Tool Operated

1шт.
