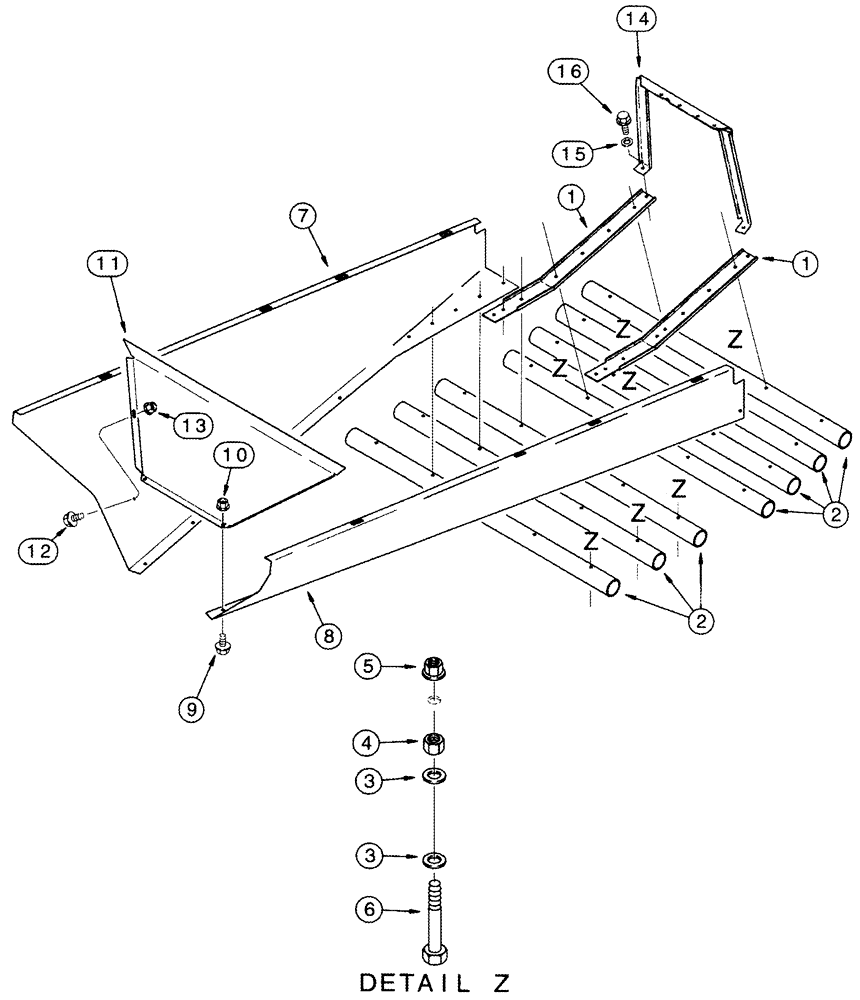

Запчасти Case IH 2555 (09F-09) - PLANT GUARD CHANNEL AND TUBES (12) - CHASSIS

4 Row Narrow

1шт.

1

1546141C2

SUPPORT

Front

2шт.

2

123956A1

TUBE,62.71 mm ID, 73.03 mm OD

7шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

28шт.

4

425-106

NUT,3/8"-16, Cl 5

14шт.

5

231-5146

FLANGE NUT,3/8"-16

14шт.

6

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

14шт.

7

181668A2

GUARD

Left Hand

1шт.

8

181669A2

GUARD

Right Hand

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

226208A1

GUARD ASSY.

Air Deflector, Rear Belly Pan

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

14

1546138C4

SUPPORT

1шт.

15

495-21044

WASHER,3/8"

3шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.
