Запчасти Case IH 2555 (09F-08) - WHEEL SHIELDS OUTER DUAL WHEELS JJC0157150- (12) - CHASSIS

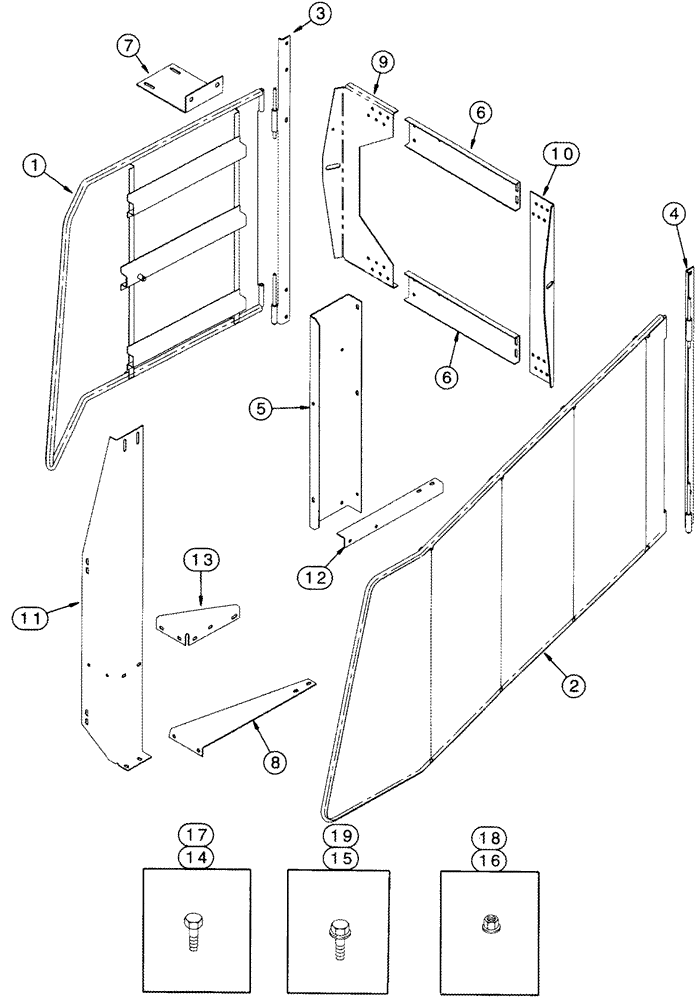

Схема запчастей Case IH 2555 - (09F-08) - WHEEL SHIELDS OUTER DUAL WHEELS JJC0157150- (12) - CHASSIS
18
10
19
12
9
8
11
1
5
14
6
4
16
6
17
3
7
2
13
15

Артикул

Название

Примечание

Количество

1

293727A1

GUARD ASSY.

Wheel, Left Hand

1шт.

2

293715A2

GUARD ASSY.

Wheel, Right Hand

1шт.

3

293794A2

HINGE

Shield, Left Hand

1шт.

4

293743A2

HINGE

Shield, Right Hand

1шт.

5

293724A1

SHEET

Support, Outlet

1шт.

6

293725A1

SHEET

Support, Shield, Right Hand

2шт.

7

293732A1

BRACKET

Support, Upper

1шт.

8

293734A1

SHEET

Support, Lower

1шт.

9

293736A2

BRACKET

Latch, Shield, Left Hand

1шт.

10

293726A2

SUPPORT

Latch, Shield, Right Hand

1шт.

11

293735A2

HOLDER

Support, Latch

1шт.

12

293733A1

ANGLE BAR

Tie

1шт.

13

302088A2

BRACKET

Support, Shield, Left Hand

1шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

11шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

17шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

4шт.

Выбрано товаров: 19
