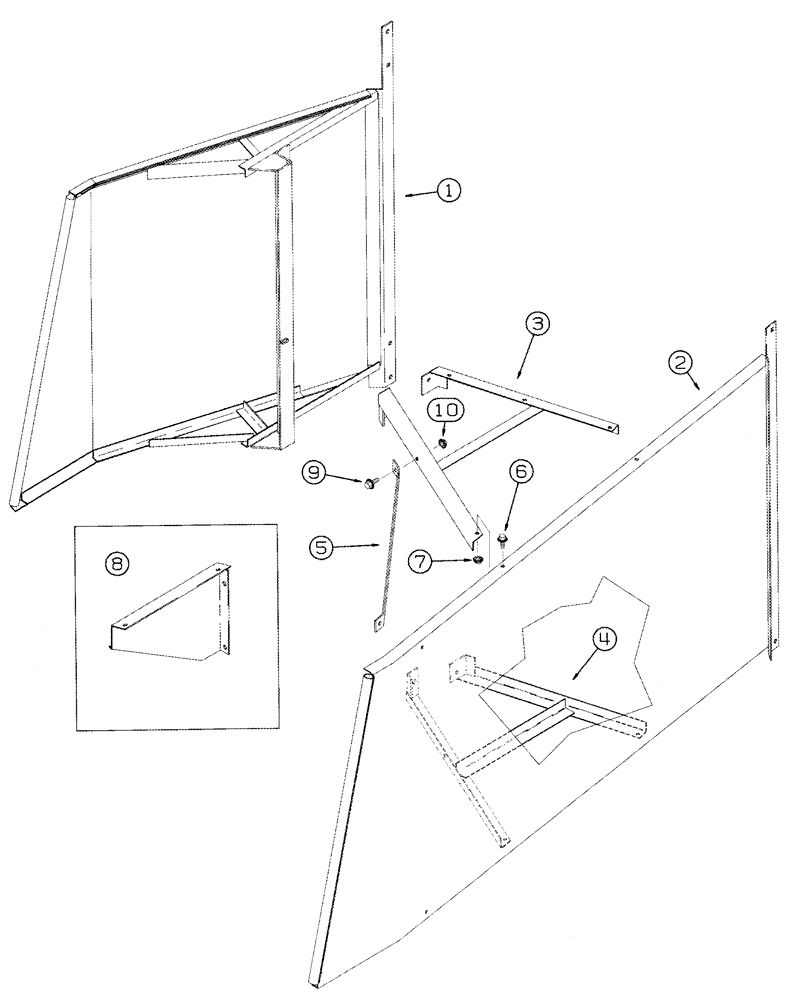

Запчасти Case IH 2555 (09F-07) - WHEEL SHIELDS OUTER DUAL WHEELS -JJC0157149 (12) - CHASSIS

1

1546209C2

SHIELD

Wheel, Left Hand

1шт.

2

113127A1

SHIELD

Wheel Panel, Right Hand

1шт.

3

113217A1

SUPPORT

Upper

1шт.

4

113223A1

SUPPORT

Lower

1шт.

5

113229A1

SUPPORT

Panel

2шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

113250A1

GUARD

Upper

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.
