Запчасти Case IH 2555 (09F-05) - SIDE SCREENS AND DOORS (12) - CHASSIS

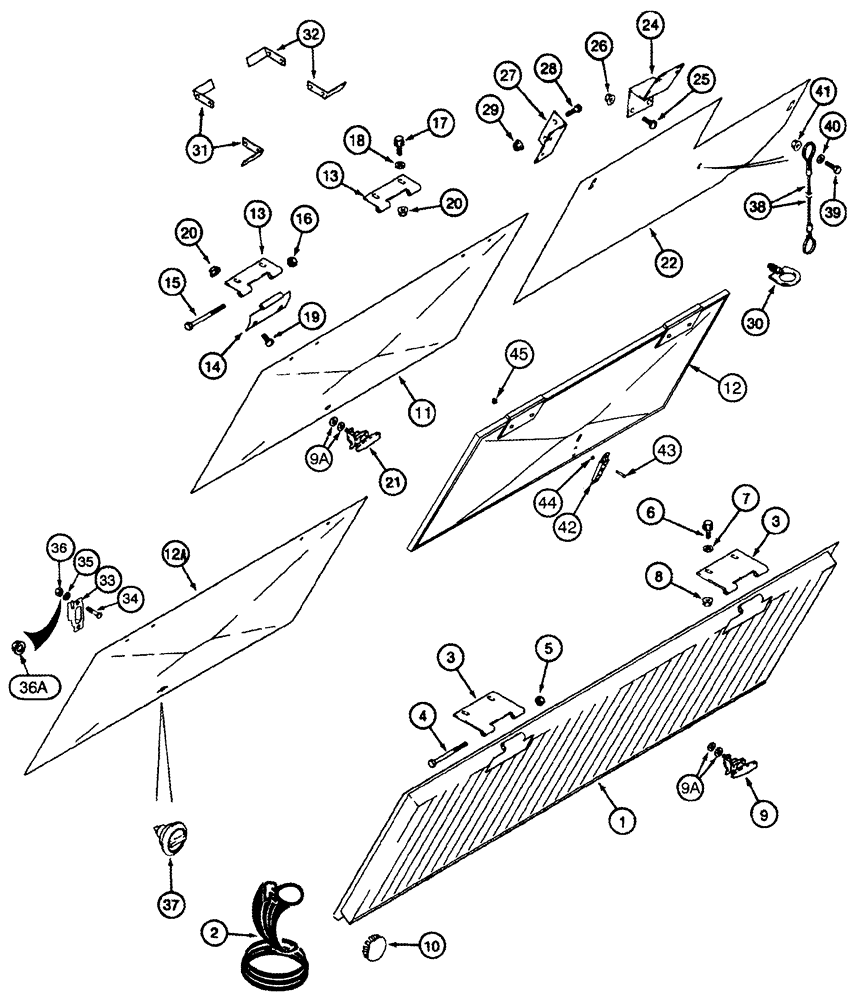

Схема запчастей Case IH 2555 - (09F-05) - SIDE SCREENS AND DOORS (12) - CHASSIS
41
44
14
20
21
43
35
17
3
12a
34
36
31
45
3
7
42
9a
10
33
28
20
13
37
29
24
15
11
5
32
4
30
22
2
16
40
39
26
25
19
38
13
9a
27
8
12
6
9
18
36a
1

Артикул

Название

Примечание

Количество

1

363036A1

FILTER

Rear, Replaces 1990167C3

1шт.

2

87059C2

SEAL

Cut From 1263038C1

1шт.

3

1338422C1

HINGE

Screen

4шт.

4

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

4шт.

5

231-4115

NUT,5/16"-18, GB

4шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

7

495-81121

WASHER,.344" x 1 1/2" x .060"

8шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

9

1990265C2

HANDLE

Door

4шт.

9a

495-31016

WASHER,#6

12шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

8шт.

11

1990274C1

DOOR

Engine Compartment, With Handle Latch, If Equipped

2шт.

12

321947A1

DOOR

Engine Compartment, With Slam Latch, Replaces 1990274C1

2шт.

12a

283534A1

DOOR

Engine Compartment, With Slam Latch, If Equipped

2шт.

13

1990187C2

HINGE

Door, At Frame

4шт.

14

1990197C1

HINGE

Door

4шт.

15

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

4шт.

16

231-4115

NUT,5/16"-18, GB

4шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

18

495-81121

WASHER,.344" x 1 1/2" x .060"

8шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

21

1990266C1

HANDLE

If Equipped

2шт.

22

177573A3

COVER

Fan Shield, Right Hand

1шт.

23

177571A3

COVER

Fan Shield, Left Hand, Not Illustrated

1шт.

24

178027A2

SUPPORT

Fan Shield Cover, Lower Front

2шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

27

178026A2

SUPPORT

Fan Shield Cover, Upper Rear

2шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

30

188029C1

LATCH

Main, Drive Shield

4шт.

31

177559A1

SUPPORT

Fan Shield, Front Left Hand Side, Rear Right Hand Side

2шт.

32

177560A1

SUPPORT

Fan Shield, Front Right Hand Side, Rear Left Hand Side

2шт.

33

292504A1

CASE

Slam Latch, If Equipped

2шт.

34

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

4шт.

35

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

36

225-14210

NUT,#10-32

No Longer Used, Order 231-24409

4шт.

36a

231-24409

NUT,#10-32

Replaces 492-11010, 225-14210

8шт.

37

292505A1

LATCH

Slam, Tool Operated, If Equipped

2шт.

38

126396A1

CABLE

Anchor, If Equipped

2шт.

39

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

4шт.

40

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

5/16 x 7/8 x 1/16

4шт.

41

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

42

340909A1

LOCK

Slam, Replaces 1990266C1

2шт.

43

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

44

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

45

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

20шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

Выбрано товаров: 48
