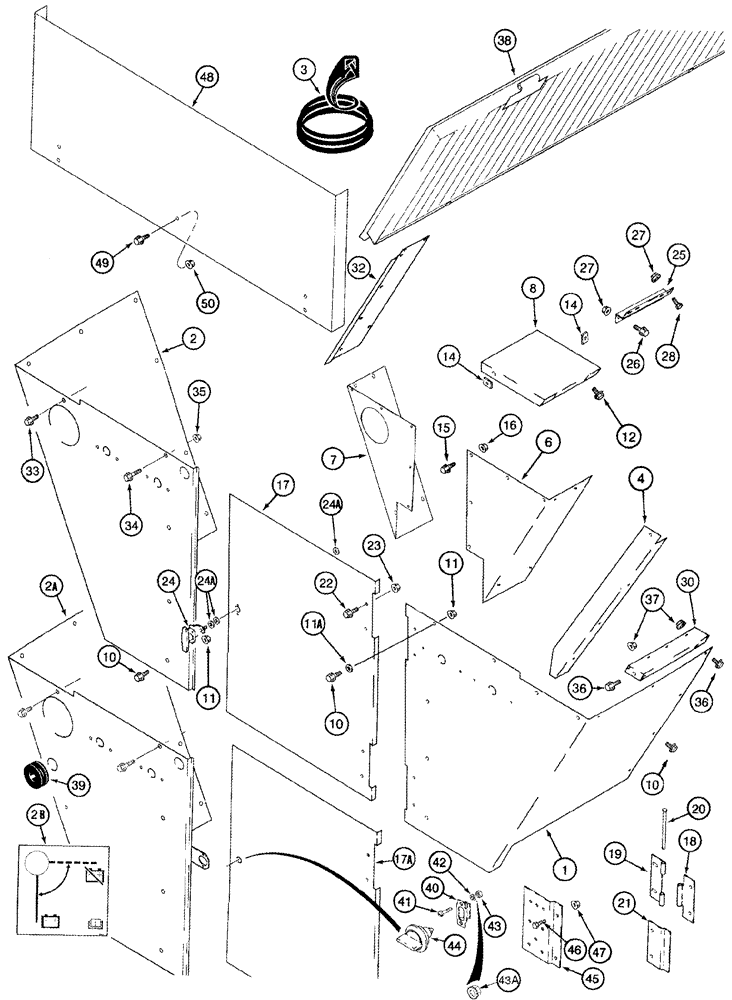

Запчасти Case IH 2555 (09F-04) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

176850A2

SHIELD

Rear Outer, Right Hand

1шт.

2

176799A5

SHIELD

Rear Outer, Left Hand, If Equipped

1шт.

2a

283979A1

SHEET

Rear Outer, Left Hand, With Slam Latch

1шт.

2b

284315A1

DECAL

Battery Disconnect

1шт.

3

87063C2

STRIP

Cut From 1330108CX

1шт.

4

176433A2

CONDUIT

Vertical Front, Right Hand

1шт.

5

176431A2

CONDUIT

Vertical Front, Left Hand, Not Illustrated

1шт.

6

177034A1

COVER

Rear Inner, Right Hand

1шт.

7

177033A2

COVER

Rear Inner, Left Hand, Without Battery Disconnect

1шт.

7a

283805A1

COVER

Rear Inner, Left Hand, With Battery Disconnect, Not Illustrated

1шт.

8

176497A2

COVER

Rear Screen, Right Hand

1шт.

9

176494A2

COVER

Rear Screen, Left Hand, Not Illustrated

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

26шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

15шт.

11a

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

14

488837C1

SPRING NUT

5/16

16шт.

15

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

177032A1

PANEL

Rear Door, If Equipped

1шт.

17a

283981A1

PANEL

Rear Door, With Slam Latch

1шт.

18

1990317C2

HINGE

Rear Door, Outer

2шт.

19

1990187C2

HINGE

Rear Door, Inner

2шт.

20

1349860C1

PIN,7.94mm OD x 129mm L

Hinge

2шт.

21

1990318C1

LARGE PLATE

PLATE, LARGE , Door Stop

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

24

1990266C1

HANDLE

Door, If Equipped

1шт.

24a

495-31016

WASHER,#6

2шт.

25

1278813C3

SUPPORT

Cover, Lower

2шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

29

176322A1

SUPPORT

Front Filler, Left Hand, Not Illustrated

1шт.

30

176325A1

SUPPORT

Front Filler, Right Hand

1шт.

31

177024A1

SUPPORT

Screen Frame, Left Hand, Not Illustrated

1шт.

32

177025A1

SUPPORT

Screen Frame, Right Hand

1шт.

33

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

34

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

22шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

38

363036A1

FILTER

Rear, Replaces 1990167C3

1шт.

39

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

Rubber

1шт.

40

292504A1

CASE

Slam Latch, If Equipped

1шт.

41

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

42

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

43

225-14210

NUT,#10-32

No Longer Used, Order 231-24409

2шт.

43a

231-24409

NUT,#10-32

Replaces 492-11010, 225-14210

4шт.

44

700714706

LATCH

Slam, Standard, If Equipped

1шт.

45

259965A1

HOLDER

Mounting, Rear, Fire Extinguisher, If Equipped

1шт.

47

231-5146

FLANGE NUT,3/8"-16

2шт.

48

276913A1

LARGE PLATE

PLATE, LARGE , Rear, Basket Mast, If Equipped

1шт.

49

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

3шт.

50

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

46

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.
