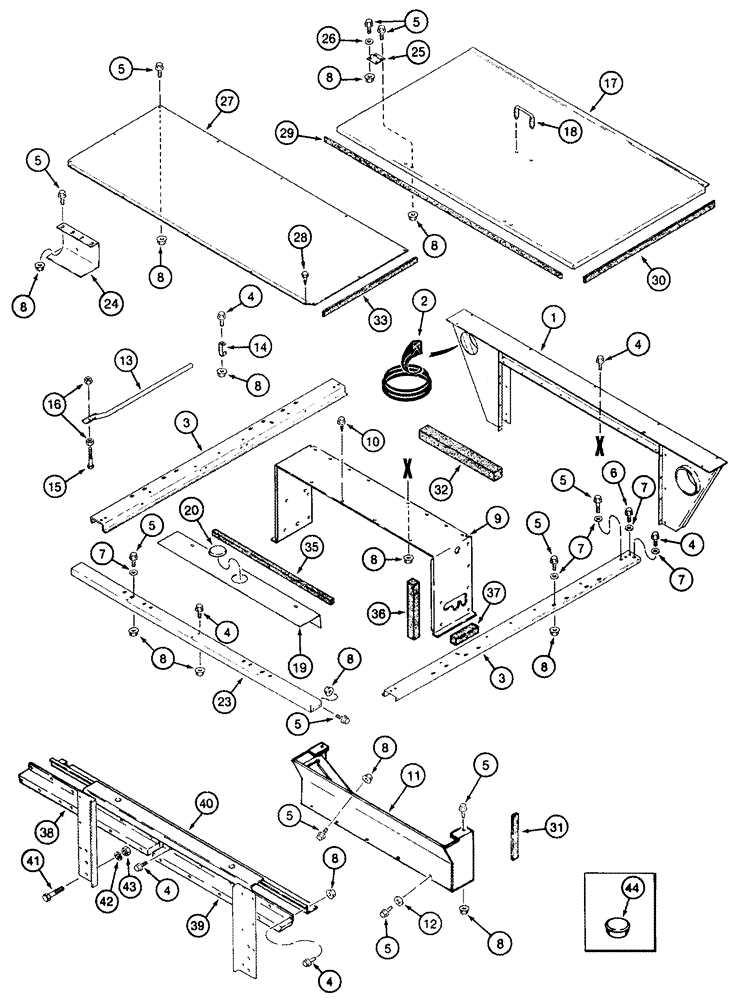

Запчасти Case IH 2555 (09F-03) - SHIELDS, ENGINE AND RADIATOR (12) - CHASSIS

Rear Access Door and Supports

1шт.

1

1982959C4

SUPPORT

Center Basket

1шт.

2

87063C2

STRIP

Cut From 1330108CX

1шт.

3

1260025C5

SUPPORT

Shield, Outer

2шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

6

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

7

495-21038

WASHER,5/16"

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

245210A1

SUPPORT

Upper, Radiator

1шт.

10

281-10810

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

11

195388A1

SUPPORT

Lower, Oil Cooler

1шт.

12

495-21044

WASHER,3/8"

5шт.

13

87076C2

SUPPORT

Tube

2шт.

14

86952C1

CLIP,ELECTRICAL

Screen Support

2шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

17

1988797C1

GUARD

Center Rear Deck

1шт.

18

1278124C1

HANDLE

Retractable

1шт.

19

227202A2

LARGE PLATE

PLATE, LARGE , Bolster Seal

1шт.

20

1302758C1

PLUG

Clean Out Hole

1шт.

Rear Access Door and Supports

1шт.

23

1260123C2

CHANNEL

Hinge Support

1шт.

24

227201A1

SUPPORT

Radiator Hood

2шт.

25

215720C1

HINGE

Shield

2шт.

26

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

27

1990372C1

GUARD

Rear Deck

1шт.

28

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

5шт.

29

87061C1

SEAL

Deck Shields, Cut From 195917C1

4шт.

30

87060C1

SEAL

Center Rear Deck Shield, Cut From 87084C1

2шт.

31

1984246C1

GASKET

Upper and Lower Shields, Cut From 87084C1

4шт.

32

1545942C1

SEAL

Cut From 1264566C1

2шт.

33

1301229C1

SEAL

Cut From 195917C2

2шт.

35

1545941C1

SEAL

Cut From 73215C1

1шт.

36

1278109C1

STRIP

Radiator Support Channel on Main Frame, Cut From 1264566C1

2шт.

37

1546226C1

SEAL

Main Frame Tube, Cut From 1264565C1

2шт.

38

1990392C2

CONDUIT

Left Hand Rear

1шт.

Rear Access Door and Supports

1шт.

39

1990393C2

CONDUIT

Right Hand Rear

1шт.

40

1990376C2

SUPPORT

Rear, Basket

1шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

43

425-108

NUT,1/2" - 13, Gr 5

6шт.

44

353-402

PLUG,Dome, .375" hole, Nylon

6шт.
