Запчасти Case IH 2555 (09F-01) - CHASSIS GREASE SYSTEM (12) - CHASSIS

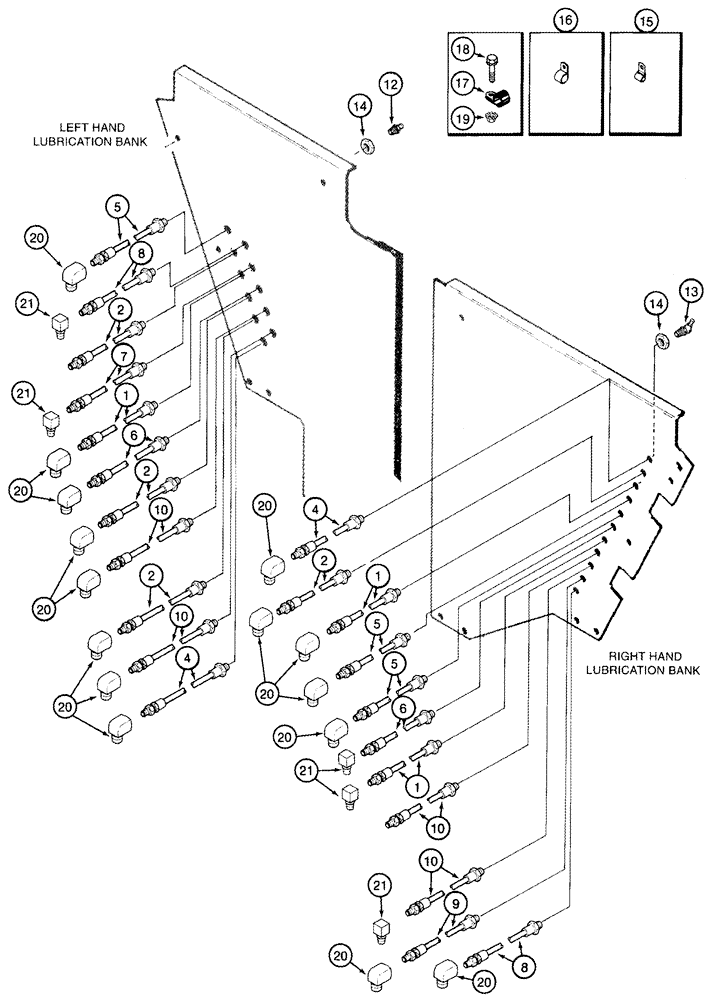

Схема запчастей Case IH 2555 - (09F-01) - CHASSIS GREASE SYSTEM (12) - CHASSIS
20
21
12
20
21
20
1
9
15
5
21
4
4
10
5
6
14
5
7
8
6
14
18
1
2
2
20
1
10
10
8
21
2
19
13
20
20
16
2
20
10
20
20
17

Артикул

Название

Примечание

Количество

1

1339003C1

TUBE,2032 mm L

2032 mm (80 in), Grease

3шт.

2

1339002C1

TUBE,2388 mm L

2388 mm (94 in)

4шт.

4

1339091C1

HYDRAULIC HOSE,3.17mm ID x 2718mm L

2718 mm (107 in), Grease

2шт.

5

1339004C1

HOSE,3.17mm ID x 1778mm L

1778 mm (70 in)

3шт.

6

937782R92

HOSE,3.02mm ID x 787mm L

2шт.

7

1339231C1

TUBE,737 mm Length

1шт.

8

1339006C1

TUBE,914 mm L

2шт.

9

1339005C1

TUBE,1321 mm L

1шт.

10

121051A1

HOSE,3.17mm ID x 3302mm L

Grease

4шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

11шт.

13

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

11шт.

14

F53473

LOCK NUT,1/8-27 NPSM

Lubrication Hose

22шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

Lubrication Hose

3шт.

16

362666R1

CLIP

Lubrication Hose

4шт.

17

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

20

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

15шт.

21

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

Degree 90

5шт.

Выбрано товаров: 19
