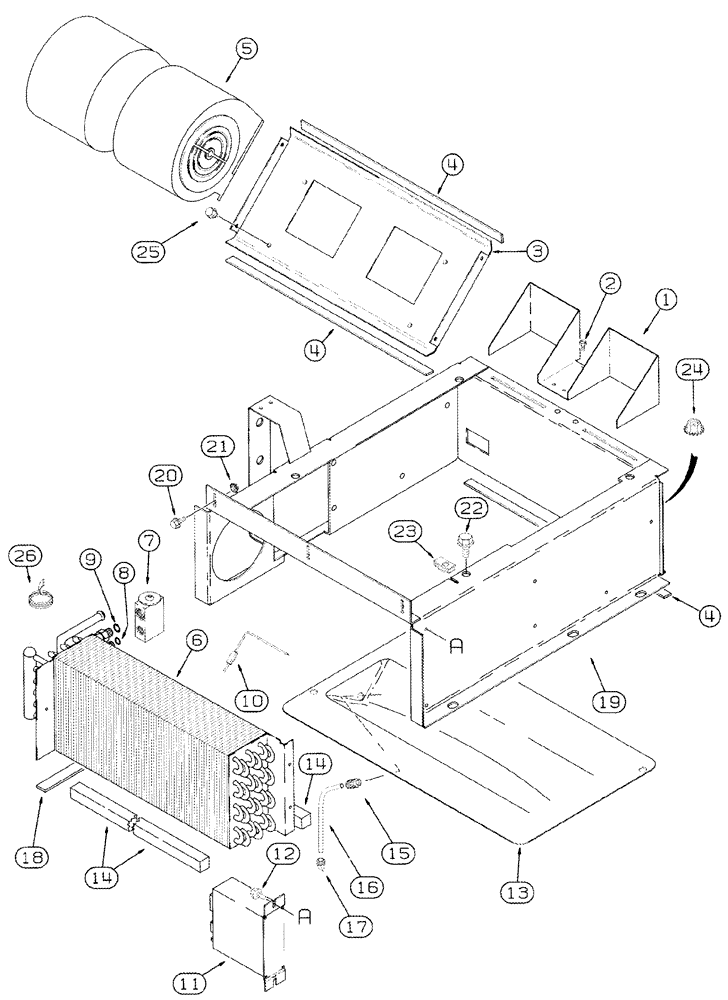

Запчасти Case IH 2555 (09E-19) - HEATER AIR CONDITIONING -JJC0157149 (10) - CAB & AIR CONDITIONING

*

Evaporator Heater Core and Blower Mounting

1шт.

1

178910A1

DEFLECTOR

1шт.

2

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

3

125066A1

PANEL

1шт.

4

1990257C1

SEALING STRIP

514 mm (20-1/4 in), Cut From 187874C2

3шт.

5

1977564C2

BLOWER

1шт.

5

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

5

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

5a

225257C1

PLUG

Not Illustrated

1шт.

121590A3

EVAPORATOR

Inc. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Core

1шт.

7

1990756C2

VALVE

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

10

184720A2

SENSOR

Temperature, Evaporator

1шт.

11

141178A4

CASE

No Longer Available, Order 239951A2, See Page(s) 9E-55

1шт.

13

121595A2

PAN

1шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in), Cut From 1971350C1

2шт.

15

1250522C3

FITTING

2шт.

16

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Cut from Bulk

2шт.

17

109239C2

CHECK VALVE

2шт.

18

1970536C1

SEAL

875 mm (34-1/2 in), Cut From 195917C1

1шт.

19

125875A4

SUPPORT

1шт.

20

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

3шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

786618C1

NUT

5/16

4шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

26

83822C1

TAPE

Cut From 1954475C1

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.
