Запчасти Case IH 2555 (09E-12) - SEAT, OPERATOR (10) - CAB & AIR CONDITIONING

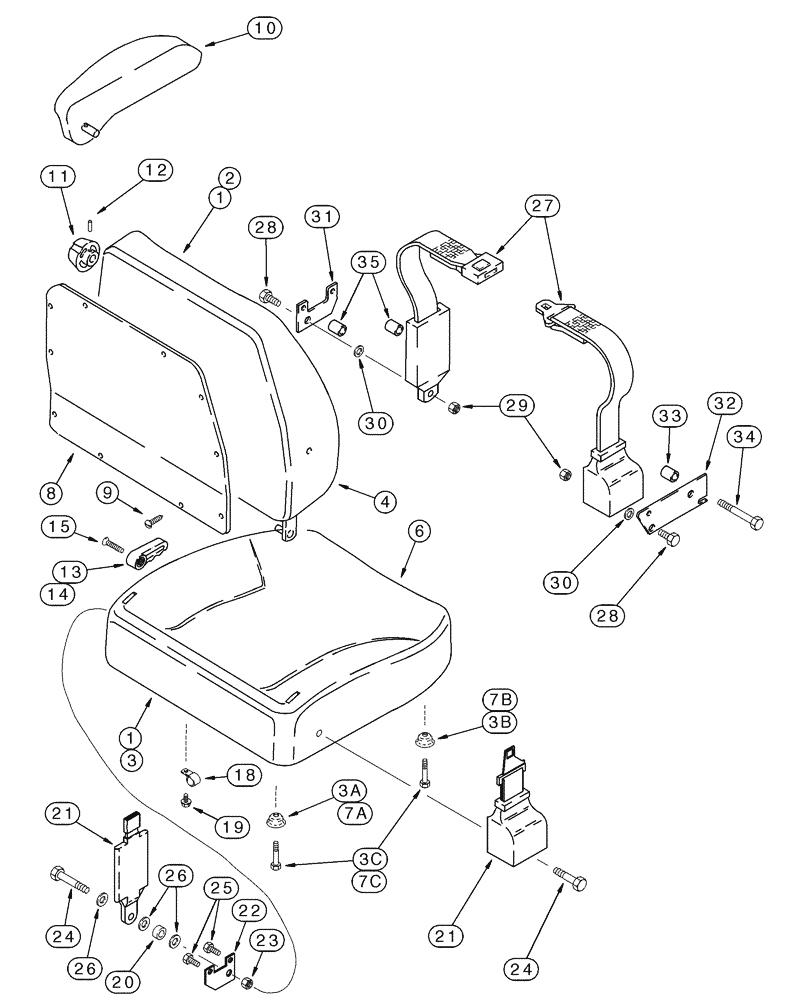

Схема запчастей Case IH 2555 - (09E-12) - SEAT, OPERATOR (10) - CAB & AIR CONDITIONING
23
24
3a
24
30
11
20
22
7b
3b
4
21
6
33
3
26
27
35
29
1
7c
1
28
34
30
13
9
28
26
7a
25
10
31
18
19
32
3c
14
12
21
8
15
2

Артикул

Название

Примечание

Количество

Air Suspension

1шт.

Cushions and Knobs

1шт.

180577A2

SEAT ASSY.

Consists Of 1 - 26, Includes Pages 9E-27 - 9E-41, -JJC0157149, No Longer Available, Order 180577A3

1шт.

180577A3

SEAT ASSY.

Consists Of 1 - 19, 27 - 35, Includes Pages 9E-27 - 9E-41, JJC0157150-

1шт.

1

134181A2

PACKAGE

Seat Cushion and Backrest, Without Armrest, Complete

1шт.

2

132886A1

BACKREST

Inc. Lumbar Knob, Without Armrest

1шт.

132888A2

PACKAGE

Seat Cushion, Inc. 3 - 3C

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion

1шт.

3a

187006A1

CUP

2шт.

3b

700711545

CUP WASHER

2шт.

3c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

132884A1

BACKREST

Backrest Pad, Inc. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Pad

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Not Illustrated

25шт.

223395A1

PACKAGE

Cushion, Seat, Inc. 6 - 7C

1шт.

6

NSS

NOT SOLD SEPARAT

Pad

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Not Illustrated

25шт.

7a

187006A1

CUP

2шт.

7b

700711545

CUP WASHER

2шт.

7c

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

Air Suspension

1шт.

Cushions and Knobs

1шт.

180577A2

SEAT ASSY.

-JJC0157149, Continued From Previous Page

1шт.

180577A3

SEAT ASSY.

-JJC0157150, Continued From Previous Page

1шт.

1974713C2

PACKAGE

Backrest Cover and Retainers, Consists Of 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Cover

1шт.

9

1999693C1

KIT

Package of 14

1шт.

10

1981818C1

ARMREST

Armrest, Left Hand

1шт.

1999691C1

PACKAGE,SERVICE

Seat Knob, Upper, Inc. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

Knob

1шт.

12

38-31016

PIN,5/32" x 1", Coiled

2шт.

13

NSS

NOT SOLD SEPARAT

Knob, Backrest Tilt

1шт.

14

NSS

NOT SOLD SEPARAT

Knob, Recliner

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

1шт.

16

NSS

NOT SOLD SEPARAT

Knob, Seat Tilt, Not Used In This Application, Not Illustrated

1шт.

17

NSS

NOT SOLD SEPARAT

Knob, Fore/Aft, Not Used In This Application, Not Illustrated

1шт.

18

NSS

NOT SOLD SEPARAT

Clamp

1шт.

19

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

1шт.

Air Suspension

1шт.

Cushions and Knobs

1шт.

-JJC0157149

1шт.

180577A2

SEAT ASSY.

Continued From Previous Page

1шт.

20

224368A1

SPACER,0.546" ID x 0.840" OD x 0.984" OAL

1шт.

21

224808A1

SAFETY BELT ,48mm W x 1219mm L

1шт.

22

224809A1

SUPPORT

1шт.

23

231-5447

FLANGE NUT,Flg, 7/16"-20

1шт.

24

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

25

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

26

495-81009

WASHER,.469" x 1" x .120"

, Start Serial: JJC0157150

3шт.

180577A3

SEAT ASSY.

Continued From Previous Page

1шт.

293563A1

PACKAGE

Seat Belt, Inc. 27 - 35

1шт.

27

279671A1

SAFETY BELT ,48.00 mm W

1шт.

28

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

29

231-5447

FLANGE NUT,Flg, 7/16"-20

2шт.

30

495-21044

WASHER,3/8"

2шт.

31

NSS

NOT SOLD SEPARAT

Bracket

1шт.

32

NSS

NOT SOLD SEPARAT

Bracket

1шт.

33

NSS

NOT SOLD SEPARAT

Spacer

1шт.

34

414-756

BOLT,Hex, 7/16" - 20 x 3-1/2", Gr 5

7/16 NF x 3-1/2

1шт.

35

NSS

NOT SOLD SEPARAT

Spacer

2шт.

176091A1

PACKAGE,SERVICE

Hog Ring, Package of 50

1шт.
