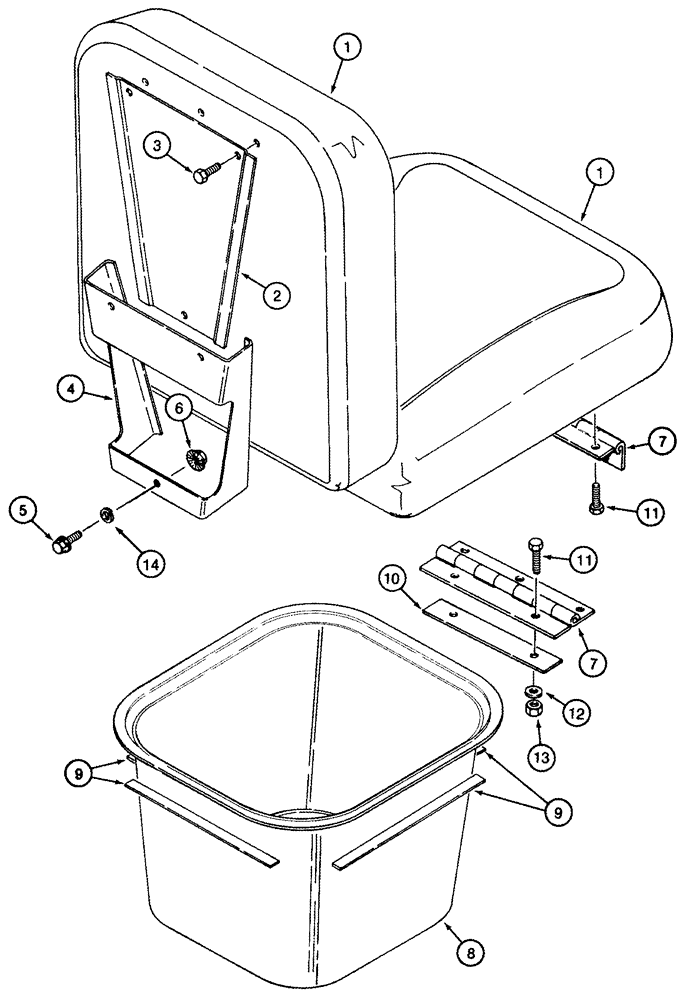

Запчасти Case IH 2555 (09E-10) - SEAT, BUDDY STORAGE TRAY (10) - CAB & AIR CONDITIONING

1

117418A2

CUSHION

2шт.

2

119890A1

SUPPORT

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

4

119891A1

SUPPORT

1шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

7

121062A1

HINGE

1шт.

8

119308A2

TRAY

1шт.

9

187783C1

SEALING STRIP

300 mm (11-13/16 in), Cut From 195917C2, If Used

4шт.

10

120568A1

PLATE

1шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

12

495-11028

WASHER,1/4", SAE

2шт.

13

425-104

NUT,1/4"-20, Cl 5

2шт.

14

492-11010

LOCK WASHER,#10

3шт.

5

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.
